  • Stock: Out Of Stock
  • Model: X299-PRO
  • SKU: TLG-002437
  • EAN: 4719072525989
Rs.22,199.00
Ex Tax: Rs.18,812.71

Msi x299 Pro Motherboard

Features

Inspired from architectural design with the extended heatsink for having better thermal solution; high speed USB 3.2 Gen2 x2 solution, Core Boost, DDR4 Boost, Dual LAN with 1x 2.5G LAN, Twin Turbo M.2 with M.2 Shield Frozr

  • Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4200+(OC)
  • Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
  • Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Set Core Power Free: Core Boost, 2x8 pin CPU power connector, Core Boost, DDR4 Boost
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
  • Dual LAN: Premium network solution included 1x 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Audio Boost 4: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™

Specifications


ProcessorSupports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066
ChipsetIntel® X299 Chipset
Memory
  • 8 x DDR4 memory slots, support up to 256GB
    • Supports DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz
  • Quad channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • Supports non-ECC UDIMM memory
  • Supports un-buffered memory
Slots
  • 4x PCIe 3.0 x16 slots
    • Support x16/x8/x16/x8 mode with the 48-lane CPU.
    • Support x16/x4/x16/x8 mode with the 44-lane CPU.
    • Support x16/x4/x8/x0 mode with the 28-lane CPU.
  1. Please refer to user manual for PCIe 3.0 bandwidth table.
Multi-GPU
  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
Storage

Intel® X299 Chipset

  • 6 x SATA 6Gb/s ports
  • 2 x M.2 slot (Key M)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready
  1. The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot.
  2. The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane.
  3. The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot.
  4. M2_2 supports Intel® Optane™ Memory by switching to PCH lanes.
RAID

Intel® X299 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB

ASMedia® ASM3242 Chipset

  • 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

ASMedia® ASM3142 Chipset

  • 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector

Intel® X299 Chipset

  • 8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
  • 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel I219-V Gigabit LAN controller
  • 1 x Realtek RTL8125-CG 2.5G LAN controller
  1. I219 LAN doesn’t support G3 to S5 Wake
Internal connectors
  • 1 x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 1x USB 3.2 Gen2 Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Virtual RAID on CPU connector
  • 1x Thunderbolt Add-on Card Connector

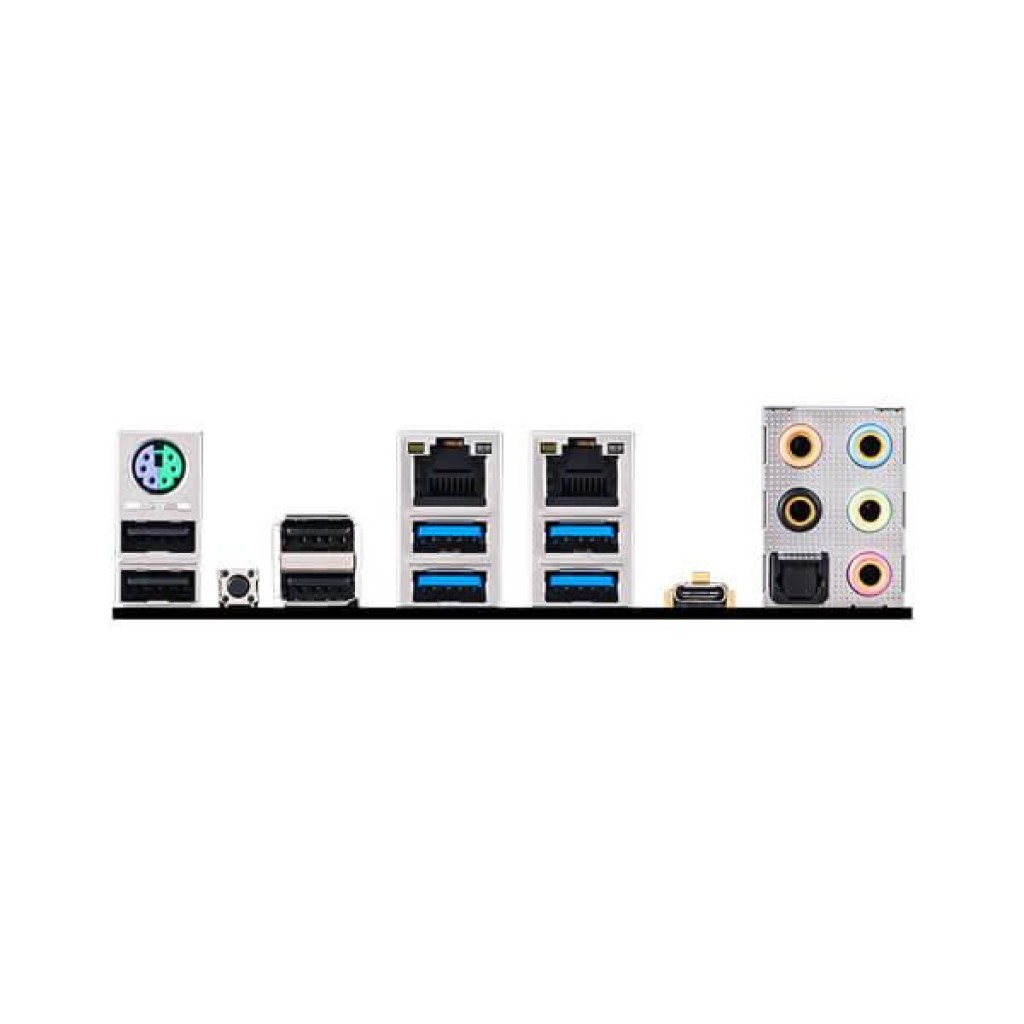

Back panel ports
  1. Keyboard / Mouse
  2. Gigabit LAN
  3. 2.5G LAN
  4. Audio Connectors
  5. USB 2.0
  6. Clear CMOS Button
  7. USB 2.0
  8. USB 3.2 Gen1 Type-A
  9. USB 3.2 Gen1 Type-A
  10. USB 3.2 Gen2x2 20G Type-C
  11. Optical S/PDIF out
Dimensions
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
Mounting9 mounting holes
Operating SystemSupport for Windows® 10 64-bit
Warrantty3 Years
Technical
CHIPSETX299
