Msi B650 Gaming Plus Wifi Motherboard

Msi B650 Gaming Plus Wifi Motherboard
Msi B650 Gaming Plus Wifi Motherboard
FREE SHIPPING -10 %
Msi B650 Gaming Plus Wifi Motherboard
Msi B650 Gaming Plus Wifi Motherboard
Msi B650 Gaming Plus Wifi Motherboard
  • Stock: In Stock
  • Model: B650-GAMING-PLUS-WIFI
  • SKU: TLG-004183
  • UPC: 824142324080
  • EAN: 824142324080
  • MPN: B650-GAMING-PLUS-WIFI
Rs.16,149.00
Rs.17,999.00
Ex Tax: Rs.13,685.59

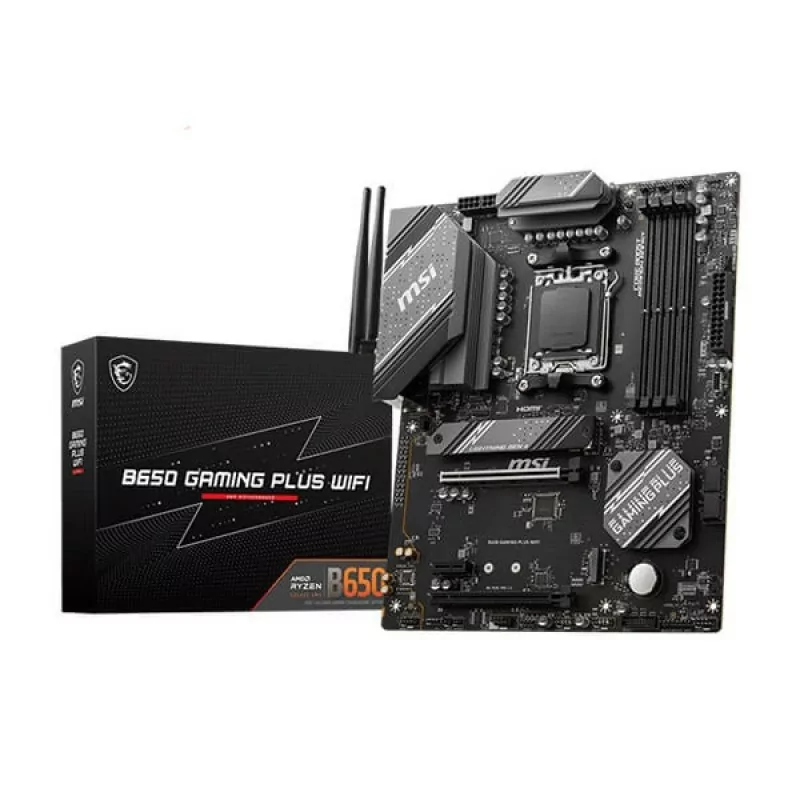

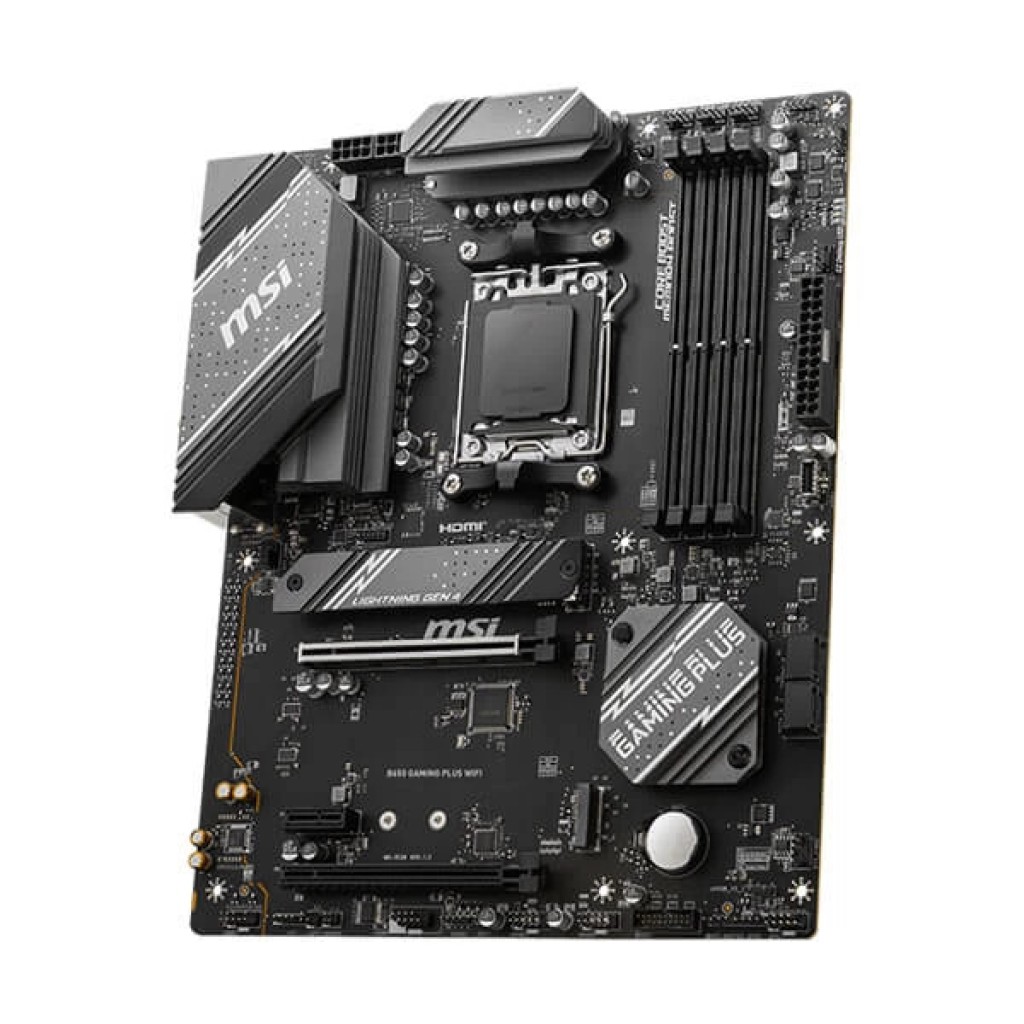

MSI B650 GAMING PLUS WIFI Motherboard

MSI B650 GAMING PLUS WIFI: Feature-packed Motherboard for Gamers

The MSI B650 GAMING PLUS WIFI is an ATX motherboard designed for gamers seeking a balance of performance, features, and affordability. It supports the latest AMD Ryzen 7000 series processors and boasts several key features:

  • Robust Power Delivery: Equipped with a 12+2+1 phase digital power design and dual 8-pin CPU power connectors, it ensures stable power delivery for even the most demanding games.
  • Fast Memory and Storage: Supports DDR5 memory with overclocking speeds of up to 6000MHz (OC) and features a PCIe 4.0 x4 M.2 slot with M.2 Shield Frozr for lightning-fast storage and system responsiveness.
  • Enhanced Cooling: An extended heatsink, M.2 Shield Frozr, and high-quality thermal pads provide efficient cooling for sustained performance.
  • Advanced Networking: Integrated 2.5G LAN and Wi-Fi 6E offer high-speed and reliable wired and wireless connectivity for lag-free online gaming.
  • Multiple Connectivity Options: Provides a variety of USB ports, including USB 3.2 Gen 2x2 20Gbps Type-C, for connecting various peripherals.
  • Immersive Audio: Features Audio Boost technology with dedicated audio processors for high-fidelity sound quality.

Overall, the MSI B650 GAMING PLUS WIFI is a well-rounded motherboard that offers strong performance, essential features for gamers, and a reasonable price point. It's a suitable choice for building a mid-range to high-end AMD Ryzen 7000 series gaming PC.

Features:

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are built for high-performance system and non-stop work
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection
  • High-Quality PCB: 6-layer PCB made of 2oz thickened copper
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience


Specification:

ModelB650 GAMING PLUS WIFI
ChipsetAMD B650
CPU SUPPORTSupports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

Onboard Graphics1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz
EXPANSION SLOT2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPUAMD MULTI-GPU Support
Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAIDSupports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LANRealtek® 8125BG 2.5G LAN
WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3

AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED FEATURE4x EZ Debug LED
BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)ATX
243.84mmx304.8mm
Warranty3 Years


Check out our list of RAM (Memory) collections to use with this Motherboard.

Click Here

General
LAUNCH YEARJuly 3, 2023
Memory192 GB MAX MEMORY
MODELB650-GAMING-PLUS-WIFI
SERIESGAMING PLUS
WARRANTY3 Years
Technical
Form FactorATX
CHIPSETB650
Slot2x PCI-E x16 slot, 1x PCI-E x1 slot
SocketAM5
