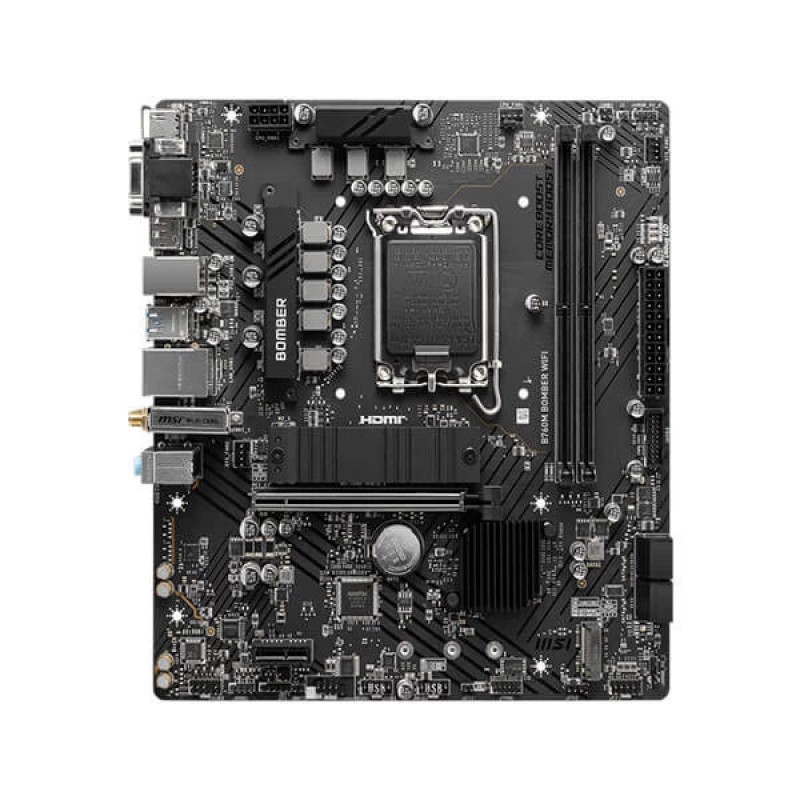

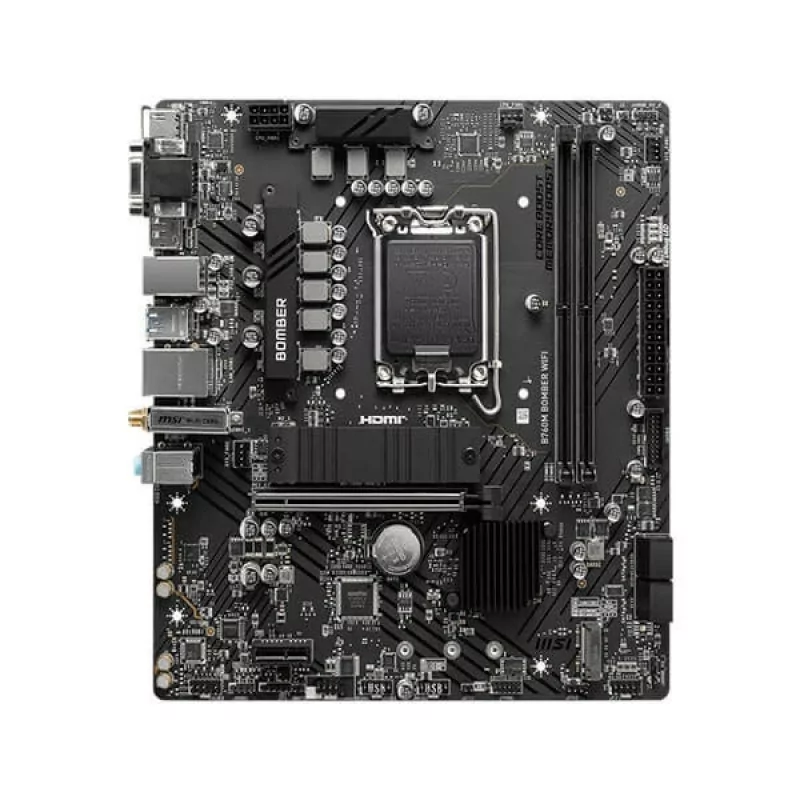

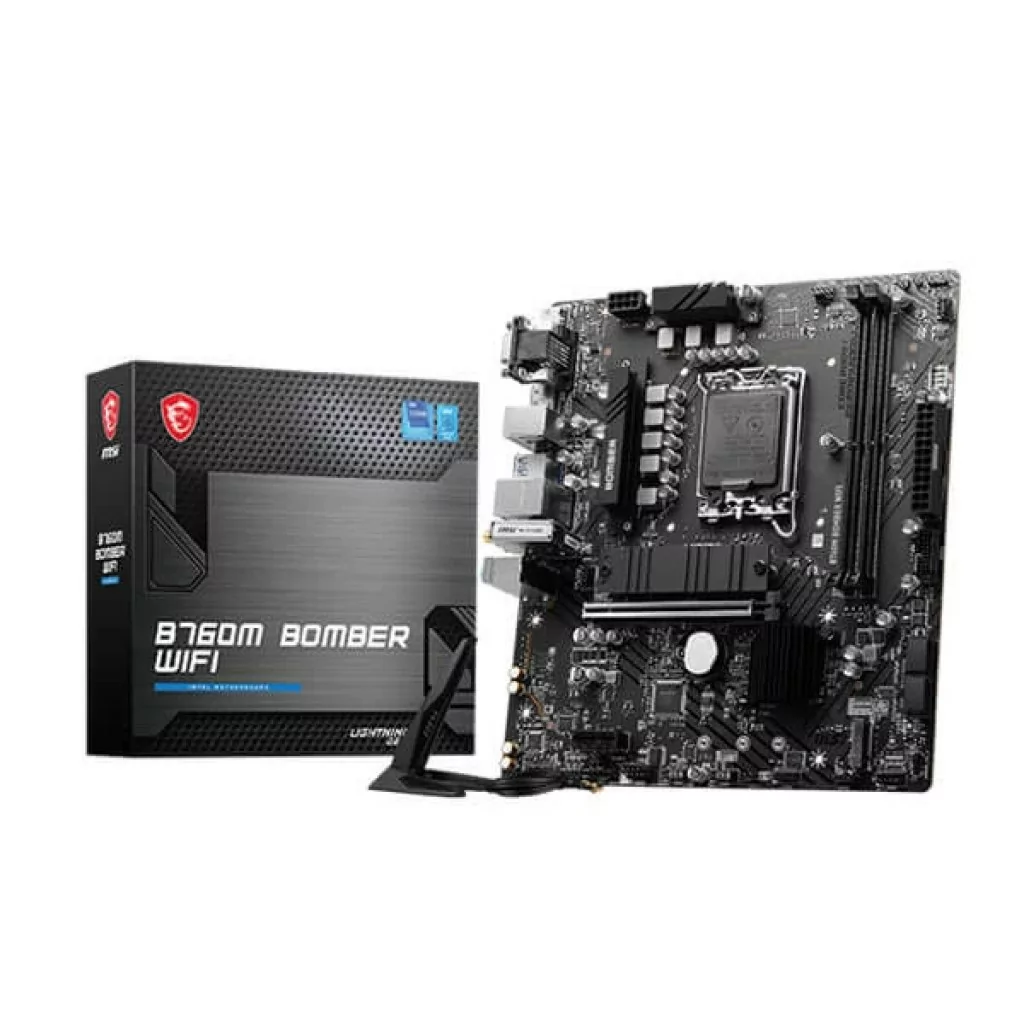

MSI B760M Bomber WIFI DDR5 Gaming Motherboard
The motherboard has a PCIe 4.0 x16 slot for graphics cards, as well as two PCIe 3.0 x1 slots for other expansion cards. It also has four SATA III ports for storage devices, as well as an M.2 slot with PCIe 4.0 x4 support for NVMe SSDs.
Networking is provided by a 2.5G LAN port and Wi-Fi 6E, while other features include six USB 3.2 Gen 2 ports, two USB 2.0 ports, and an audio jack. The motherboard also has an RGB LED header for connecting RGB LED strips.
Overall, the MSI B760M Bomber WIFI DDR5 is a good option for budget-minded gamers and builders who want a motherboard with support for the latest Intel processors and DDR5 memory. However, it is important to note that the motherboard is micro-ATX, so it will not fit in all cases. Additionally, the motherboard only has one PCIe 4.0 x16 slot, so it is not ideal for users who want to run multiple high-end graphics cards.
Key Features:
- Supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection
- AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength
Specification:
| Model | B760M BOMBER WIFI |
| Chipset | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency:
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| EXPANSION SLOT | 1x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| Storage | 2x M.2 (Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type A |
| LAN | Realtek RTL8125B 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel Wi-Fi 6E Supports Bluetooth 5.3, FIPS, FISMA |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O |
|
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Dimension (W × L) | mATX 220mmx243.84mm |
| Warranty | 3 Years |
Check out our list of RAM (Memory) collections to use with this Motherboard.
| General | |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory |
| WARRANTY | 3 Years |
| Technical | |
| CHIPSET | INTEL B760 |
| Form Factor | mATX |
| Graphics | 1x HDMI™, 1x DisplayPort, 1x D-Sub |
| Slot | 1x PCI-E x16, 1x PCI-E x1 |
| Socket | LGA 1700 |
