Msi B650M Gaming Plus Wifi

Msi B650M Gaming Plus Wifi
Msi B650M Gaming Plus Wifi
New FREE SHIPPING -21 %
Msi B650M Gaming Plus Wifi
Msi B650M Gaming Plus Wifi
Msi B650M Gaming Plus Wifi
  • Stock: In Stock
  • Model: B650M-GAMING-PLUS-WIFI
  • SKU: TLG-004275
Rs.15,099.00
Rs.18,999.00
Ex Tax: Rs.12,795.76

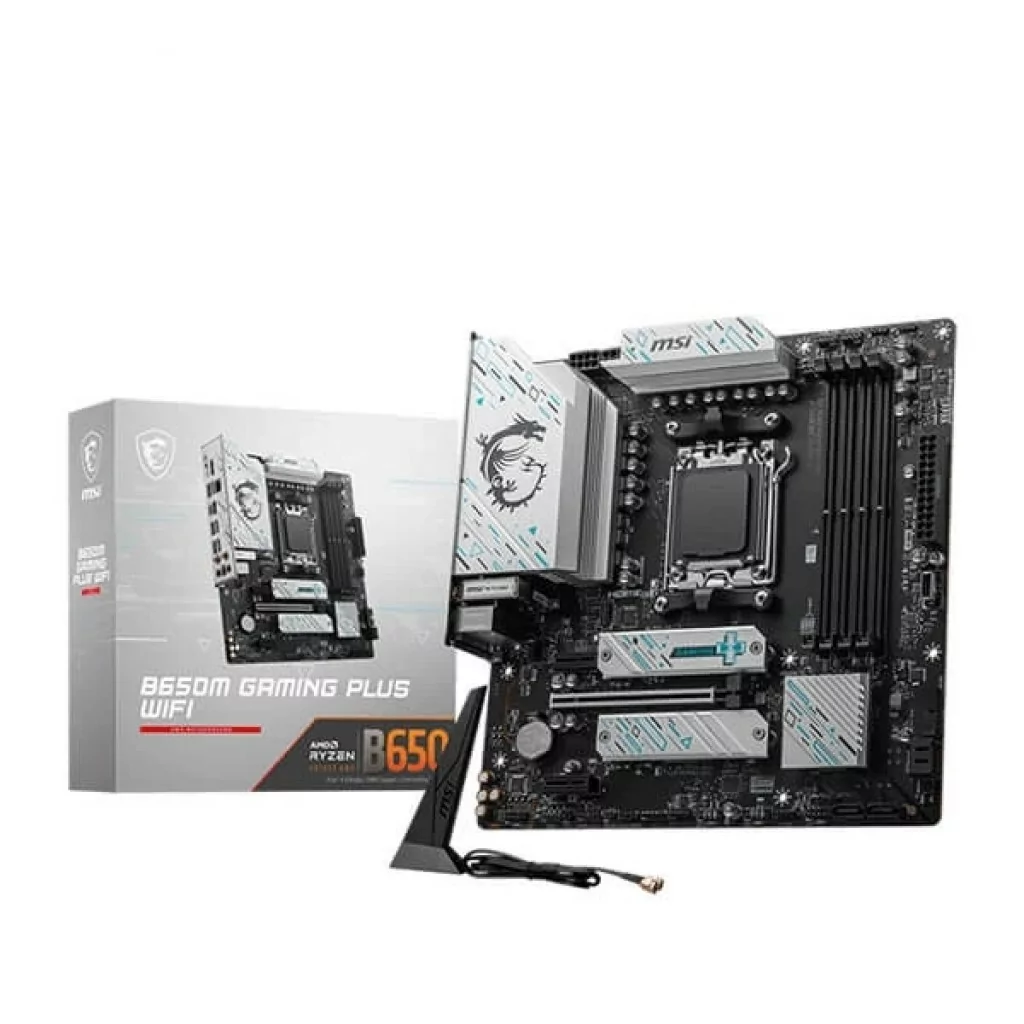

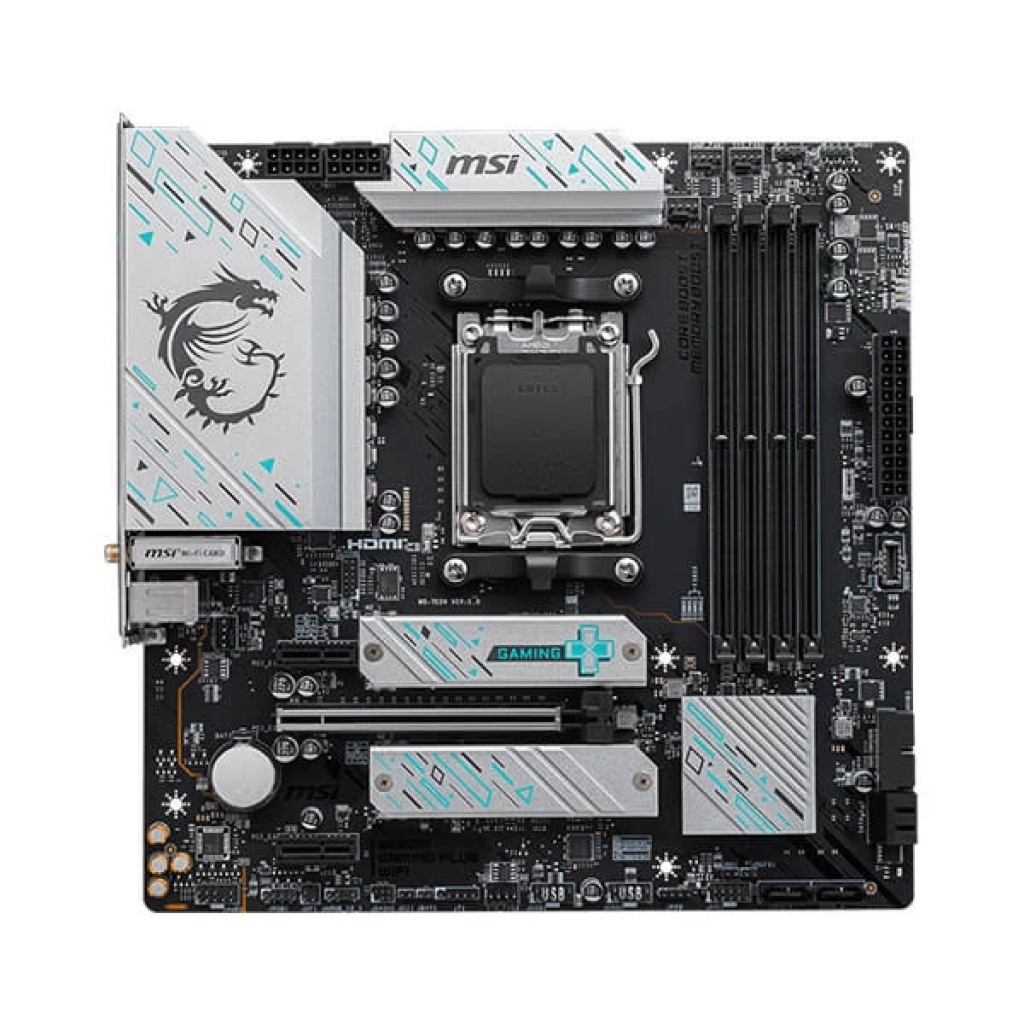

MSI B650M Plus Gaming WIFI Micro ATX Motherboard

Specification:


ModelB650M GAMING PLUS WIFI
ChipsetAMD B650
CPUSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics
  • 1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

  • 1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot1x PCI-E x16 slot
  • Supports x16 (For Ryzen™ 7000 Series processors)
  • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
  • Supports x4 (For Ryzen™ 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
  • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
LANRealtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 3x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED FEATURE4x EZ Debug LED
BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • Audio connectors
OPERATING SYSTEMSupport for Windows 11 64-bit, Windows 10 64-bit
PCB InfomATX
243.84mmx243.84mm
Warranty3 Years
Technical
CHIPSETB650
