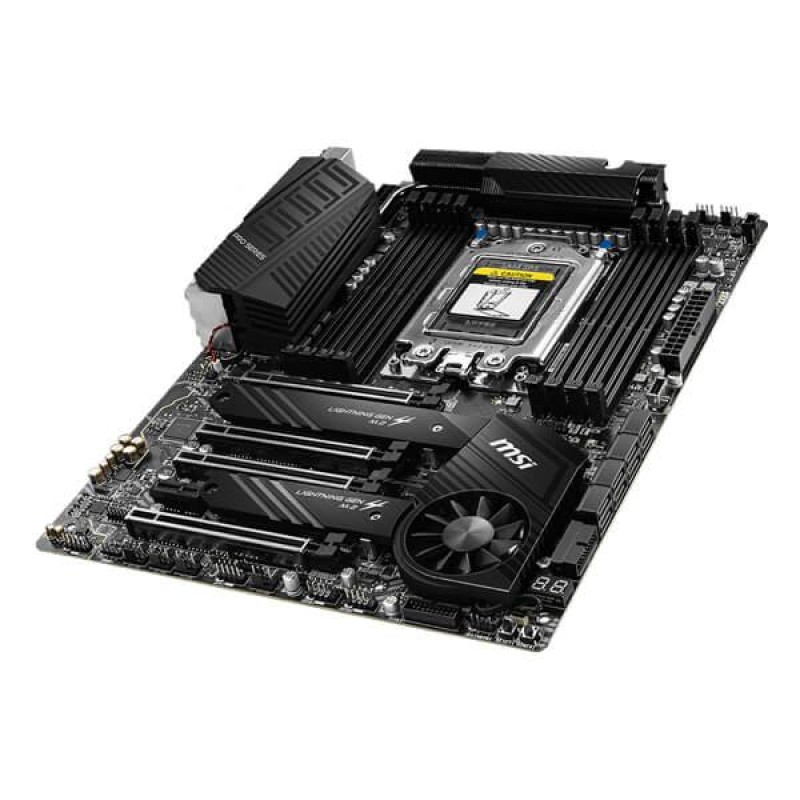

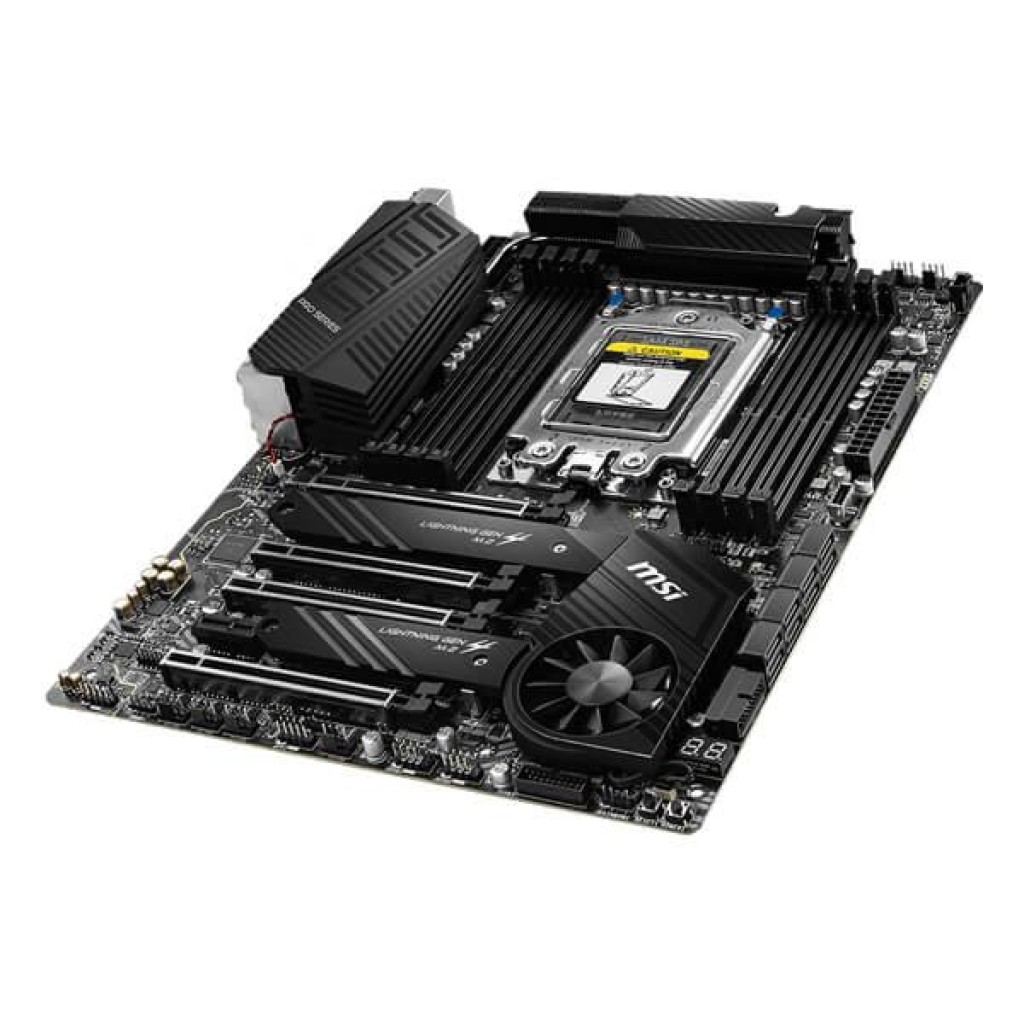

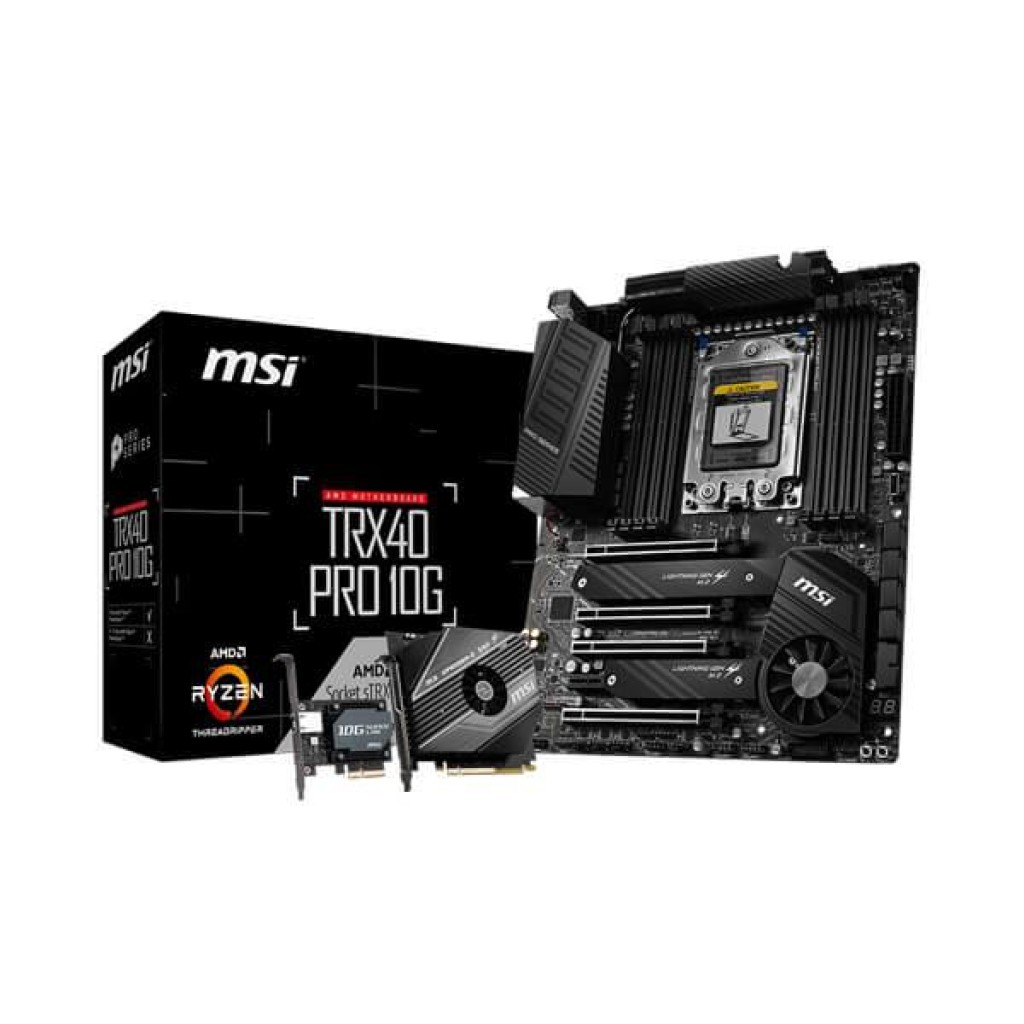

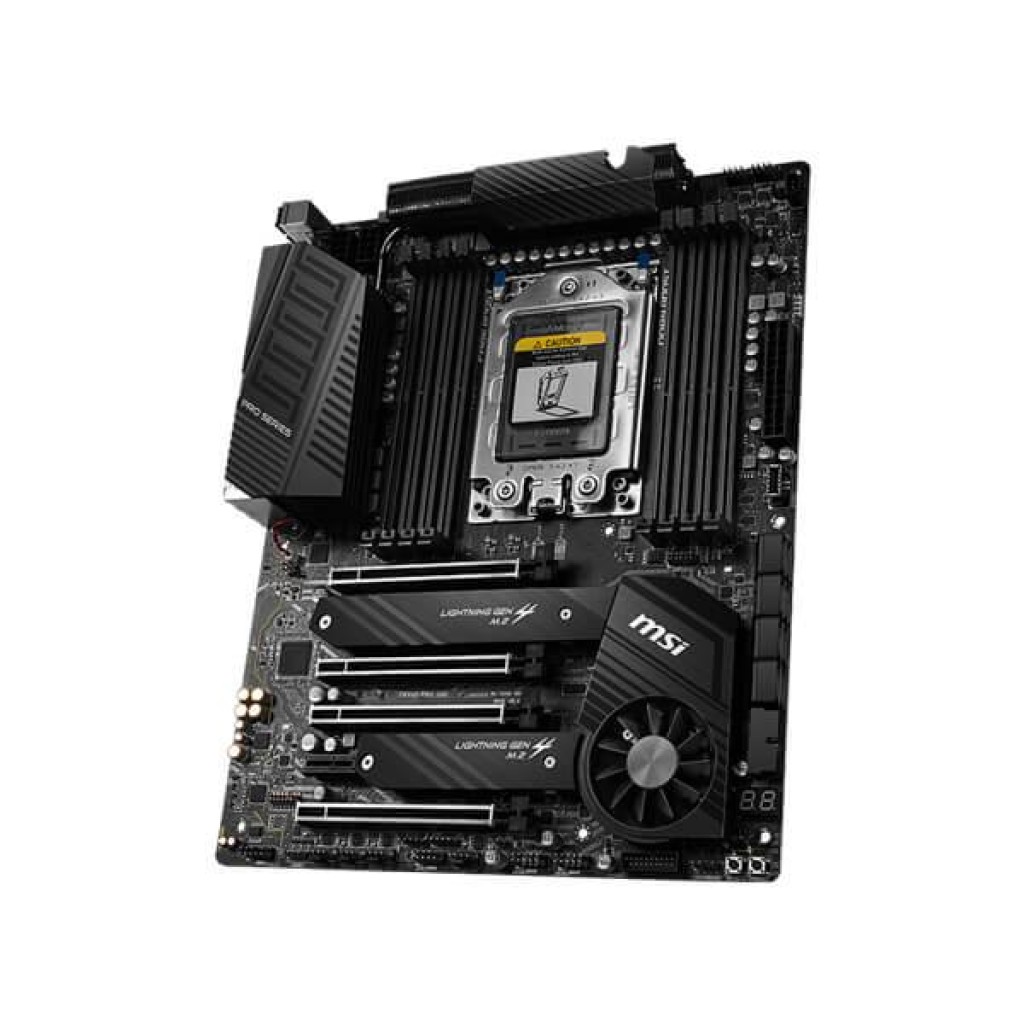

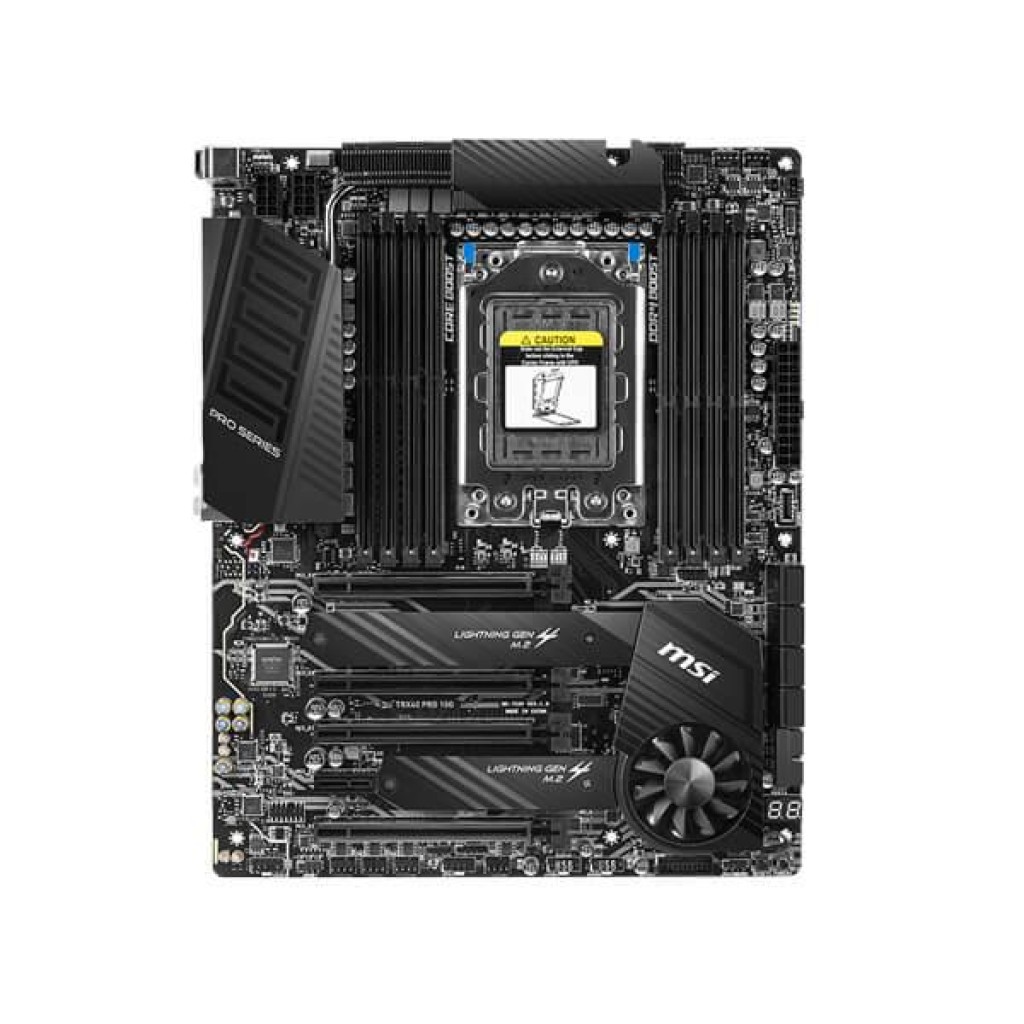

Msi TRX40 Pro 10G Motherboard

Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
Out Of Stock
Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
Msi TRX40 Pro 10G Motherboard
  • Stock: Out Of Stock
  • Model: TRX40-PRO-10G
  • SKU: TLG-002432
  • EAN: 4719072685072
Rs.47,499.00
Ex Tax: Rs.40,253.39

Msi TRX40 Pro 10G Motherboard

Features

Inspired from architectural design with the extended heatsink for having better thermal solution; PCIe gen4 slots and M.2 connectors, high speed USB 3.2 Gen2x2 solution, Core Boost, DDR4 Boost, 10G LAN card, Dual LAN onboard, Frozr Heatsink Design, Twin Lightning Gen4 M.2 with M.2 Shield Frozr, M.2 Xpnader-Z Gen4.

  • Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz
  • Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
  • Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12+3 digital power phases, dual 8 pin CPU power connectors, DDR4 Boost
  • Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
  • Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.
  • M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
  • Dual LAN onboard: Premium network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • 10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency.
  • Audio Boost 4: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire

Specifications


Processor3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors
ChipsetAMD® TRX40 Chipset
Memory
  • 8x DDR4 memory slots, support up to 256G
  • Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
    • 1DPC 1R max speed 4666 MHz
    • 1DPC 2R max speed 4000 MHz
    • 2DPC 1R max speed 4000 MHz
    • 2DPC 2R max speed 3600 MHz
  • Quad channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
Slots
  • 4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
  • 1 x PCIe 3.0 x1 slot
Multi-GPU
  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMDA® CrossFire™ Technology
Storage
  • 8x SATA 6Gb/s ports
  • 2x M.2 slot (M2_3, Key M)
    • Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  • 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor
  • 2x M.2 slots (M2_1 & M2_2, Key M)
    • M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
    • M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
RAIDSupports RAID 0, RAID 1 and RAID 10
USB
  • 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
  • 6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
  • 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
  • 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
  • 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel
Audio
  • 1x Realtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
  • 1x Realtek® ALC4050H Codec
    • Supports front & rear panel Mic-in
    • Supports S/PDIF output
LAN2 x Intel® I211AT Gigabit LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 8x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump Fan connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin 5050 RGB LED connector
  • 2x 3-pin ARGB LED connectors
  • 1x 3-pin CORSAIR LED connector
  • 1x Slow mode booting jumper
  • 1x Power button
  • 1x Reset button

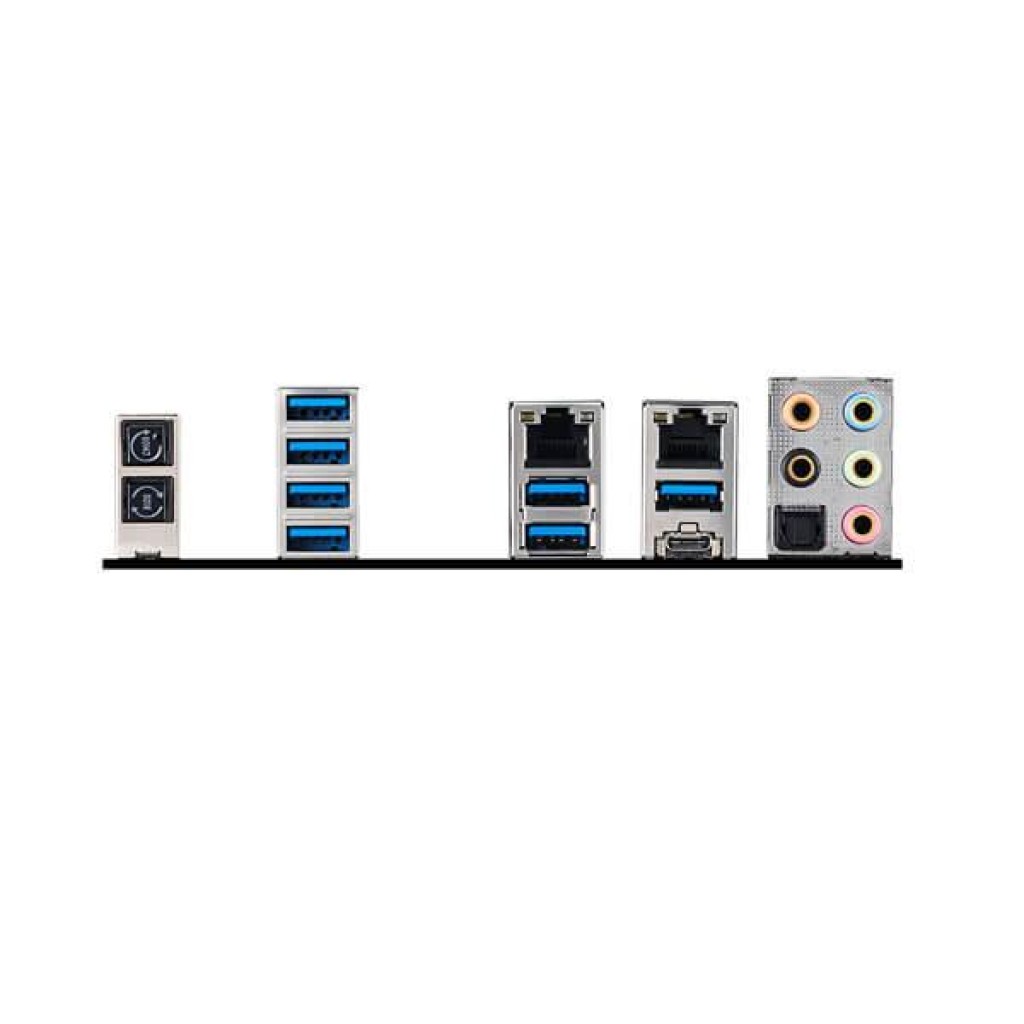

Back panel ports
  1. Clear CMOS Button
  2. USB 3.2 Gen1 Type-A
  3. Gigabit LAN
  4. Gigabit LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. USB 3.2 Gen2 Type-A
  8. USB 3.2 Gen2x2 20G Type-C
  9. Optical S/PDIF out
Dimensions
  • 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
  • ATX Form Factor
Operating SystemSupport for Windows® 10 64-bit
Mounting9 mounting holes
Warranty3 Years
Technical
CHIPSETTRX40
