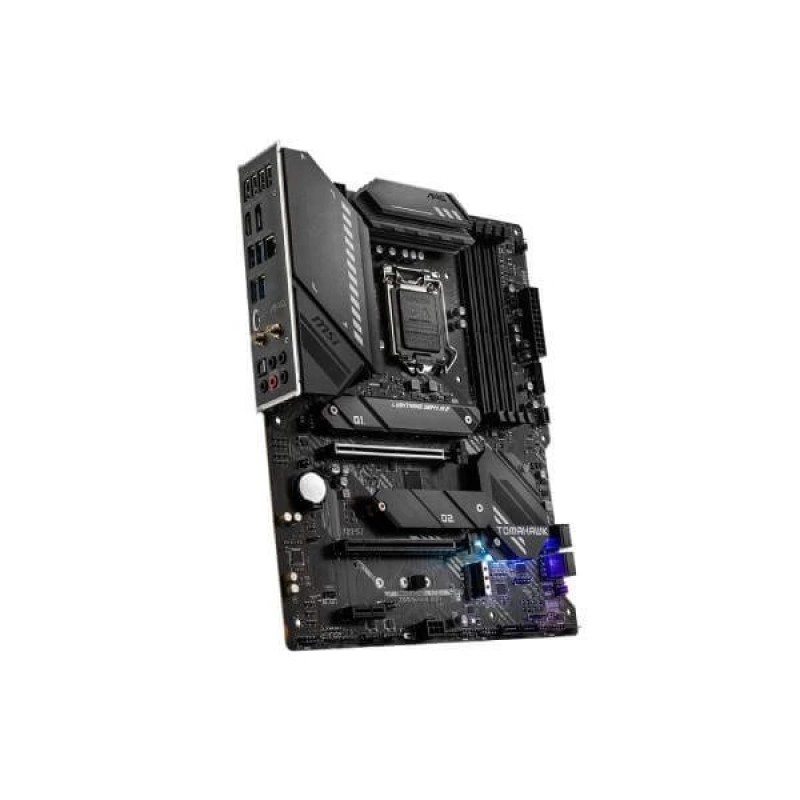

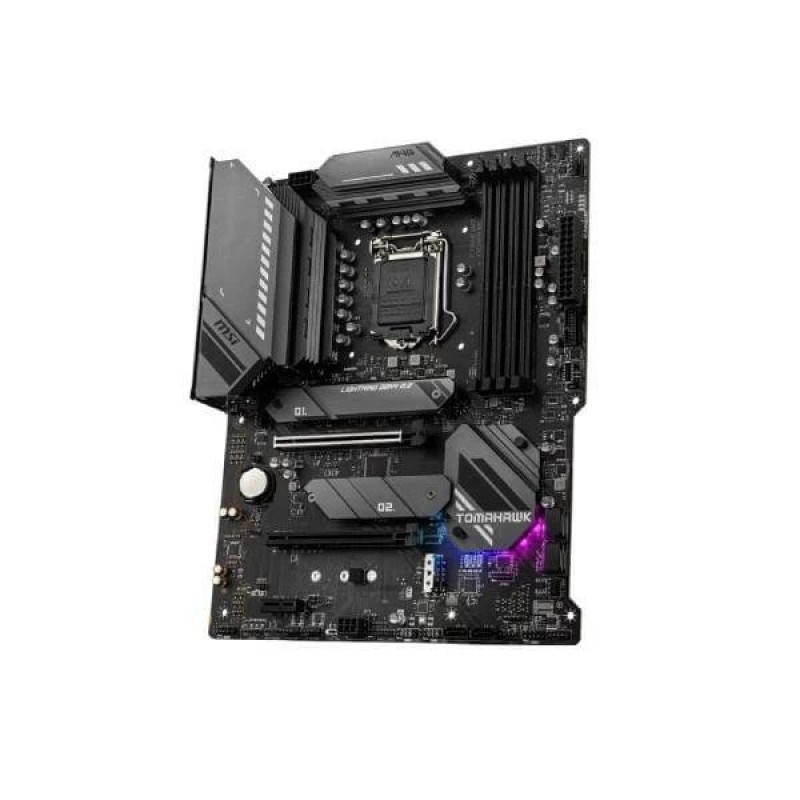

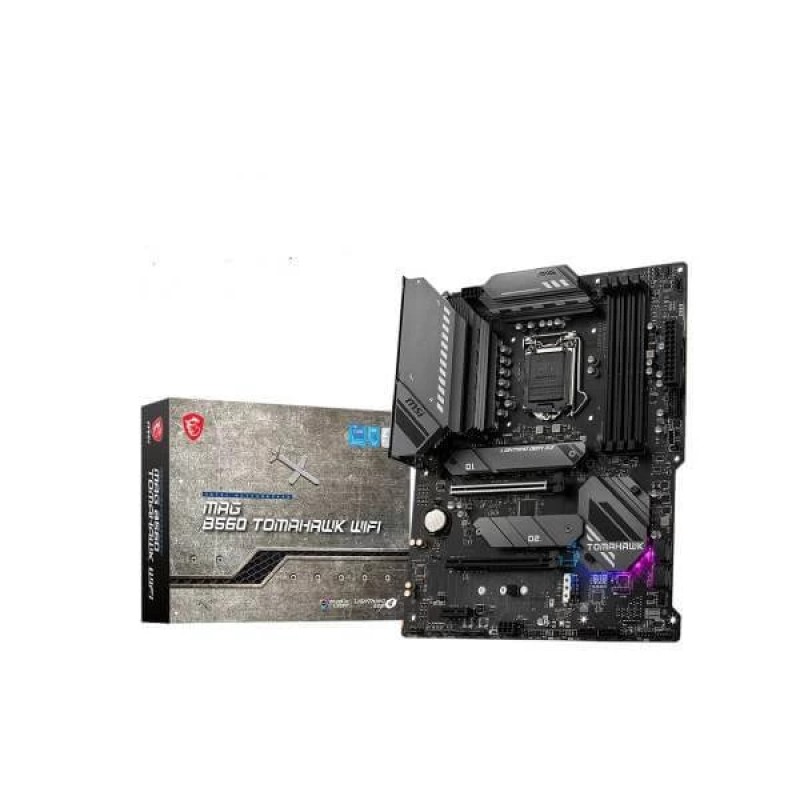

Msi MAG B560 Tomahawk WIFI Motherboard

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron®

Processor socket LGA1200

• 4 x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5066 MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4266+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

• 2x PCIe x16 slots

1. PCI_E1 (from CPU)
1. Support up to PCIe 4.0 for 11th Gen Intel® CPU
2. Support up to PCIe 3.0 for 10th Gen Intel ® CPU
2. PCI_E2 (from B560 chipset)
1. Support up to PCIe 3.0 x4

• 1x PCIe 3.0 x1 slot (from B560 chipset)

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
1. Available only on processors featuring integrated graphics
2. Graphics specifications may vary depending on the CPU installed.

• 6x SATA 6Gb/s ports (from B560 chipset)
• 3x M.2 slots (Key M)
  • M2_1 slot (from CPU)
    1. Available only on 11th Gen Intel® CPU
    2. Supports up to PCIe 4.0 x4
    3. Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from B560 chipset)
    1. Supports up to PCIe 3.0 x4
    2. Supports SATA up to 6Gb/s
    3. Supports 2242/ 2260/ 2280 storage devices
  • M2_3 slot (from B560 chipset)
    1. Supports up to PCIe 3.0 x4
    2. Supports 2242/ 2260/ 2280 storage devices
    3. Intel® Optane™ Memory Ready
  • Supports Intel® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Intel® B560 Chipset

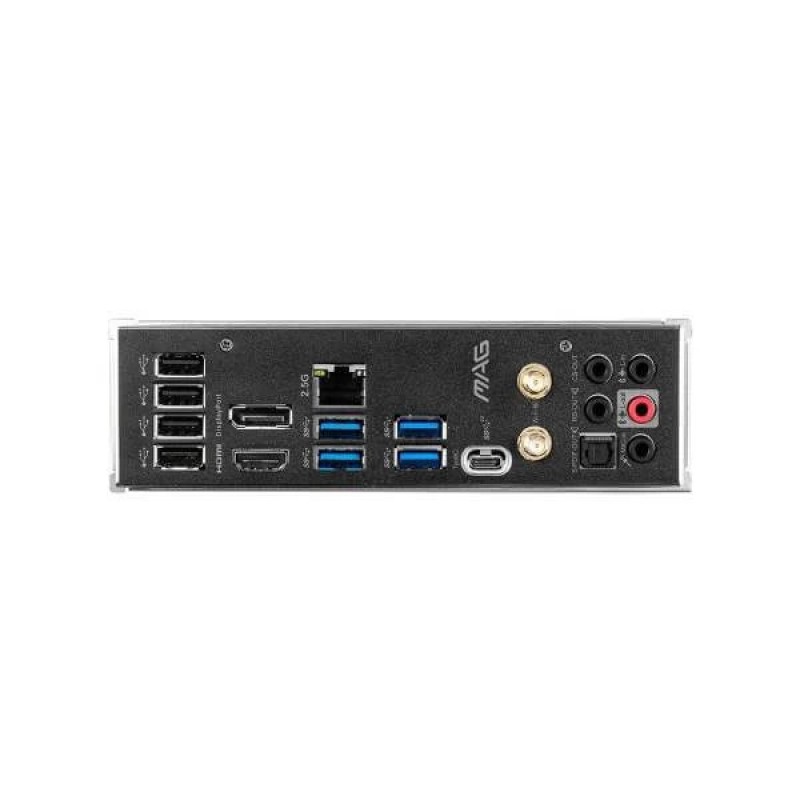

• 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
• 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
• 4x USB 2.0 ports on the back panel

Hub-GL850G

• 4x USB 2.0 ports available through the internal connectors

Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

Intel®Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 [Key-E] slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.2, FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.

• 1x EZ LED Control switch
• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED
