Msi Creator TRX40 (Wi-Fi) Motherboard

Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
Out Of Stock
Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
Msi Creator TRX40 (Wi-Fi) Motherboard
  • Stock: Out Of Stock
  • Model: CREATOR-TRX40
  • SKU: TLG-002431
Rs.65,999.00
Ex Tax: Rs.55,931.36

Msi Creator TRX40 (Wi-Fi) Motherboard for AMD's 3rd generation of threadripper Processors.


Features

Unique look and feel inspired by the craft of crystal for all Creators. Features the latest PCIe gen4 slots and M.2 connectors, USB3.2 Gen2x2, 10G LAN and Wi-Fi 6, Frozr Heatsink Design, Triple Lightning Gen4 M.2 with double-sided M.2 Shield Frozr, Core Boost, Audio Boost 4 with Nahimic, M.2 Xpander-Aero Gen4 card, Mystic Light.

  • Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4666(OC)
  • More Powerful than Enough: dedicate 16 phases 70A digital power to CPU, with All Aluminum Design
  • More Efficency for Data Transfer: 10G LAN + Intel® Gigabit LAN with Intel® WIFI 6 and bandwidth management
  • More Compatibility for Storage: 7 x Lightning Gen4 M.2 with M.2 XPANDER-AERO GEN4
  • More Flexibility for Temperature Control: Full fan control with 9 PWM fan headers and 3 dedicated thermal sensor
  • Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with double-sided M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
  • Set Core Power Free: Extended Heatsink and Heat-pipe Design, stacked fin array, Core Boost, Digital PWM IC, dual 8 pin CPU power connectors, DDR4 Boost
  • Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for creators and prosumers.
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Rainbow and Corsair LED strip
  • Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel Armor PCI-E slots. Supports up to 3-Way NVIDIA SLI & 3-Way AMD Crossfire

Specifications

Processor3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors
ChipsetAMD® TRX40 Chipset
Memory
  • 8x DDR4 memory slots, support up to 256G
  • Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
    • 1DPC 1R max speed 4666 MHz
    • 1DPC 2R max speed 4000 MHz
    • 2DPC 1R max speed 4000 MHz
    • 2DPC 2R max speed 3600 MHz
  • Quad channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
Slots4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
Multi-GPU
  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMDA® CrossFire™ Technology
Storage
  • 6x SATA 6Gb/s ports
  • 1x M.2 slot (M2_3, Key M)
    • Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  • 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor
  • 2x M.2 slots (M2_1 & M2_2, Key M)
    • M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
    • M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
RAIDSupports RAID 0, RAID 1 and RAID 10
USB
  • 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
  • 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
  • 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
  • 4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
Audio
  • 1x Realtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
  • 1x Realtek® ALC4050H Codec
    • Supports front & rear panel Mic-in
    • Supports S/PDIF output
LAN
  • 1x Intel® I211AT Gigabit LAN controller
  • 1x Aquantia® AQC107 10-Gigabit LAN controller
WirelessIntel® Wi-Fi 6 AX200
  • The Wireless module is pre-install in the M2_4 (Key-E) slot
  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz- 5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin pump fan connector (supports up to 2A)
  • 4x 4-pin system fan connectors
  • 3x 4-pin extend fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 3x 2-pin Thermal Sensors connectors
  • 1x 4-pin 5050 RGB LED connector
  • 2x 3-pin ARGB LED connectors
  • 1x 3-pin CORSAIR LED connector
  • 1x LED demo connector
  • 1x JBLK_U pin header
  • 1x JBLK_D pin header
  • 1x OC retry pin header
  • 1x OC force enter pin header
  • 1x Slow mode booting jumper

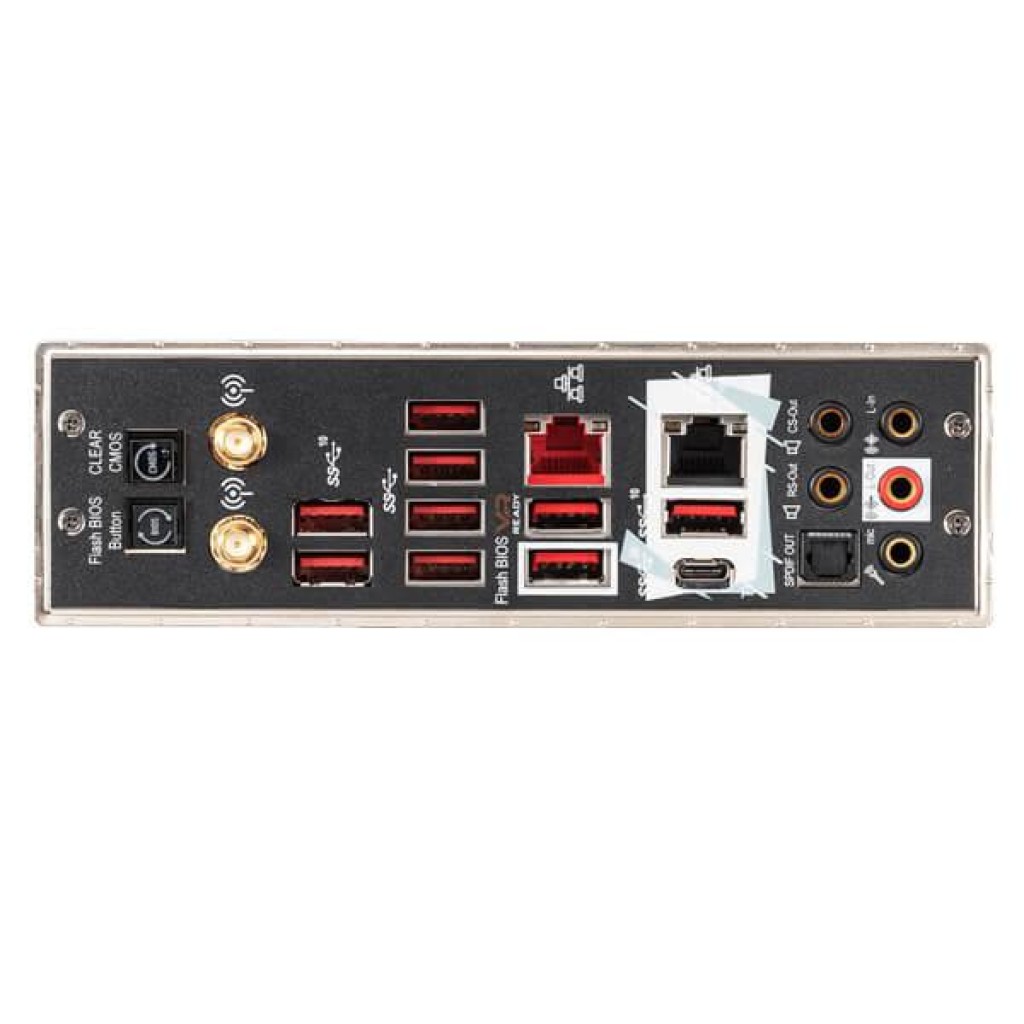

Back panel ports
  1. Clear CMOS Button
  2. Wireless / Bluetooth
  3. Gigabit LAN
  4. 10G LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. USB 3.2 Gen2 Type-A
  8. USB 3.2 Gen1 Type-A
  9. USB 3.2 Gen2 Type-A
  10. USB 3.2 Gen2x2 20G Type-C
  11. USB 3.2 Gen1 Type-A
Form Factor
  • E-ATX Form Factor
  • 12 in. x 10.9 in. (30.4 cm x 27.7 cm)
Warranty3 Years

Technical
CHIPSETTRX40
