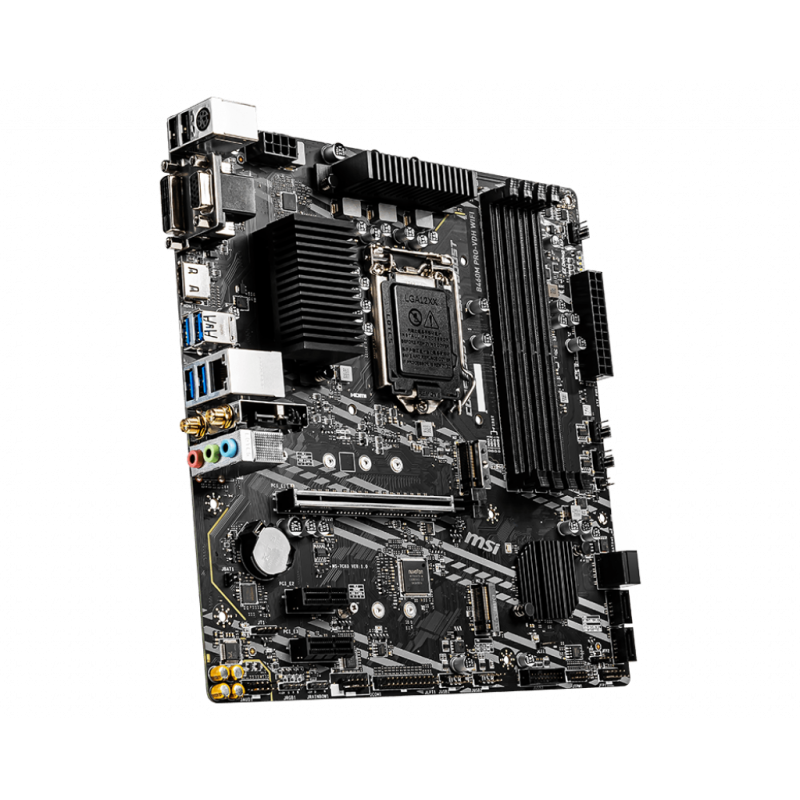

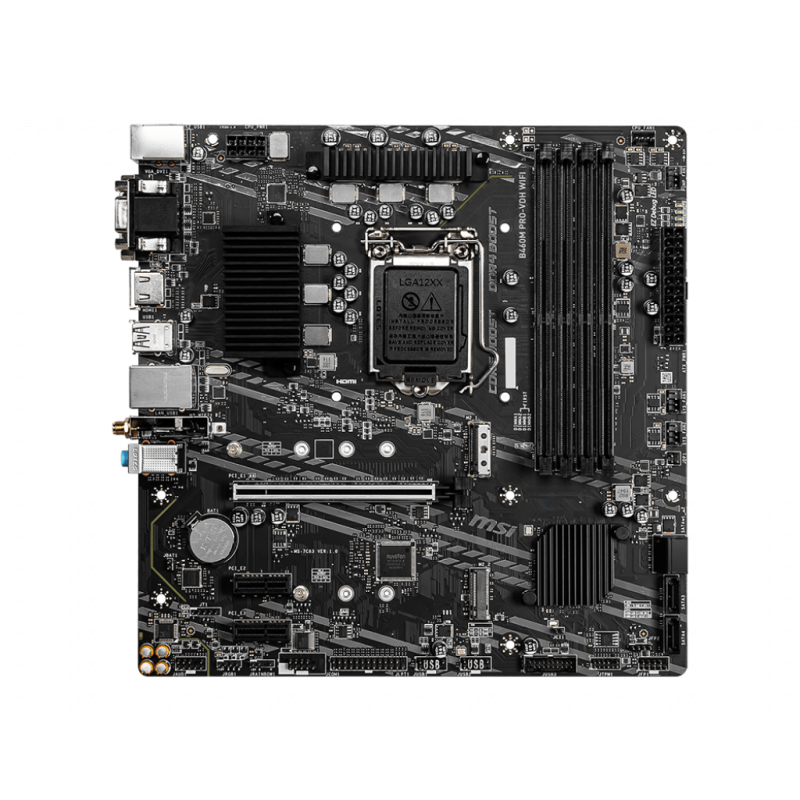

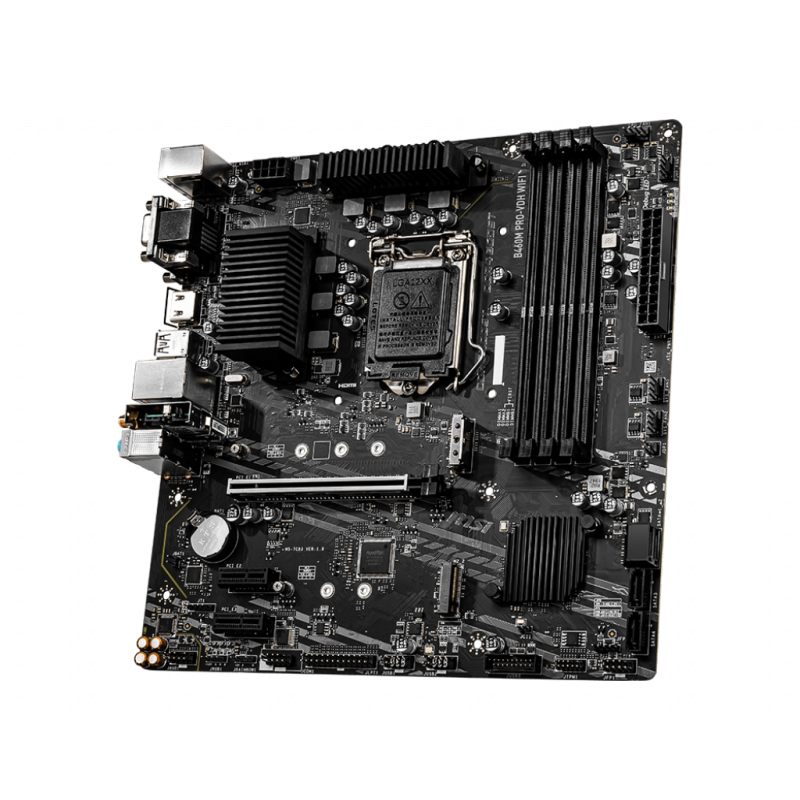

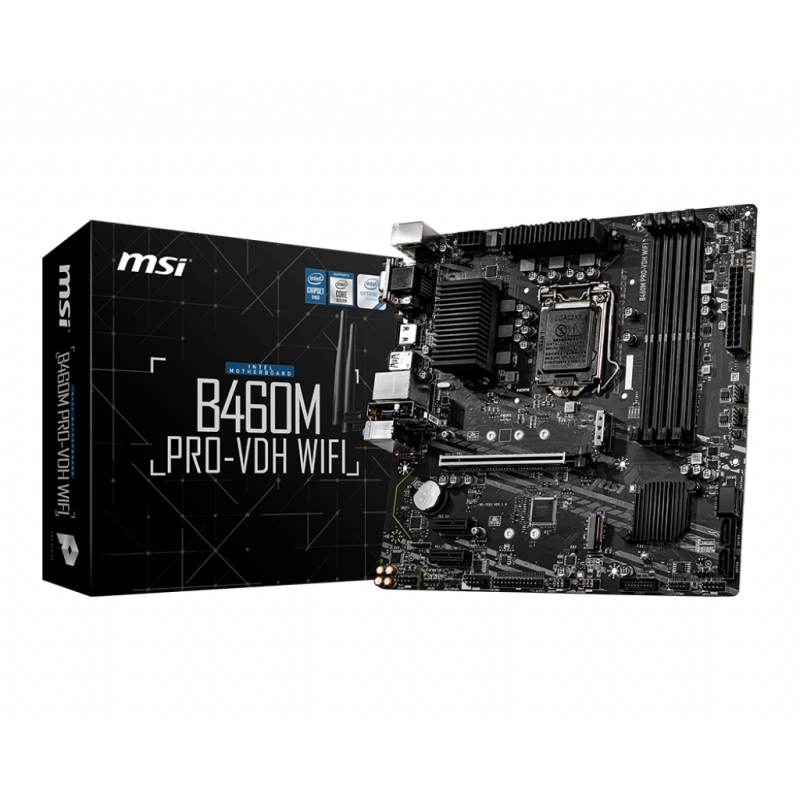

Msi B460M PRO-VDH WIFI

 Msi B460M PRO-VDH WIFI  let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications


    CPUSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
    ChipsetIntel® B460 Chipset
    Memory
    • 4x DDR4 memory slots supporting up 128GB
    • Intel® Core™ i7/ i9
      • Support DDR4-2933 Memory (Max.)
    • Intel® Core™ i5 (Below)
      • Supports DDR4-2666 Memory (Max.)
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)
    Expansion Slot
    • 1x PCIe 3.0 x16 slot (from CPU)
    • 2x PCIe x1 slots (from PCH)
    Onboard Graphics
    • 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
    • 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
    • 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz
    StorageIntel® B460 Chipset
    • 4x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
      • Supports Intel® Smart Response Technology for Intel Core™ processors
    RAIDIntel® B460 Chipset
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USBIntel® B460 Chipset
    • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AudioRealtek® ALC892 Codec
    • 7.1-Channel High Definition Audio
    LAN1x Realtek® RTL8111H Gigabit LAN Controller
    Wireless LAN & Bluetooth®Intel® 3168NGW
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports 802.11 a/ b/ g/ n/ ac
    • Supports Bluetooth® 4.2
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water pump connector
    • 2x 4-pin system fan connectors
    • 1x front panel audio connector
    • 2x system panel connectors
    • 1x parallel port connector
    • 1x serial port connector
    • 1x Chassis Intrusion connector
    • 1x Clear CMOS jumper
    • 1x 4-pin RGB LED connector
    • 1x 3-pin RAINBOW LED connector
    • 1x TPM module connector

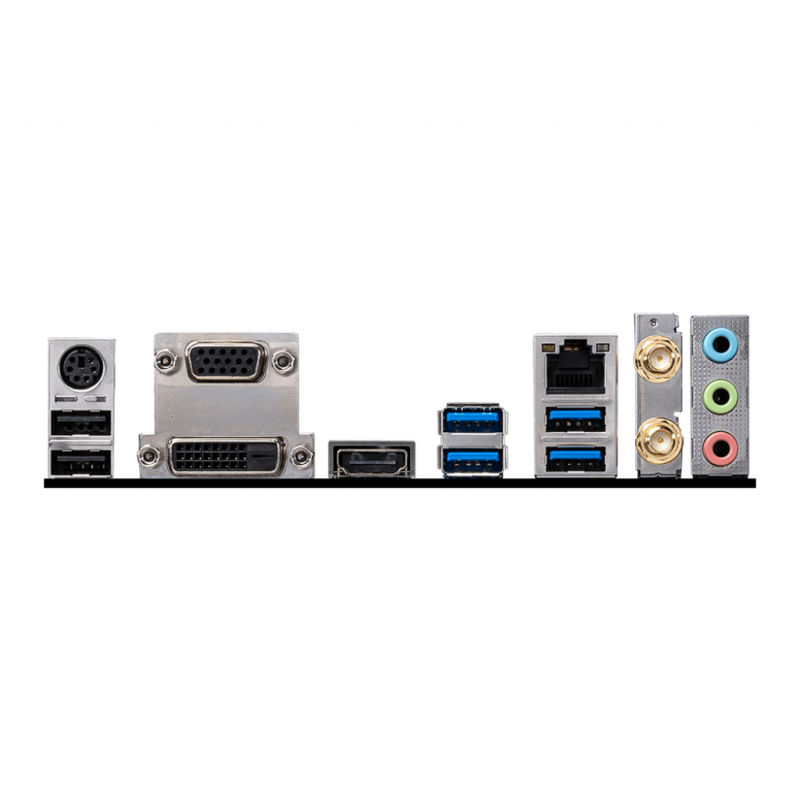

    Back panel ports
    • Keyboard / Mouse
    • VGA
    • LAN
    • USB 2.0
    • DVI-D
    • HDMI
    • USB 3.2 Gen 1 5Gbps Type-A
    • USB 3.2 Gen 1 5Gbps Type-A
    • Wireless / Bluetooth
    • Audio Connectors
    Form Factor
    • mATX Form Factor
    • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
    Warranty3 Years
