Msi B460M-A Pro

 Msi B460M-A Pro
 Msi B460M-A Pro
 Msi B460M-A Pro
 Msi B460M-A Pro
 Msi B460M-A Pro
FREE SHIPPING Out Of Stock
 Msi B460M-A Pro
 Msi B460M-A Pro
 Msi B460M-A Pro
 Msi B460M-A Pro
 Msi B460M-A Pro
Msi B460M-A Pro
This product qualifies for free shipping
This Product Is Eligible For Free Shipping In India
 Msi B460M-A Pro series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherbo..
  • Stock: Out Of Stock
  • Model: B460M-A-PRO
Product Views: 157
Rs.8,999.00
Ex Tax: Rs.7,626.27

 Msi B460M-A Pro series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications


CPUSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
ChipsetIntel® B460 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Intel® Core™ i7/i9
    • Support DDR4-2933 Memory (Max.)
  • Intel® Core™ i5 (Below)
    • Supports DDR4-2666 Memory (Max.)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 2x PCIe x1 slots (from PCH)
Onboard Graphics

  • 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
  • 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
StorageIntel® B460 Chipset
  • 6x SATA 6Gb/s ports
  • 1x M.2 slot (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
    • Intel® Optane Memory Ready2
    • Supports Intel® Smart Response Technology for Intel Core processor
RAIDIntel® B460 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USBIntel® B460 Chipset
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AudioRealtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
LAN1x Realtek® 8111H Gigabit LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 4x EZ Debug LED

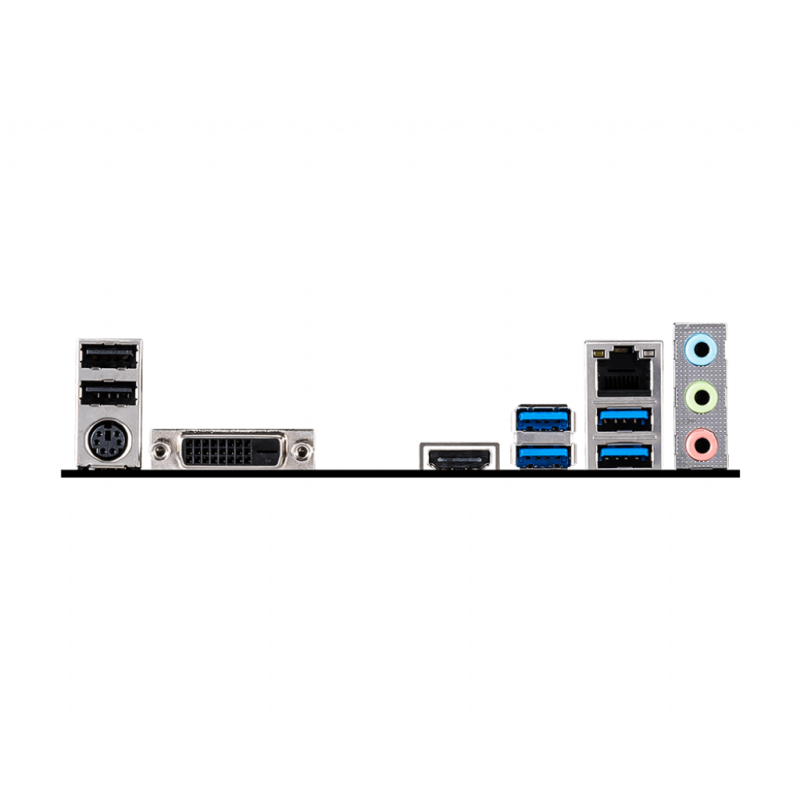

Back panel ports
  1. USB 2.0 Type-A ports
  2. LAN port
  3. PS/2 keyboard/ mouse combo port
  4. DVI-D port
  5. HDMI port
  6. USB 3.2 Gen1 5Gbps Type-A ports
  7. USB 3.2 Gen1 5Gbps Type-A ports
  8. Audio jacks
Form Factor
  • mATX Form Factor
  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features
  • 1x 128 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Warranty3 Years
