Msi B450M Pro-vdh Max Motherboard

Msi B450M Pro-vdh Max Motherboard
Msi B450M Pro-vdh Max Motherboard
Msi B450M Pro-vdh Max Motherboard
-34 % Out Of Stock
Msi B450M Pro-vdh Max Motherboard
Msi B450M Pro-vdh Max Motherboard
Msi B450M Pro-vdh Max Motherboard
Msi B450M Pro-vdh Max Motherboard
  • Stock: Out Of Stock
  • Model: B450M-PRO-VDH-MAX
  • SKU: TLG-002314
  • UPC: 824142194430
  • EAN: 4719072665968
Ex Tax: Rs.4,473.73

Msi B450M Pro-VDH Max Motherboard at Best Price in India | B450M-PRO-VDH-MAX

Introducing the MSI B450M Pro-VDH Max, a micro-ATX motherboard designed to deliver a superior computing experience. Boasting an AM4 socket and powered by the AMD B450 chipset, this motherboard is engineered to meet the demands of modern PC enthusiasts and gamers alike.

With support for up to 64GB of DDR4 memory across four DIMM slots, you can expect seamless multitasking and exceptional performance. Its expansion slots include one PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots, providing ample room for additional components. On the storage front, you'll find four SATA 6Gb/s ports and an M.2 slot, offering lightning-fast data transfer speeds.

The motherboard also features a range of USB ports, including USB 3.2 Gen1 and USB 2.0, ensuring connectivity for all your peripherals. Graphics capabilities are robust with VGA, DVI-D, and HDMI ports, supporting high resolutions for immersive visuals.

Additionally, the Realtek® 8111H Gigabit LAN controller ensures reliable network connectivity. With its Realtek® ALC892 Codec delivering 7.1-Channel High Definition Audio, you'll experience crystal-clear sound for an enhanced gaming and multimedia experience. From its AMD Ryzen™ processor support to its DDR4 Boost and Audio Boost technologies, the MSI B450M Pro-VDH Max is meticulously crafted to elevate your computing performance and enjoyment.

Main Highlights

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 3466+(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • EZ Debug LED: the Easiest way to troubleshoot
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

Msi B450M Pro-vdh Max Motherboard Benchmarks

Ryzen 5 3600AMD  Rs 6,617Bench 83%, 1,072,639 samples2,440x
Ryzen 5 2600AMD  Rs 11,960Bench 73%, 179,588 samples753x
Ryzen 5 5600XAMD  Rs 9,488Bench 96%, 383,420 samples454x
Ryzen 5 5600GAMD  Rs 10,604Bench 86%, 14,368 samples326x
Ryzen 5 3400GAMD  Rs 7,826Bench 68%, 93,718 samples319x
GTX 1660S (Super)Nvidia  Rs 19,134Bench 71%, 428,800 samples646x
RTX 2060Nvidia  Rs 25,848Bench 90%, 645,160 samples450x
RTX 3060Nvidia  Rs 20,327Bench 100%, 447,556 samples399x
RX 580AMD  Rs 10,364Bench 52%, 360,351 samples386x
RTX 3060-TiNvidia  Rs 27,107Bench 128%, 442,467 samples308x
A400 240GBKingston  Rs 2,216Bench 66%, 424,288 samples193x
SA2000M8500G 500GBKingstonBench 197%, 87,883 samples174x
A400 480GBKingston  Rs 3,014Bench 74%, 237,487 samples135x
860 Evo 500GBSamsung  Rs 5,979Bench 105%, 762,998 samples116x
BX500 240GBCrucial  Rs 2,232Bench 56%, 142,801 samples109x
Aegis DDR4 3000 C16 2x8GBG.SKILL  Rs 2,869Bench 82%, 163,634 samples516x
Vengeance LPX DDR4 3200 C16 2x8GBCorsair  Rs 3,188Bench 85%, 653,654 samples423x
Aegis DDR4 3200 C16 2x8GBG.SKILLBench 83%, 37,374 samples304x
Ripjaws V DDR4 3200 C16 2x8GBG.SKILL  Rs 2,870Bench 84%, 287,720 samples246x
HyperX DDR4 3200 C16 2x8GBKingstonBench 86%, 239,203 samples225x

Msi B450M Pro-vdh Max Motherboard Review

The MSI B450M Pro-VDH Max offers a compelling combination of performance, features, and value, making it an excellent choice for budget-conscious gamers and PC enthusiasts. Sporting a micro-ATX form factor and an AM4 socket compatible with AMD Ryzen processors, this motherboard provides a solid foundation for building a reliable gaming rig or productivity workstation.

One of its standout features is its memory support, with four DDR4 DIMM slots capable of accommodating up to 64GB of RAM. Whether you're tackling demanding multitasking scenarios or pushing the limits of gaming performance, the B450M Pro-VDH Max delivers the necessary bandwidth and responsiveness.

The inclusion of PCIe 3.0 and PCIe 2.0 expansion slots ensures compatibility with a wide range of add-in cards, from graphics cards to networking adapters and storage controllers. Additionally, the onboard SATA 6Gb/s ports and M.2 slot offer plenty of options for connecting high-speed storage devices, ensuring rapid data access and system responsiveness.

Connectivity options abound, with multiple USB 3.2 Gen1 and USB 2.0 ports providing ample connections for peripherals, external storage, and other accessories. The inclusion of VGA, DVI-D, and HDMI ports further enhances versatility, enabling users to connect displays with ease.

Networking capabilities are robust, thanks to the Realtek 8111H Gigabit LAN controller, which delivers reliable and low-latency connectivity for online gaming, streaming, and file transfers. Meanwhile, the onboard audio solution, powered by the Realtek ALC892 Codec, delivers high-definition sound output, enhancing the overall gaming and multimedia experience.

In terms of build quality and design, the B450M Pro-VDH Max impresses with its solid construction and sleek aesthetics. The black PCB with contrasting accents gives it a modern and understated look that will complement a variety of build themes.

Overall, the MSI B450M Pro-VDH Max excels in delivering a balance of performance, features, and affordability, making it a standout option for budget-conscious builders seeking a reliable foundation for their next PC build. Whether you're a gamer, content creator, or casual user, this motherboard has what it takes to meet your computing needs without breaking the bank.


ProcessorSupports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

AMD B450 Chipset

  • 4 x DDR4 memory slots, support up to 128GB ComboPI and above BIOS are required.1
  • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
  • For AMD Ryzen Gen3 (R5/R7/R9)
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
  • For AMD Other Processors
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Supports Dual Channel mode
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
  • 1 x PCIe 3.0 x16 slot
  • 1st, 2nd and 3rd Gen AMD
  • Ryzen™ support x16 mode
    Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
  • Athlon™ with Radeon™ Vega Graphics support x4 mode
  • 2 x PCIe 2.0 x1 slots
Onboard Graphics
  • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K @60Hz
  • Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
  • Maximum shared memory of 2048 MB
  • Graphics specifications may vary depending on the CPU installed.

AMD B450 Chipset

  • 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID1 and RAID 10
  • 1 x M.2 slot (Key M)
  • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
  • Supports 2242/ 2260 /2280 storage devices

AMD® B450 Chipset

  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
  • 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® processor

  • 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio

1 x Realtek® 8111H Gigabit LAN controller

Internal connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x RGB LED strip connector
  • 1 x Clear CMOS jumper

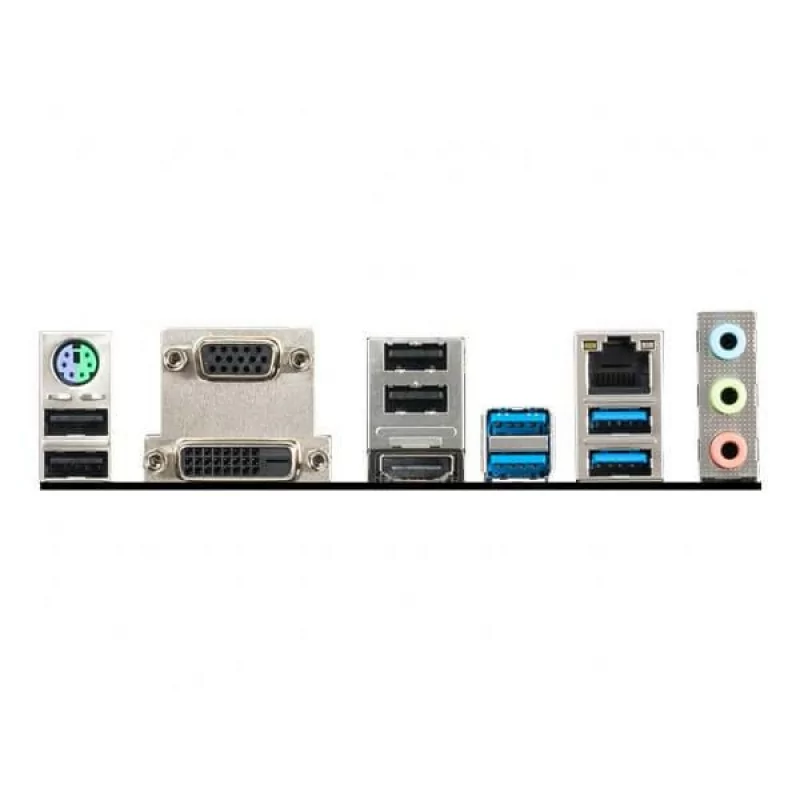

Back panel ports
  • PS/2
  • VGA Port
  • USB 2.0 Port
  • USB 3.2 Gen1
  • LAN Port
  • HD Audio Connectors
  • DVI-D Port
  • HDMI™ Port
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • m-ATX Form Factor

8 mounting holes

Operating SystemSupport for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
 Warranty 3 Years
