- Stock: Out Of Stock
- Model: 220-GT-1000-XN
- SKU: TLG-003678
More from this brand

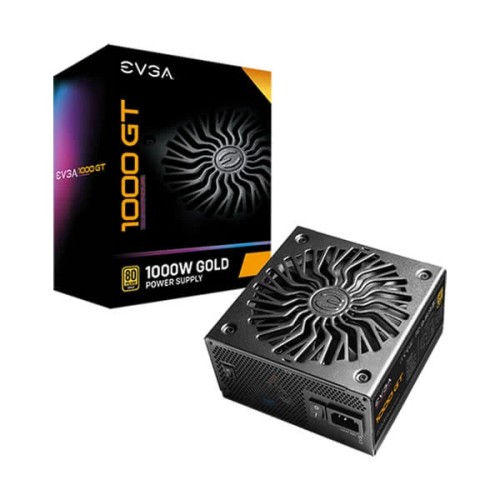

Introducing the EVGA SuperNOVA GT Series of power supplies - the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a fluid dynamic bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA's line of 80 Plus Gold rated power supplies, the EVGA GT Series combines all these features at a great price.
Refinement In performance and design
Upgrade both aesthetics and electronic components with a unique radial design fan grill, compact 150mm length and width, and 100% Japanese capacitors.
80 PLUS GOLD Efficiency
82 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
Fluid dynamic Bearing
The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
Single +12V output
Provides a stable output for compatibility with the latest hardware.
Fully modular design
Choose the cables you need to make cable management simple and clean.
Auto eco mode
Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise.
Full Protection
- OVP Over Voltage Protection
- OCP Over Current Protection
- OPP Over Power Protection
- SCP Short Circuit Protection
- UVP Under Voltage Protection
- Dual OTP Over Temperature Protection on the Primary and Secondary PCB
Specifications:
| Cable Length | |
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 700mm (m) |
| PCIe Cable | 2x 700mm (m), 3x 700mm, 850mm (m) |
| SATA Cable | 4x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Adapter | 1x Molex to FDD Adapter |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |
| Connector Quantity | |
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4+4) |
| PCIe | 8x 8pin(6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |
| Input | |
| Input Voltage | 100-240V~ |
| AC Input | 12-6A |
| Input Frequency Range | 60/50Hz |
| Efficiency | 90% or Higher Typical |
| Output | |
| Total | 1000W |
| Max Output | 130W
1000W
15W
3.6W
|
| Additional Details | |
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Gross Weight | 8.80 lbs |
| Size | 86mm (H) x 150mm (W) x 150mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
| Warranty | 10 Years |
