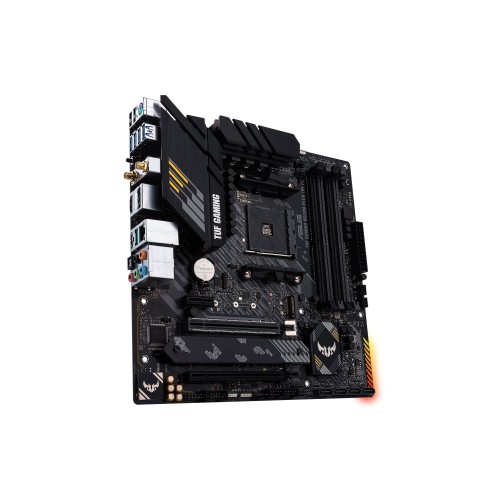

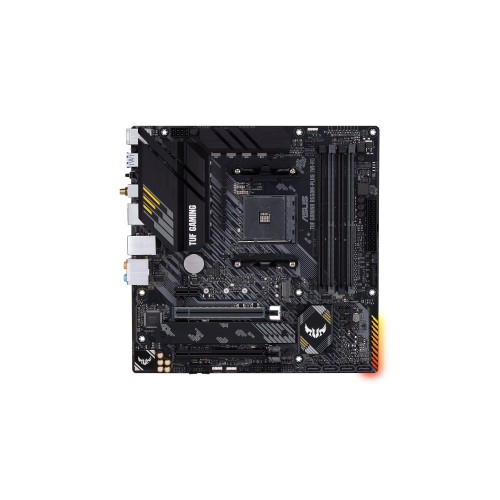

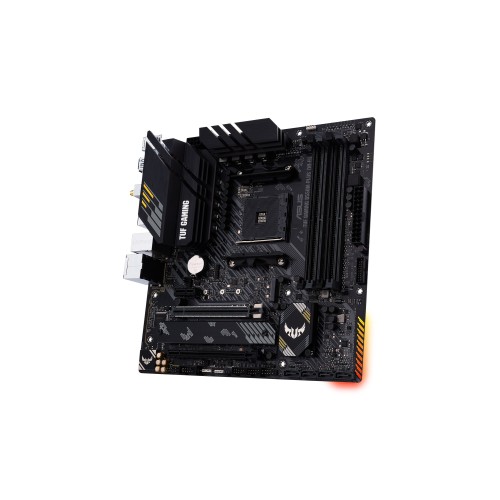

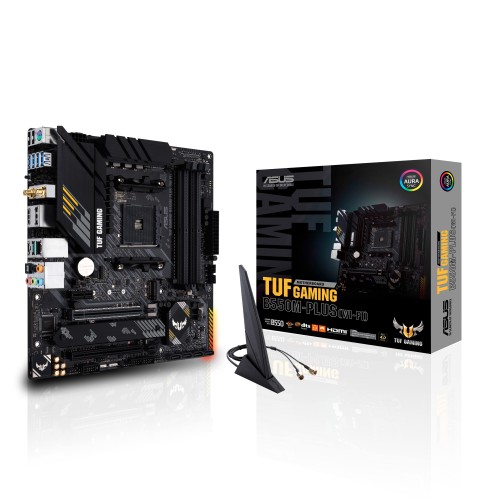

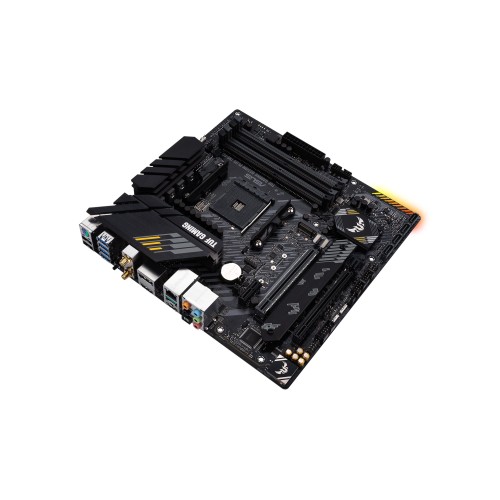

ASUS TUF GAMING B550M-PLUS (WI-FI) Motherboard

ASUS TUF GAMING B550M-PLUS (WI-FI) Motherboard

ASUS TUF GAMING B550M-PLUS (WI-FI) distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Specifications:

CPU

Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *

* Refer to www.asus.com for CPU support list

Chipset

AMD B550

Memory

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Next Generation AMD Ryzen PRO Processors

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

1 x DisplayPort 1.2

1 x HDMI 2.1(4K@60HZ)

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

3rd Gen AMD Ryzen™ Processors

1 x PCIe 4.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode) *1

1 x PCIe 3.0 x1 *1

* Support PCIe bifurcation for RAID on CPU function.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

3rd Gen AMD Ryzen™ Processors :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

AMD B550 Chipset :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

LAN

Realtek RTL8125B 2.5Gb Ethernet

TUF LANGuard

Wireless Data Network

Intel® Wi-Fi 6 AX200

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports up to 2.4Gbps max data rate

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Supports PCIe interface

Bluetooth

Bluetooth v5.1*

*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Optical S/PDIF out port(s) at back panel

- Audio cover

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

USB Ports

Rear USB Port ( Total 8 )

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

4 x USB 2.0 port(s)(4 x Type-A)

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- AI Noise Cancelling Microphone

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS TUF PROTECTION

- ASUS DIGI+ VRM (Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Procool

AURA Sync

- Standard RGB headers

- Addressable Gen 2 RGB header

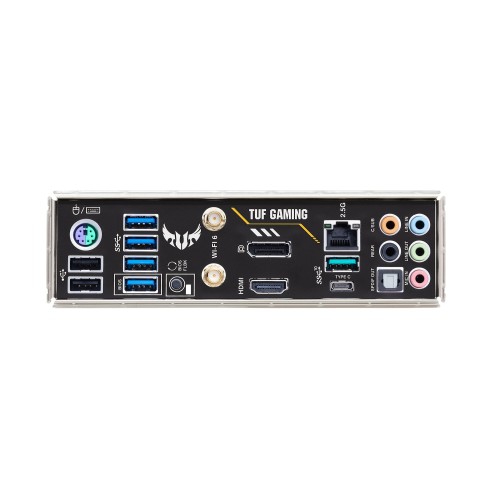

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (2.5G) port(s)

2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

4 x USB 3.2 Gen 1 (blue) Type-A

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x BIOS FlashBack™ Button(s)

1 x ASUS Wi-Fi Module

Internal I/O Ports

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

2 x Aura RGB Strip Headers
