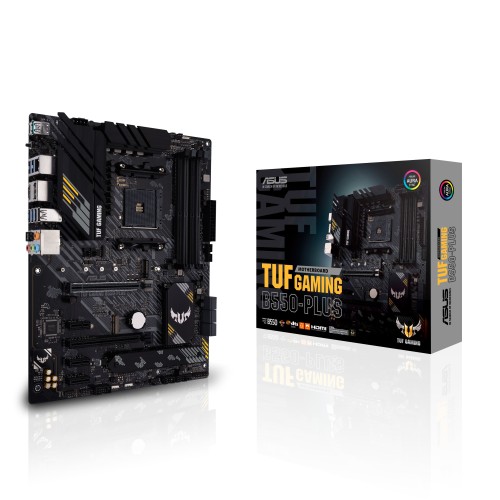

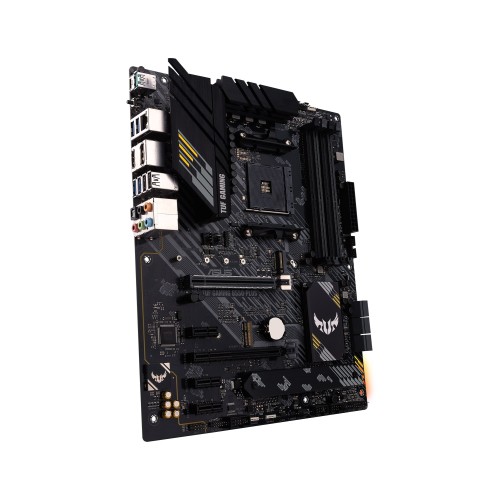

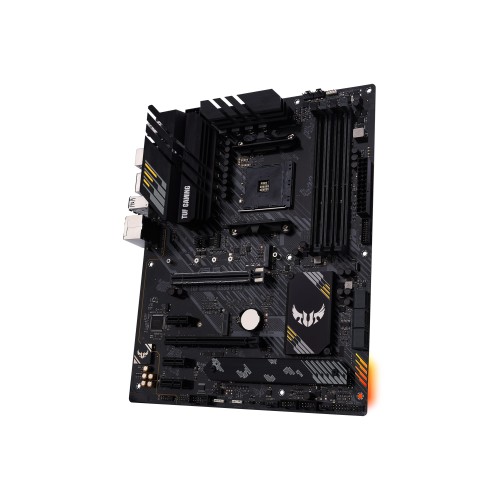

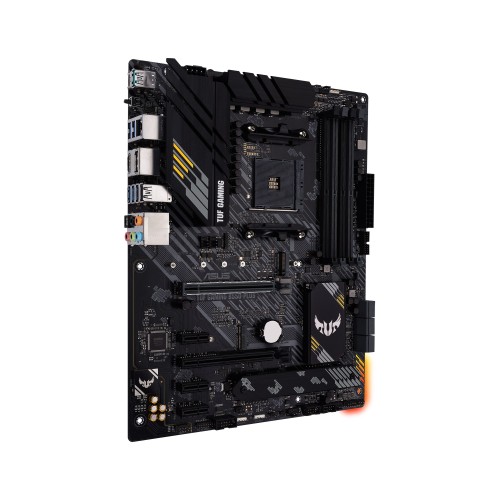

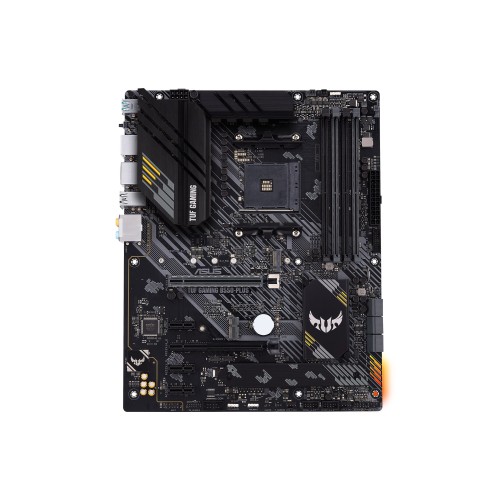

Asus tuf gaming B550-Plus Motherboard

Asus tuf gaming B550-Plus Motherboard

ASUS TUF GAMING B550-PLUS distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Specification

ASUS B550-PLUS Specs:

CPU

Chipset- AMD B550

CPU Socket- AM4

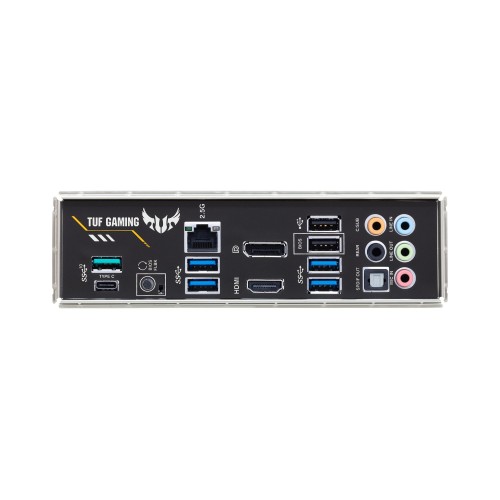

Back Panel I/O

USB- 1 x USB 3.1 / USB 3.2 Gen 2 Type-A

-1 x USB 3.1 / USB 3.2 Gen 2 Type-C

-4 x USB 3.1 / USB 3.2 Gen 1 Type-A

-2 x USB 2.0 Type-A

Thunderbolt- None

Display- 1 x DisplayPort 1.2

-1 x HDMI 2.1

Audio- 5 x 3.5 mm

-1 x S/PDIF

Ethernet / Controller- 1 x Realtek RTL8125B 2.5Gigabit

Buttons-  BIOS Flashback

Memory

Memory Slots- 4 x 288-Pin

Memory Support- DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3466, 3600, 3866, 4000, 4400 MHz

Maximum Capacity- 128 GB

Channel Architecture- Dual Channel

ECC Support- Non-ECC, ECC Unbuffered

Storage Expansion

SATA- 6 x SATA III

M.2- 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))

-1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified))

U.2-  None

RAID Support- RAID 0, 1, 10

Internal I/O

Expansion Slots- 1 x PCIe 4.0 x16 (x16 mode)

-1 x PCIe 3.0 x16 (x4 mode)

-3 x PCIe 3.0 x1

USB- 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)

-2 x USB 2.0 Header (Supports 4 USB Type-A Port)

Multi-GPU Support- 2-Way AMD CrossFireX

Air Cooling- 1 x 4-Pin CPU

-1 x 4-Pin Assistant

-3 x 4-Pin System

-1 x Thermal Sensor

Liquid Cooling- 1 x 4-Pin Pump

Power Connectors- 1 x 24-Pin Mainboard

-1 x 8-Pin ATX

Security- TPM Module

LED Header- 3 x RGB

Audio- 1 x Speaker

Diagnostics- Clear CMOS

Add-On- 1 x Thunderbolt Card Header

Legacy- 1 x Serial

BIOS

ROM- 256 Mb

Front Panel I/O

I/O Connection Headers- AAFP, USB 3.1 / USB 3.2 Gen 1

Audio

Audio Codec- Realtek S1200A (7.1-Channel)

Wireless

Module Support- 1 E Key M.2

Software

Supported Operating Systems-  Windows 10 (64-Bit)

Physical

Form Factor- ATX
