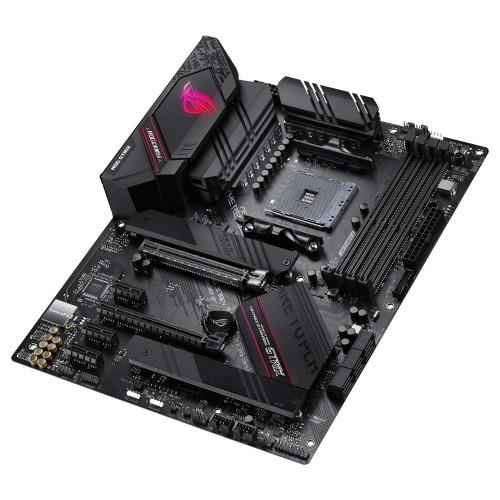

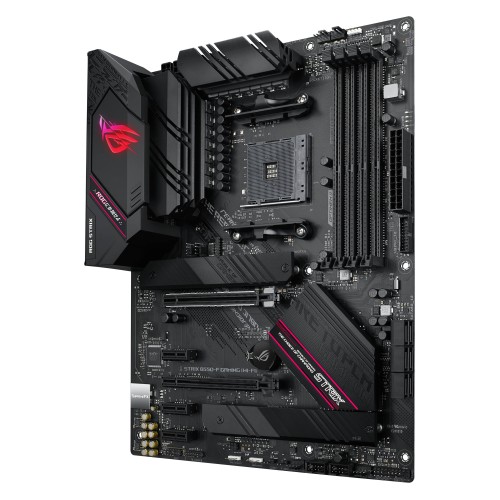

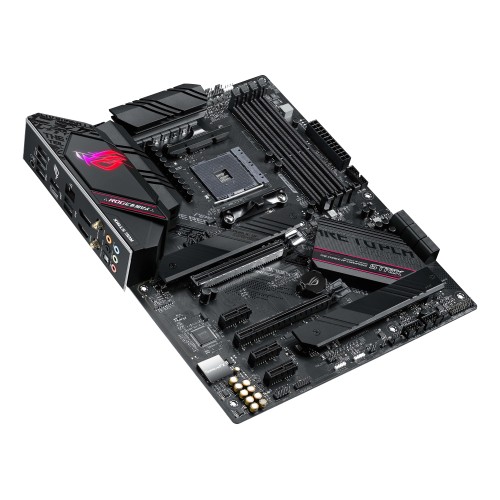

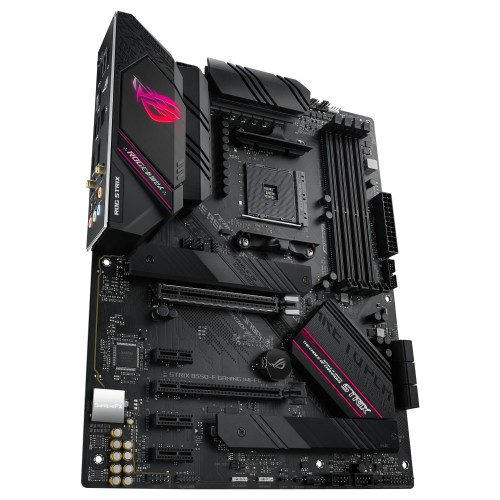

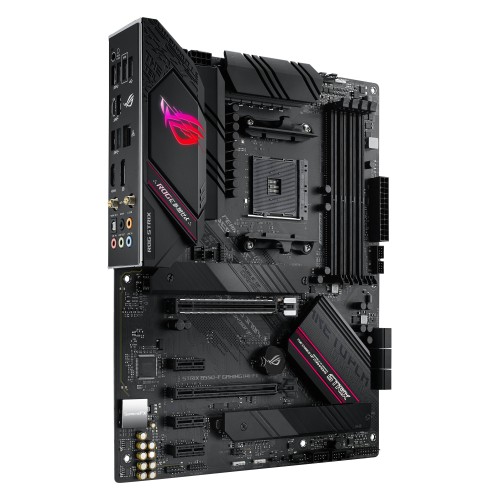

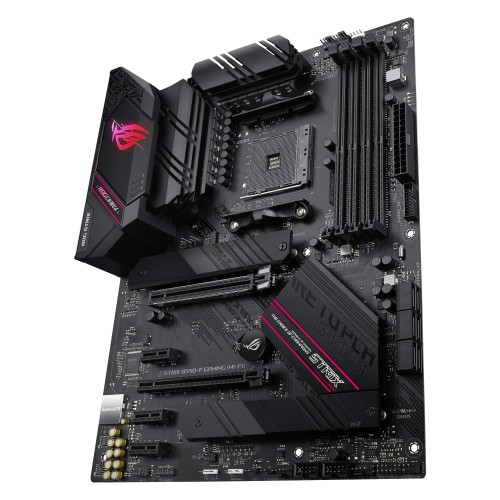

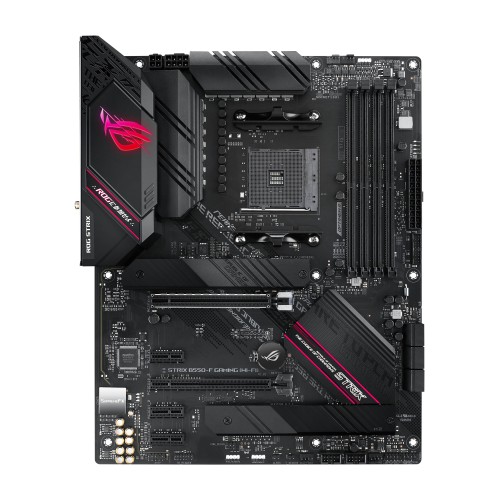

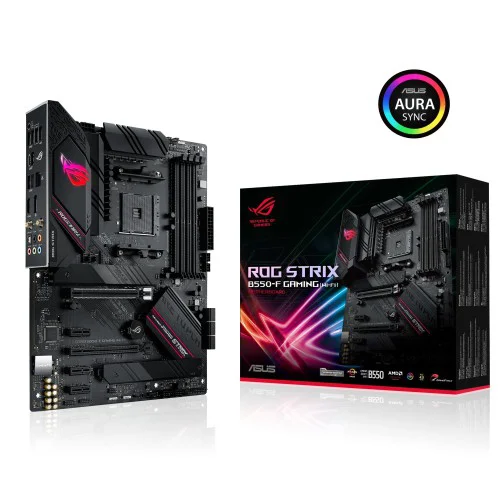

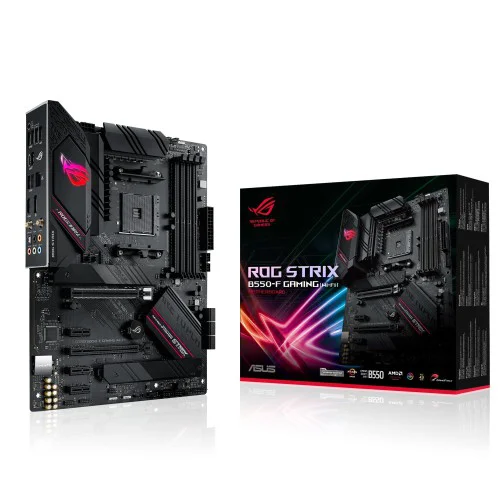

ASUS ROG STRIX B550-F GAMING(WI-FI) MOTHERBOARD

ASUS ROG STRIX B550-F GAMING(WI-FI) MOTHERBOARD  features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

Specifications

Specifications
CPU Support:	AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Power Design:	CPU Power: 14-phase* Memory Power: 2-phase
Chipset:	AMD B550
Integrated Graphics:	Dependent on installed CPU
Memory:	4x DIMM, supports dual-channel DDR4-5100 (OC) MHz
BIOS:	AMI UEFI BIOS
Expansion Slots:	2x PCIe x16 (1x PCIe 4.0/1x PCIe 3.0) slots 3x PCIe 3.0 x1 slots
Storage:	6x SATA 6 Gb/s ports 2x M.2 ports (SATA3/1x PCIe 3.0 x4/1x PCIe 4.0 x4)
Networking:	Intel® I225-V 2.5 Gb/s Ethernet Intel 802.11 ax WiFi

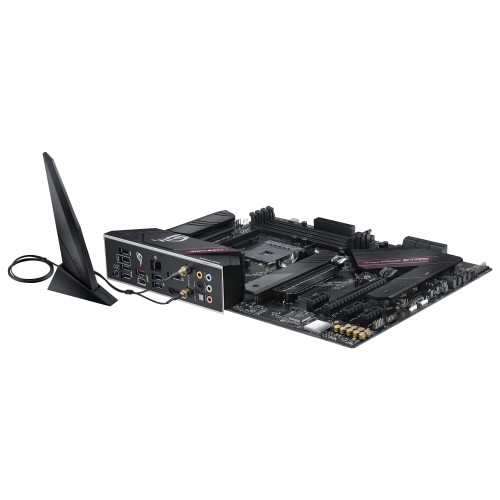

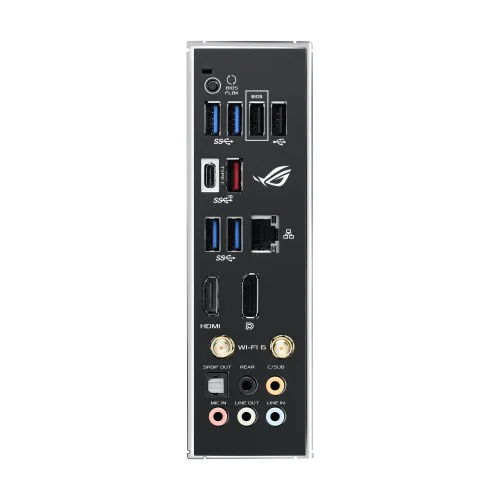

Rear Ports:	2x Antenna ports 1x Bios Flashback button 1x HDMI 2.1 port 1x DisplayPort 1.4 1x Optical SPDIF out port 1x LAN (RJ45) port 1x USB 3.2 (Gen2) Type-C port 4x USB 3.2 (Gen1) ports 1x USB 3.2 (Gen2) Type-A ports 2x USB 2.0 ports 5x 3.5 mm audio jacks
Audio:	1x Realtek ALC1220 Codec
Fan Headers:	6x 4-pin
Form Factor:	ATX Form Factor: 12.0 in x 9.6 in, 30.5 cm x 24.4 cm
Exclusive Features:	Aura Sync Standard RGB header(s) Addressable Gen 2 RGB header(s) ASUS Q-Design ASUS Q-DIMM ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) ASUS Q-Slot ASUS Thermal Solution Aluminium M.2 heatsink ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED Clear CMOS header ProCool Pre-mounted I/O shield SafeSlot
