ASUS PRIME B550M-A (WI-FI)

ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
FREE SHIPPING Out Of Stock
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
ASUS PRIME B550M-A (WI-FI)
This product qualifies for free shipping
This Product Is Eligible For Free Shipping In India
ASUS PRIME B550M-A (WI-FI)  by the AMD B550 chipset, this motherboard supports third-generation AMD Ryzen processors with the AM4 socket. Designed to pack a ton of power into a sma..
  • Stock: Out Of Stock
  • Model: ASUS PRIME B550M-A (WI-FI)
Product Views: 273
Rs.13,800.00
Ex Tax: Rs.11,694.92

ASUS PRIME B550M-A (WI-FI)  by the AMD B550 chipset, this motherboard supports third-generation AMD Ryzen processors with the AM4 socket. Designed to pack a ton of power into a small form factor, the micro-ATX motherboard takes advantage of the large PCIe 4.0 data bandwidth to deliver high performance for demanding tasks such as gaming, video editing, and more. Up to 128GB of dual-channel DDR4 ECC memory, reaching 4400 MHz when overclocked, can be installed across four memory slots. The PRIME B550M-A also features advanced cooling and supports up to two M.2 SSDs and four SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Its PCIe 4.0 x16 slot can accommodate a high-end graphics card and two PCIe 3.0 x1 slots are available for compatible expansion cards. Or you can use the AMD CPU's integrated graphics by connecting up to three monitors to the motherboard's HDMI, DVI-D, and VGA ports.

The PRIME B550M-A has built-in 802.11ax Wi-Fi that's capable of reaching up to 2.4 Gb/s with compatible devices. Or use the Gigabit Ethernet port for a wired network connection. Connect peripherals such as keyboards and mice to the rear panel's USB 2.0 ports while reserving the USB 3.2 Gen 2 Type-A ports for transferring data from compatible devices at up to 10 Gb/s. Other features include addressable Gen 2 Aura Sync RGB lighting headers and a Realtek ALC887 7.1-channel audio system. Windows 10 64-bit is required to take advantage of all the motherboard's features.

ASUS B550M-A WIFI Specs

CPU
ChipsetAMD B550
CPU SocketAM4

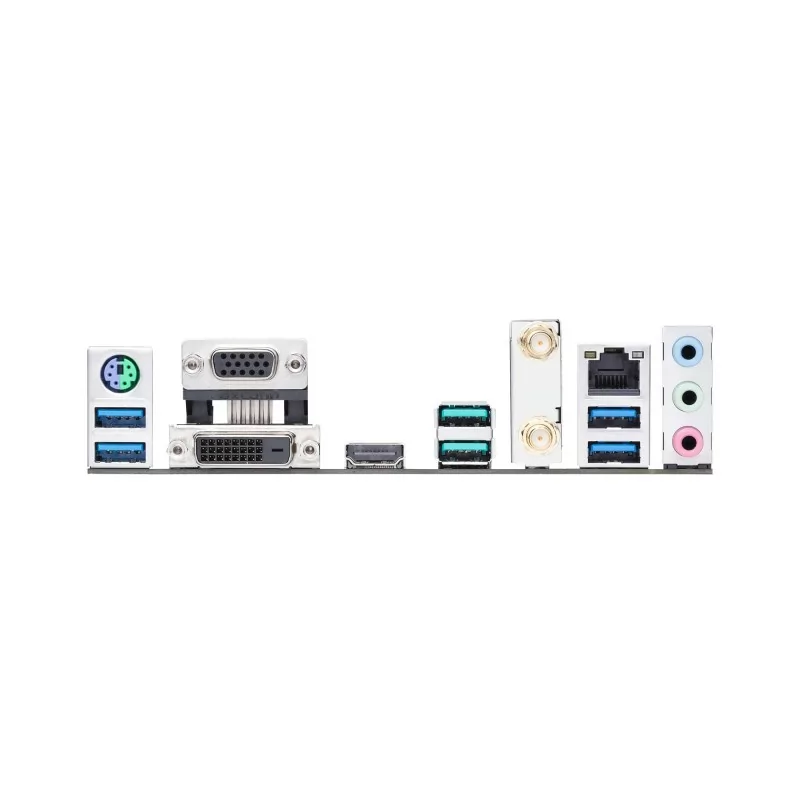

Back Panel I/O
USB2 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
ThunderboltNone
Display1 x HDMI 2.1
1 x DVI-D
1 x VGA
Audio3 x 3.5 mm
Ethernet / Controller1 x Realtek RTL8111H Gigabit
PS/21 x PS/2
Wi-Fi Antenna2 x Connector
Memory
Memory Slots4 x 288-Pin
Memory SupportDDR4 2133, 2400, 2666, 2800, 3000, 3200, 3466, 3600, 3866, 4000, 4400 MHz
Maximum Capacity128 GB
Channel ArchitectureDual Channel
ECC SupportNon-ECC, ECC Unbuffered
Storage Expansion
SATA4 x SATA III
M.21 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
U.2None
RAID SupportRAID 0, 1, 10
Internal I/O
Expansion Slots1 x PCIe 4.0 x16 (x16 mode)
2 x PCIe 3.0 x1
USB1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU SupportNone
Air Cooling1 x 4-Pin CPU
2 x 4-Pin System
1 x 4-Pin Assistant
Power Connectors1 x 24-Pin Mainboard
1 x 8-Pin ATX
SecurityTPM Module
LED Header3 x RGB
Audio1 x Speaker
1 x S/PDIF
DiagnosticsClear CMOS
Legacy1 x Serial
BIOS
ROM256 Mb
Front Panel I/O
I/O Connection HeadersAAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio CodecRealtek ALC887 (7.1-Channel)
Wireless
Bluetooth5.1
Wi-FiWi-Fi 6 (802.11ax) (MU-MIMO)
Software
Supported Operating SystemsWindows 10 (64-Bit)
Physical
Form FactorMicro-ATX

There are no reviews for this product.
