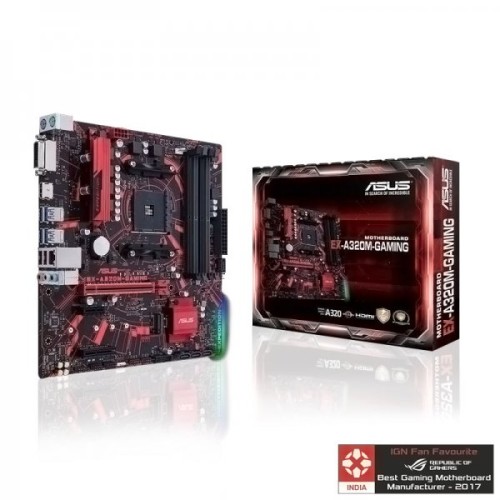

Micro-ATX A320 feature with AURA sync, Anti-moisture Coating, USBGuard and Gold-plated x16 PCIe, LAN port, and 8-pin power connector.
- Non-stop action: The best choice for iCafés, built-to-order gaming systems and quality-driven businesses.
- Non-stop durability: Unbeatable features including anti-moisture coating, gold-plated PCIe x16 and LAN design, USB Guard, plus 5X Protection III.
- Non-stop gaming: Aura sync, ASUS Beyond VR ready, Epic audio experiences
- Non-stop challenger: ASUS iCafe LAB-certified reboot- and compatibility-tested for diskless-system use, top games and 100+ peripherals, 1000+ CPUs, memory modules, graphics cards, and
|CPU (MAX SUPPORT)||AMD AM4 Socket for AMD Ryzen™/AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4/Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list|
|Expansion Slots||AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset 1 x PCIe 2.0 x4 (x2 mode) 1 x PCIe x1|
|MEMORY CHANNEL||AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory ECC Memory (ECC model) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor|
|Special features||ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM|
|LAN||Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)|
|AUDIO||Realtek® ALC887 8-Channel High Definition Audio CODEC Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs|
|USB||AMD A320 chipset : 6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board) AMD A320 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)|
|Back I/O ports||1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 3 x Audio jack(s)|
|Internal I/O Ports||1 x AAFP connector 1 x RGB Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x AIO PUMP Header|
|Accessories||User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD|
|BIOS||128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control|
|FORM FACTOR||mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )|
