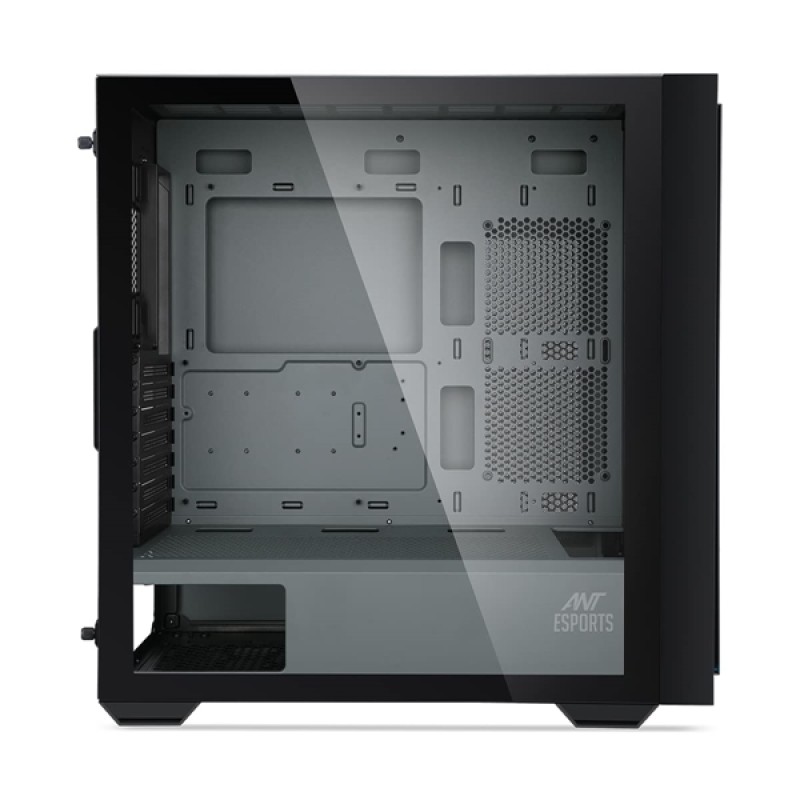

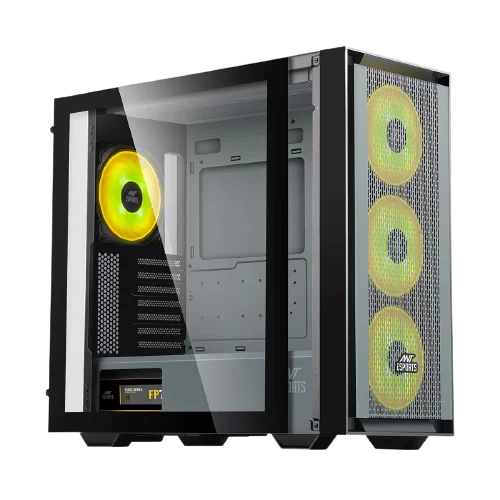

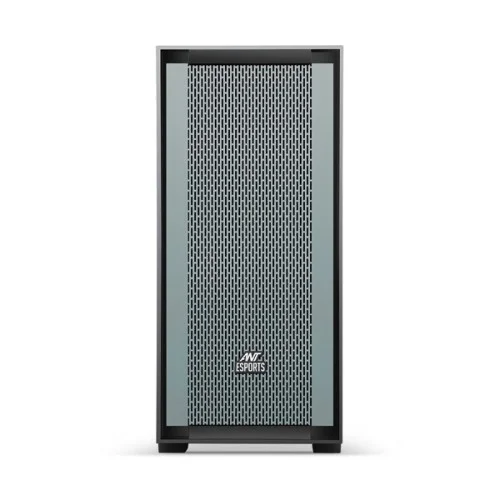

Ant Esports 690 Air ARGB Black Cabinet

Ant Esports 690 Air ARGB Black Cabinet

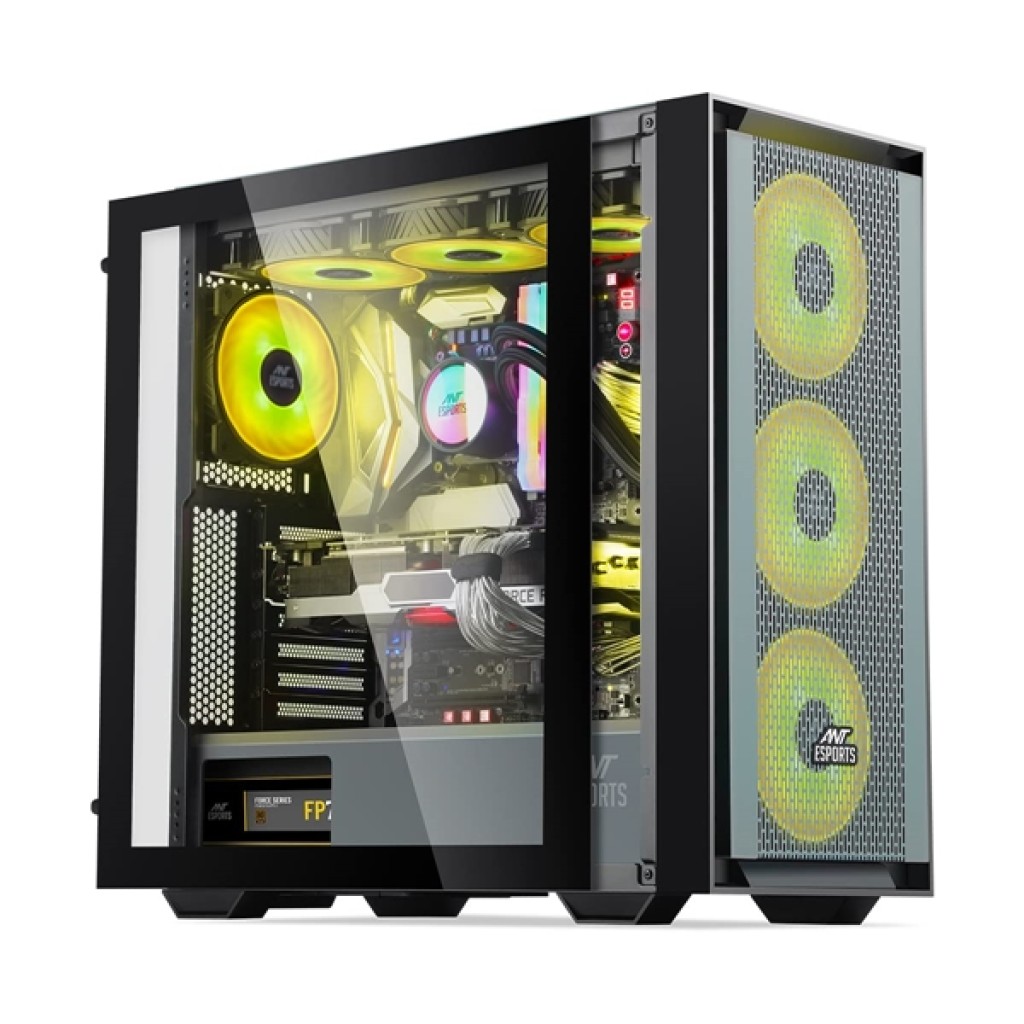

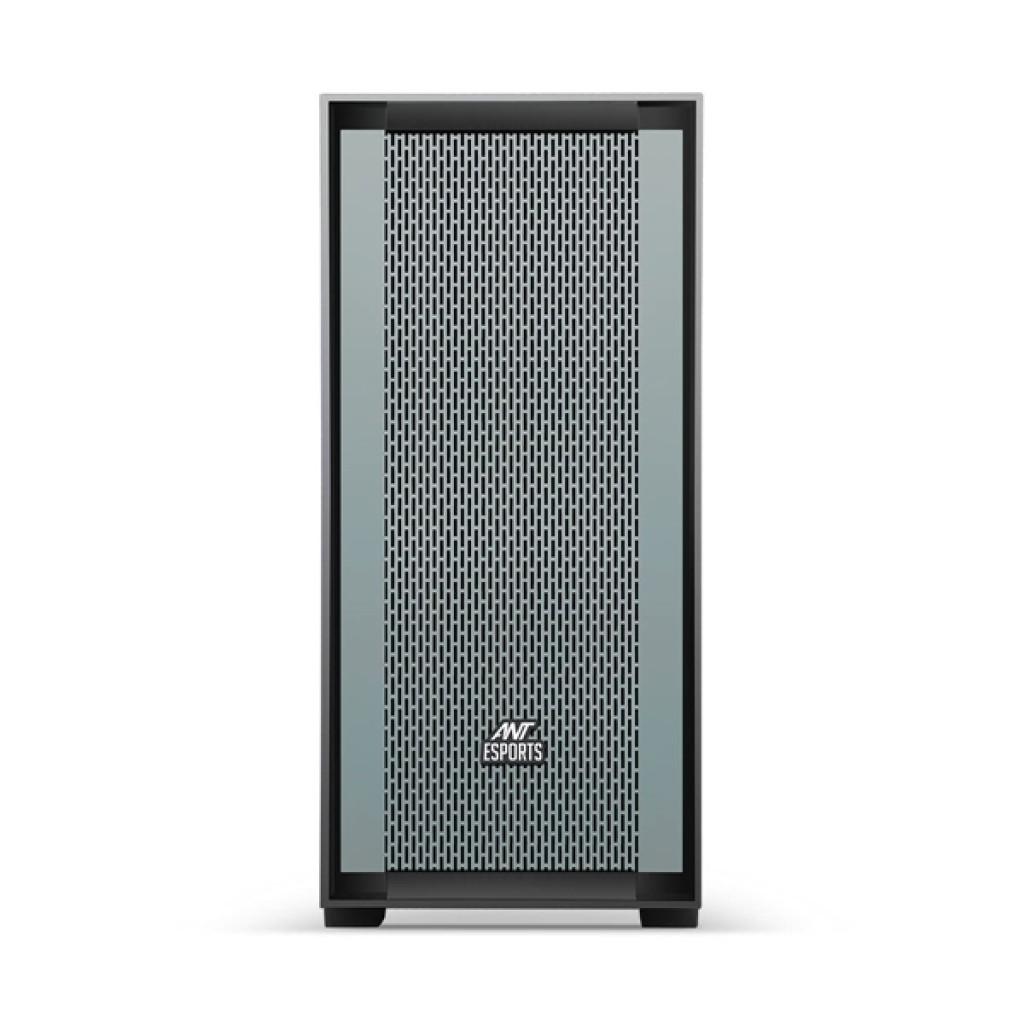

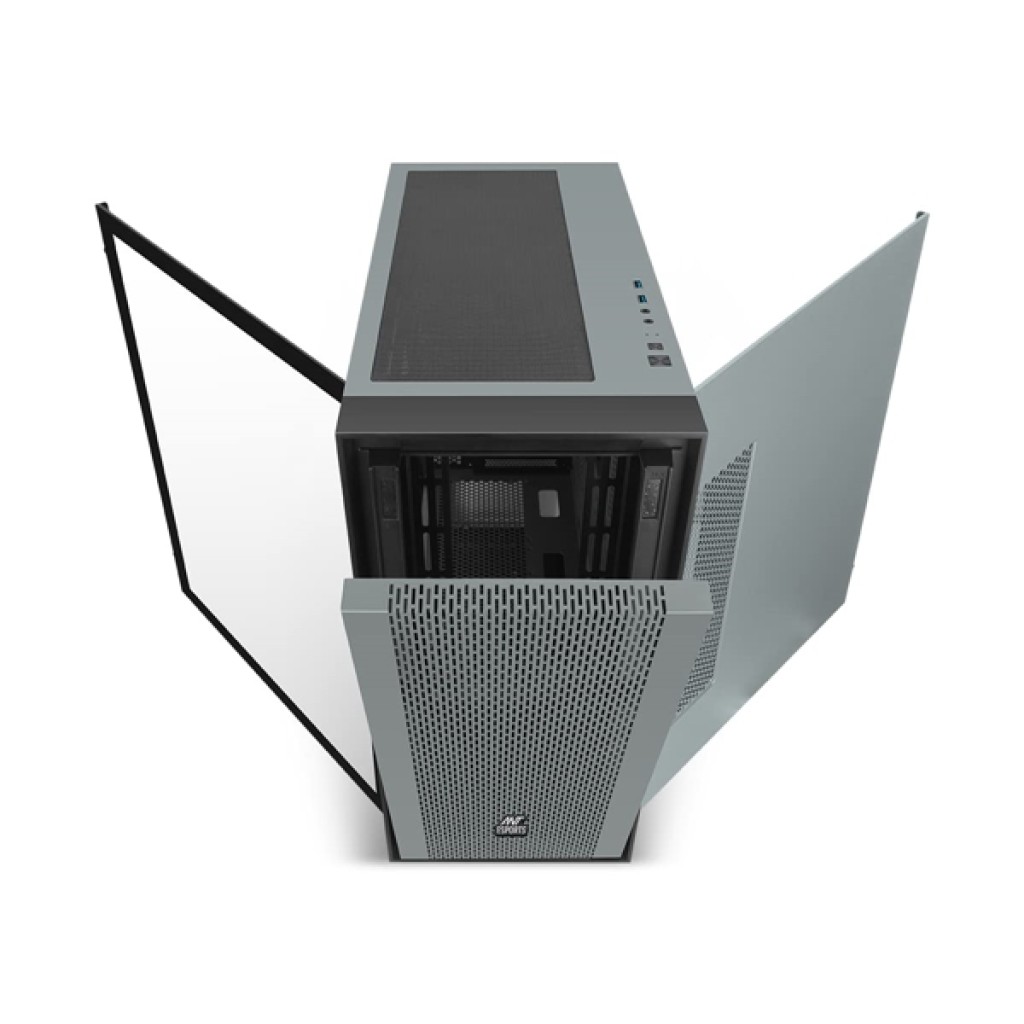

The Ant Esports 690 Air is a mid-tower gaming case delivering high-end premium features at a pocket-friendly price tag. The case supports up to E-ATX motherboards, multiple storage drives, and liquid coolers up to 360mm on top, making it ideal for high-end gaming or production systems. With a front mesh panel with a magnetic dust filter and a direct airflow path, the Ant Esports 690 Air not only keeps high-end gaming hardware cool under load but also prevents dust accumulation.


Key features

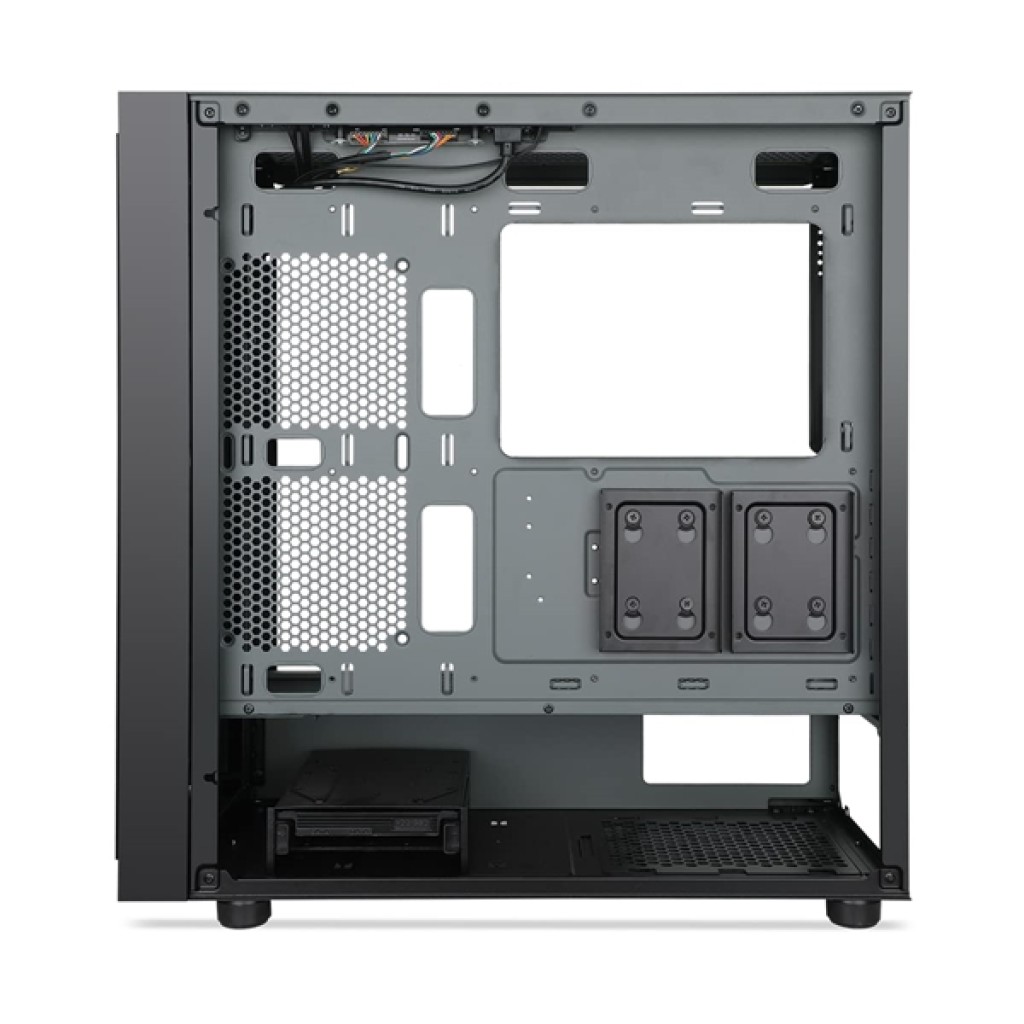

The 690 Air not only supports a massive 360mm radiator on top for a thermally perfect build but also has space for a 240mm radiator on the side so one can choose the amount of their choice and even install multiple radiators at the same time if needed. The case supports two dedicated 2.5” SSD mounts, one dedicated 3.5” HDD drive, and one swappable SSD or HDD mount totaling four storage drive mounts.

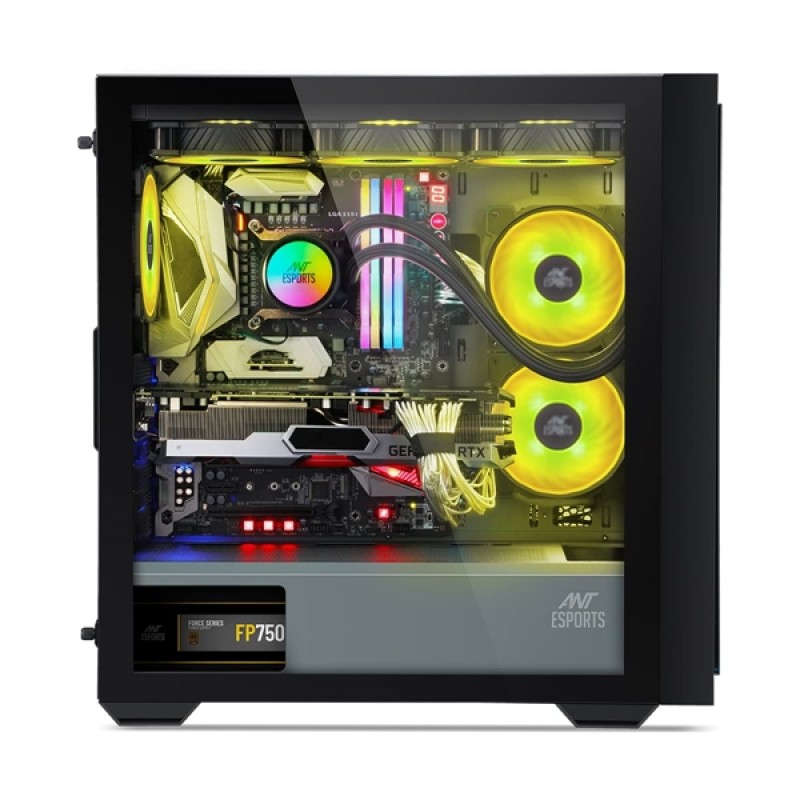

For enthusiast-grade systems or cooling setups, the Ant Esports 690 Air supports up to dual 360mm radiators in the front and on top, while the side 240mm radiator mount not only lets one opt for custom loop cooling but even using graphics cards with AIO coolers now possible.

CPU Air Cooler clearance of up to 175mm ensures installation of massive air coolers with ease and the 220mm PSU clearance under the PSU shroud makes the 690 Air the perfect case to build power-hungry systems in. The case comes with a dual SSD and a single HDD mount, along with one swappable mount for SSD/HDD to provide enough storage for your gaming or production PCs.


Specification:

Dimensions

Chassis Size: 421 x 221 x 470 mm

Packing Size: 572 x 322 x 575 mm

Motherboard TypeE-ATX, ATX, Micro-ATX, Mini ITX
Drive Bays

3.5 Inch: x 2

2.5 Inch: x 2

5.25 Inch: None

Fan Support

Front: 120/140 mm x 3

Top: 120mm x 3/ 140mm x 2 Bottom: 120mm x 2

Rear: 120mm x 1

Side: 120mm x 2

Liquid Cooling Support(Maximum)

Front: 120/240/280/360 mm Rear: 120mm

Top: 120/240/280/360 mm

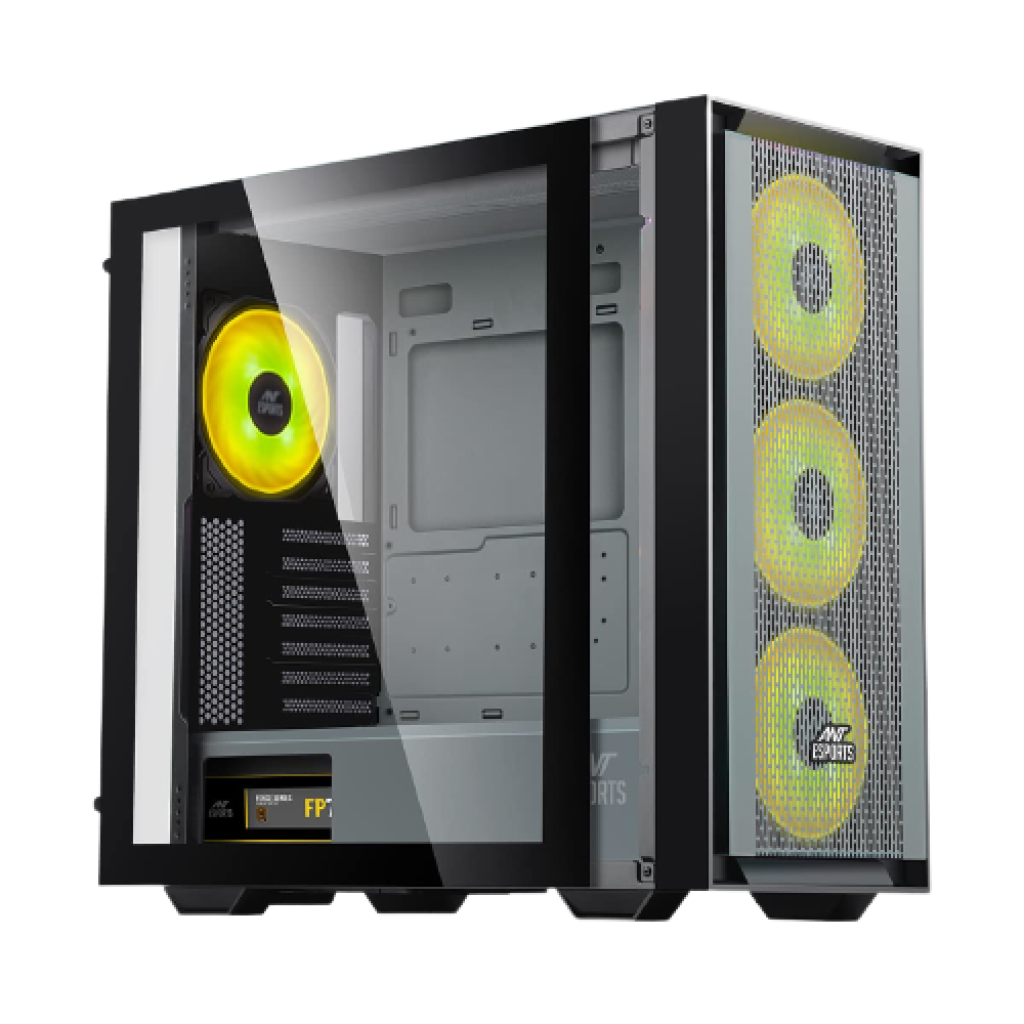

Pre-Installed FansFront: x 3 ARGB Fans
Compatibility(Maximum)

VGA Card Length: 390mm

CPU Cooler Height: 175mm

I/O Panel2x USB 3.0, 1x Audio In, 1x Mic, LED Control Button
Expansion Slots7
Warranty 1 Year
