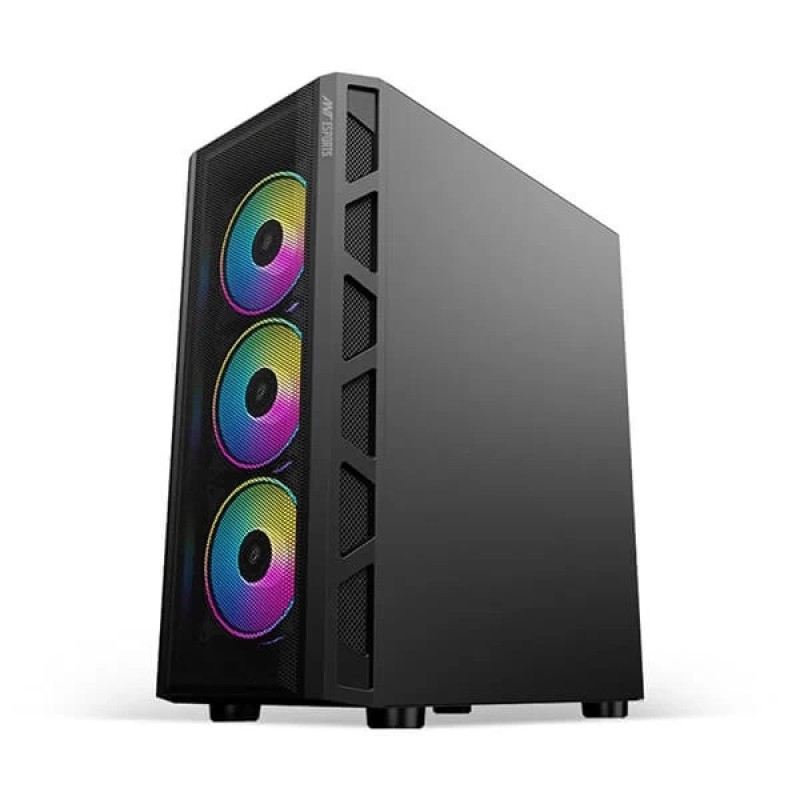

Ant Esports 510 Air Mid Tower RGB Cabinet

Ant Esports 510 Air Mid Tower RGB Cabinet

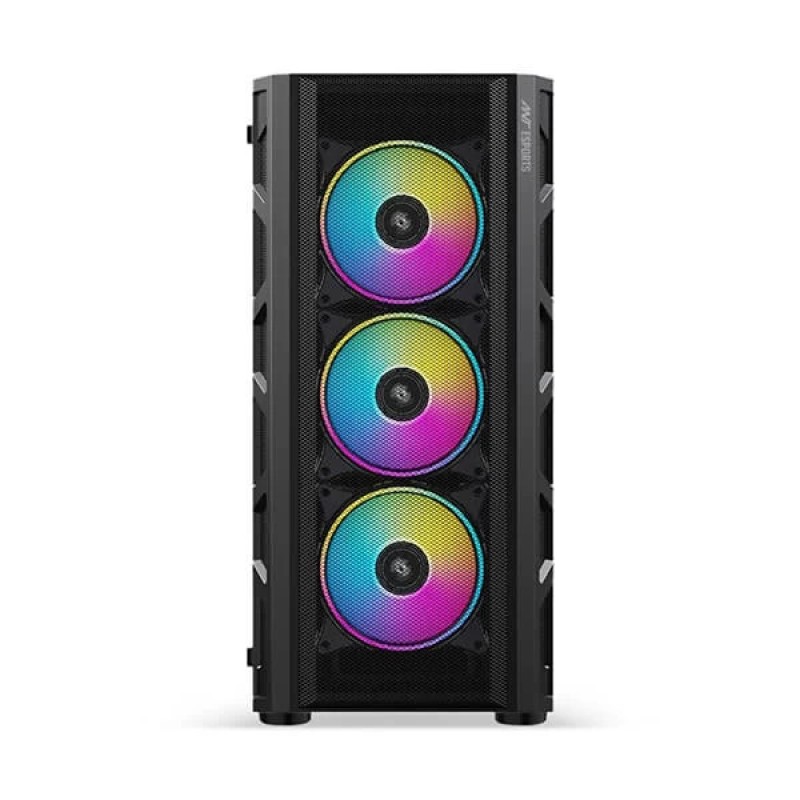

The Ant Esports 510 Air is designed for high-end gaming systems that require optimum airflow for cooling and optimum functionality. The signature fine front mesh design paired with three 120mm high CFM ARGB fans in the front delivers high airflow keeping your high-end hardware cool even under extreme loads.


Key Features

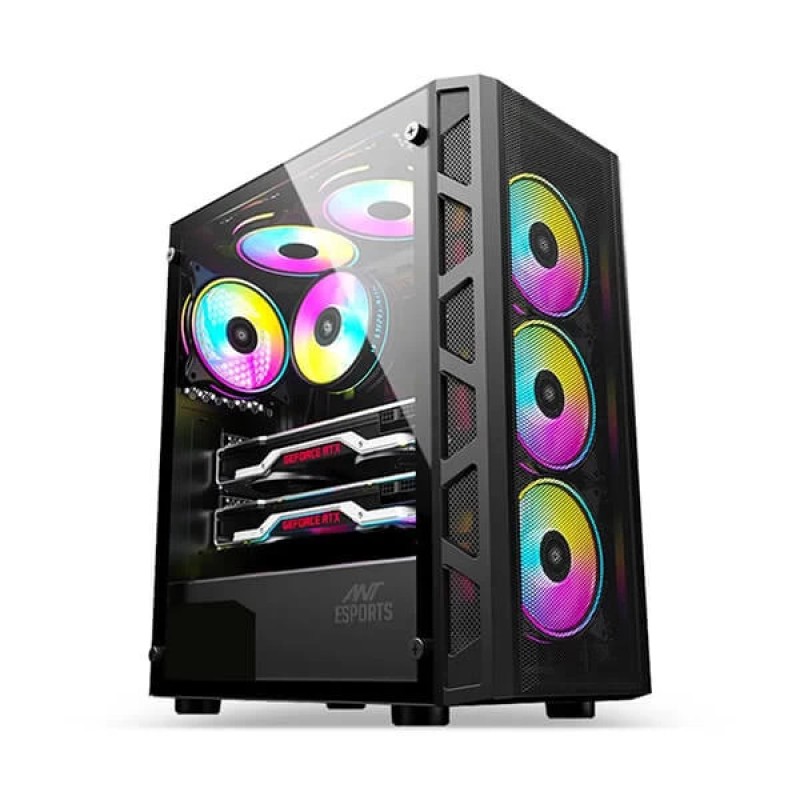

The Ant Esports 510 Air comes with four 120mm ARGB fans pre-installed, which can be controlled via the motherboard using mainstream ARGB utilities. Support for motherboards up to E-ATX standards, vertical mount for the graphics card, and high airflow design make the 510 Air the ideal case for building a high-end system.

A top magnetic dust filter helps keep the system clean even with an all-air-cooled system thanks to its multiple fan mounts and CPU cooler clearance of up to 160mm to support even beefy air coolers. Dedicated storage mounts provide space for four 2.5” SSDs or two 2.5” SSDs and two 3.5” HDDs making the 510 Air ideal for high-end builds based on even an E-ATX motherboard.

Considering the increasing TDP of even budget PC components, high airflow is a necessity for the optimal functioning of gaming and production rigs. The Ant Esports H510 Air, with the help of a strategically designed front mesh panel, provides a direct airflow path to high-powered parts like graphics cards and CPUs, keeping them cool even under full load. The three high CFM 120mm ARGB fans in the front run quietly, and the tapered front mesh panel pushes in a high volume of air with ease.


Specifications:

Dimensions (L x W x H)
  • Chassis Size: 416 x 210 x 452 mm
  • Packing Size: 508 x 278 x 492 mm
Motherboard TypeE-ATX, ATX, Micro-ATX, Mini-ITX
Drive Bays
  • 3.5Inch x2
  • 2.5Inch x4
Fan Support
  • Front: 120mm x3
  • Top: 120/140mm x2
  • Bottom: None
  • Rear: 120mm x1
Liquid Cooling Support(Maximum)
  • Front: 120/240/360 mm
  • Rear: 120mm
Pre-Installed Fans
  • Front: 120mm ARGB x3
  • Rear: 120mm ARGB x1
Compatibility (Maximum)
  • VGA Card Length: 360mm
  • CPU Cooler Height: 160mm
I/O PanelUSB 3.0 x1, USB 2.0 x2, Audio In x1, Mic x1, Led Control Button x1
Warranty1 Year
