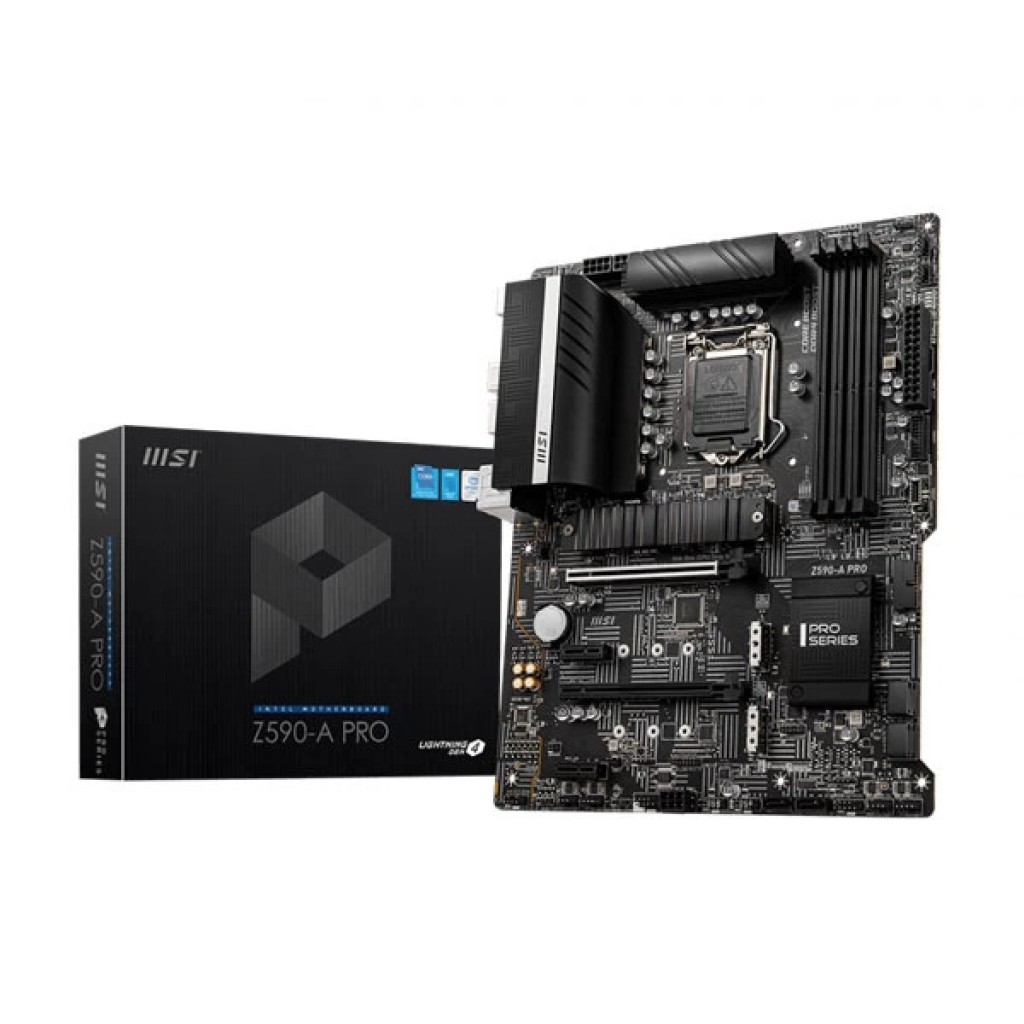

MSI Z590-A PRO Motherboard

MSI Intel 11th Gen Core Series ATX Motherboard, The Z590-A-PRO Features Intel 2.5 Gigabit Ethernet, Turbo USB, Quality VRM and DDR4 Speeds Upto 5333 MHz.

Features

Z590-A PRO

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

Specifications:

  • Processor


Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200


Chipset Intel® Z590 Chipset

  • Memory


4x DDR4 memory slots, support up to 128GB

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5333 MHz

1DPC 2R Max speed up to 4700+ MHz

2DPC 1R Max speed up to 4400+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

  • Expansion Slot


2x PCIe x16 slots

Support x16/ x4

PCI_E1 (from CPU)

Supports up to PCIe 4.0 for 11th Gen Intel® CPU

Supports up to PCIe 3.0 for 10th Gen Intel® CPU

PCI_E3 (from Z590 chipset)

Supports up to PCIe 3.0

2x PCIe 3.0 x1 slots (from Z590 chipset)

Onboard Graphics

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 12

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Multi-GPU Supports 2-Way AMD® CrossFire™ Technology

  • Storage


6x SATA 6Gb/s ports (from Z590 chipset)

3x M.2 slots (Key M)

M2_1 slot (from CPU) 1

Available only on 11th Gen Intel® CPU

Supports up to PCIe 4.0x4

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_21, M2_32 slots (from Z590 chipset)

Support up to PCIe 3.0x4

Support up to SATA 6Gb/s

Support 2242/ 2260/ 2280 storage devices

Intel® Optane™ Memory Ready

Support Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.

  • RAID


Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

  • USB


Intel® Z590 Chipset


Intel® Z590 Chipset

1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)

6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)

USB 2.0 Hubs GL850G

4x USB 2.0 Type-A ports on the back panel

4x USB 2.0 ports are available through the internal USB 2.0 connectors

  • Audio


Realtek®ALC897 Codec

7.1-Channel High Definition Audio

  • LAN


1x Intel® I225-V 2.5Gbps LAN controller

  • Internal connectors


1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

1x 6-pin ATX PCIe power connector

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x Serial port connector

1x Tuning controller connector

1x TBT connector (Supports RTD3)

  • Back panel ports


Keyboard / Mouse

DisplayPort

USB 2.0

LAN port

Audio connector

Flash BIOS Button

USB 2.0

HDMI

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2x2 20Gbps Type-C

USB 3.2 Gen 2 10Gbps Type-A

  • Dimensions

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)


Mounting- 9 mounting holes

Operating System- Support for Windows® 10 64-bit

Warranty- 3 Years
