- Stock: Out Of Stock
- Brand: ProLab Design
- Model: AI628
- SKU: TLG-004520
More from this brand

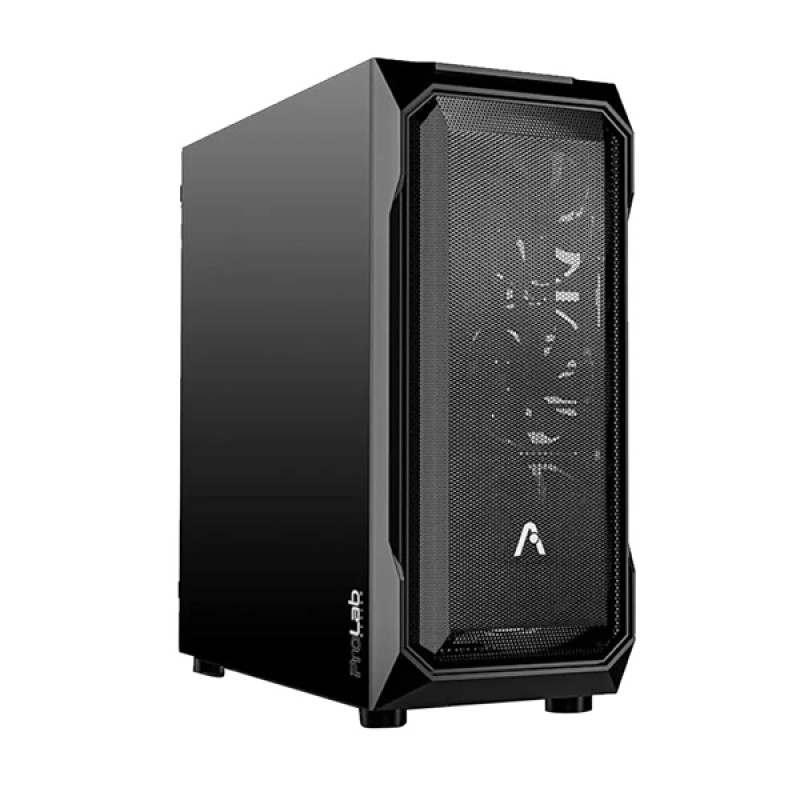

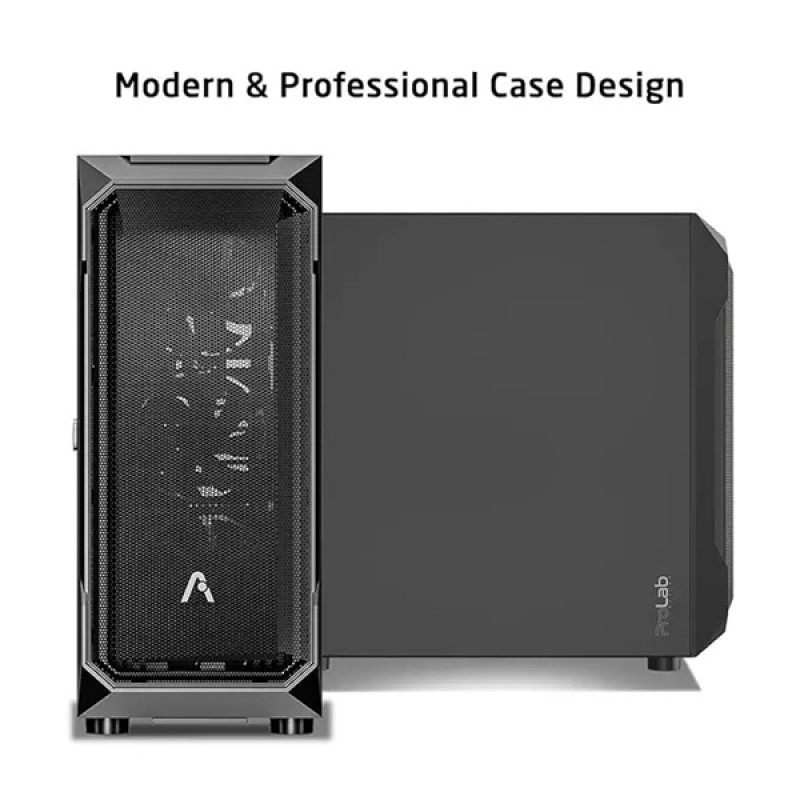

The ProLab Design AI628 is a compact mid-tower cabinet with an all-black look with fine front metal mesh. Suitable for Workstations, Home Servers, Audio and Video Production Systems, AI Servers, 3D Modeling Systems for architecture, and other use cases, this Mid-Tower Case is capable of housing the latest and greatest hardware from Intel, AMD, and NVIDIA.

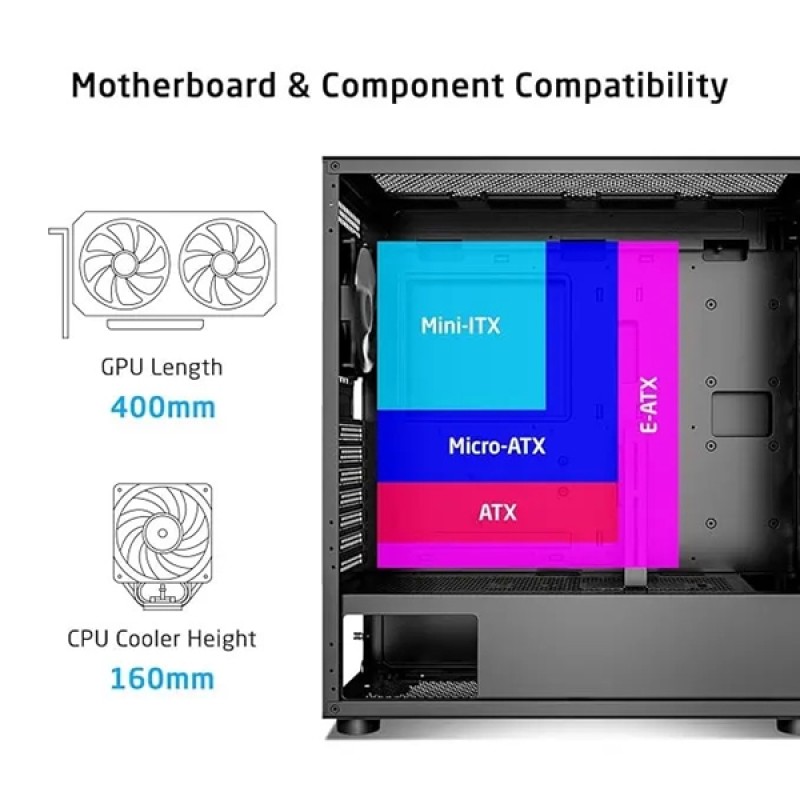

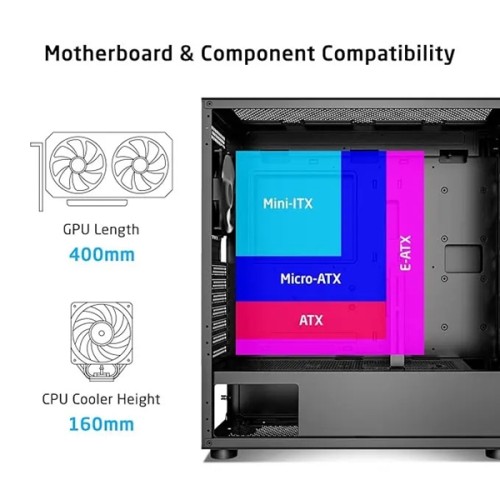

The latest generation of Motherboards up to E-ATX form factor, which may have LGA1851, AM5, or TRX5, TRX4/WRX80 socket, or even the server-grade Xeon or EPYC CPUs, and Graphics Cards of GeForce RTX, Radeon, Quadro, and Radeon Pro Cards.
The PSU shroud and the back panel can house up to 3×3.5″ HDDs and 2×2.5″ SSDs.
Configurable in Liquid or Air Cooling Solution, this cabinet can accommodate a 360mm Radiator on top, front, or up to 3 x 120 mm fans. The case comes with 3 x 120 mm High-Performance DC fans on the front and 1 x 120 mm Fan in the back, providing an out-of-the-box positive airflow configuration.

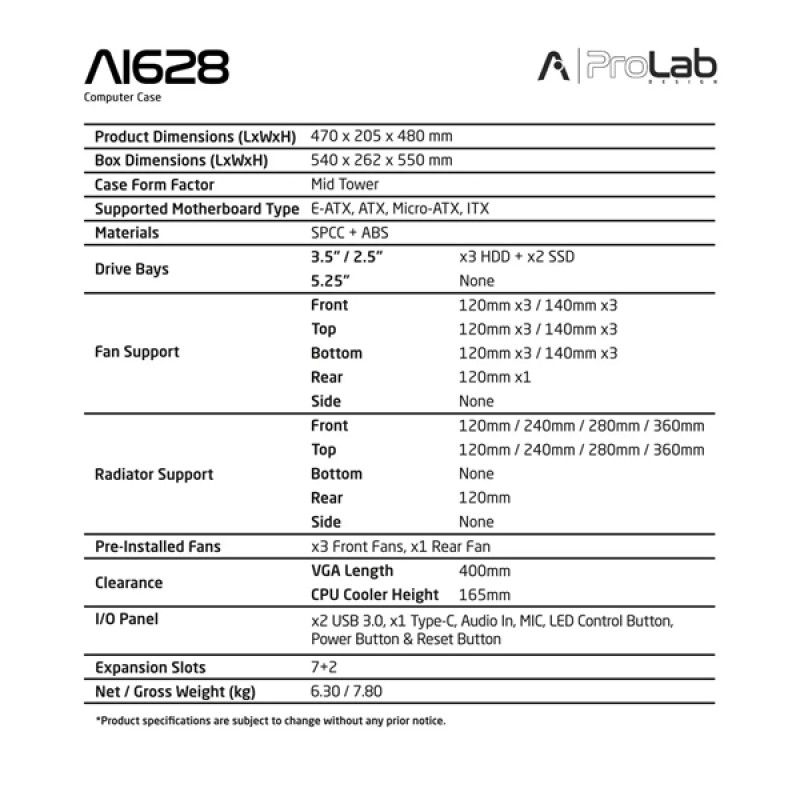

Technical Specifications
| Product Dimensions (LxWxH) | 470 x 205 x 480 mm |
| Box Dimensions (LxWxH) | 540 x 262 x 550 mm |
| Case Form Factor | Mid Tower |
| Supported Motherboard Type | E-ATX/ATX/Micro-ATX/Mini-ITX |
| Materials | SPCC + ABS |
| 3.5″ + 2.5″ Drive Bays | 3(HDD) + 2(SSD) |
| Front FAN Support | 3 x 140mm / 3 x 120mm |
| Top FAN Support | 3 x 140mm / 3 x 120mm |
| Bottom FAN Support | 3 x 140mm / 3 x 120mm |
| Front Radiator Support | 120mm / 240mm / 280mm / 360mm |
| Top Radiator Support | 120mm / 240mm / 280mm / 360mm |
| GPU Clearence | 400mm |
| CPU Cooler Clearance | 165mm |
| I/O Panel | 2x USB 3.0, 1x Type C, Audio In, Microphone, Power Button |
| Expansion Slots | 7 + 2 |
| Net / Gross Weight (kg) | 6.30 / 7.80 |
