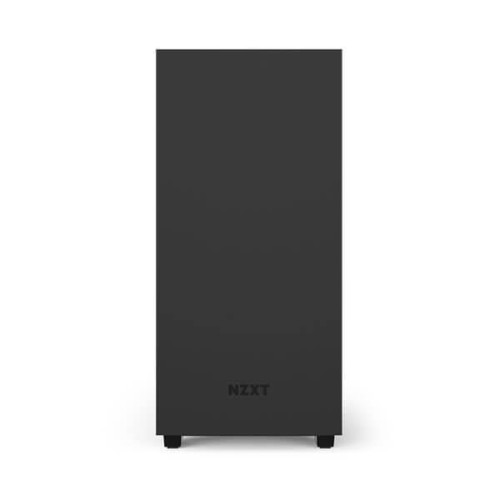

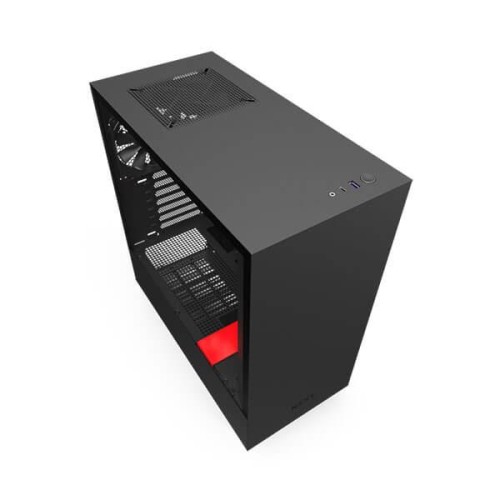

NZXT H510 Matte Black-Red

Dimensions

• W: 210mm H: 435mm D: 428mm (without feet)
• W: 210mm H: 460mm D: 428mm (with feet)

Material(s)

SGCC Steel, Tempered Glass

Weight

6.6 kg

Motherboard Support

Mini-ITX, MicroATX, and ATX

I/O Ports

• 1x USB 3.1 Gen 2 Type-C
• 1x USB 3.1 Gen 1 Type-A
• 1x Headset audio Jack

Front I/O internal header

• 1x USB 3.1 Gen 2 Internal Header
• 1x USB 3.1 Gen 1 Internal Header
• 1x HD Audio Header

Filters

All Air Intakes

Included Accessories

• Installation screws
• 10x Cable ties
• 1x Headset Audio Jack splitter (4 pole to 3 pole)

Drive Bays

• 2.5”: 2+1
• 3.5”: 2+1

Expansion Slots

7

Radiator Support

• Front: 2x 140 or 2x 120mm with Pull
• Rear: 1x 120mm

Fan Support

• Front: 2 x 120/ 2 x 140mm
• Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
• Rear: 1x 120mm (1 Aer F120 Case Version included)

Fan Specs

Aer F120 (Case Version)

• Speed: 1200 ± 200 RPM
• Airflow: 50.42 CFM
• Noise: 28 dBA
• Bearing: Rifle Bearing

Clearance

• Cable Management: 19-23mm
• GPU Clearance: Up to 381mm
• CPU Cooler: Up to 165mm
• Front Radiator: 60mm
• Rear Radiator: 60mm
• Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)

Warranty

2 Years
