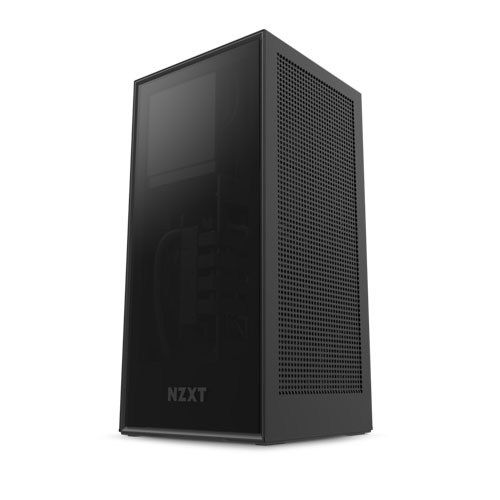

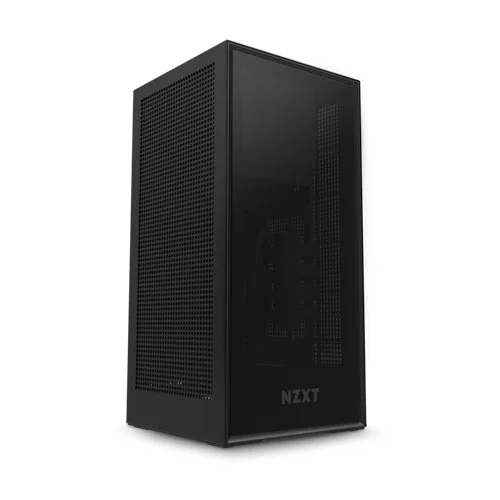

NZXT H1 – Black
The all-new NZXT H1 provides a beautifully small vertical chassis, maintaining full-sized GPU compatibility. The building experience is streamlined, with pre-routed cable channels and an integrated PSU and AIO liquid cooler. The dual-chamber exhaust layout maintains superior cooling for the CPU and GPU, providing each with a dedicated air source.
SMALL BUT POWERFUL
The compact vertical design provides a small spatial footprint while maintaining support for most full-sized GPU’s on the market so you can maintain your desk real estate without sacrificing graphics power.
A SIMPLE BUILD

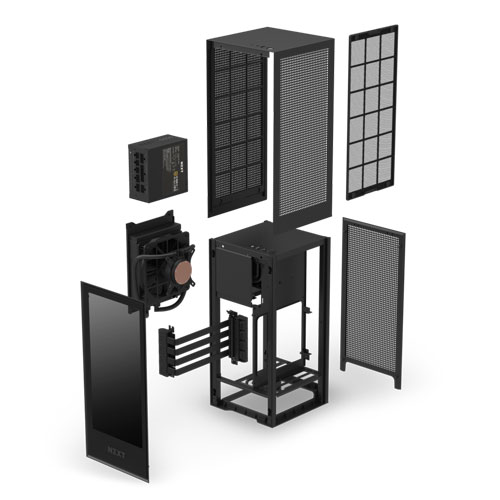

The toolless SSD tray and riser card are incredibly simple to install. In addition to pre-routed cables, the motherboard I/O faces down, routing all cables through the bottom of the case for a clean, simplified appearance.
Integrated power supply and AIO liquid cooler provide a better build experience, along with pre-routed cables that make it easy to manage the clutter and cut down on build time. An integrated PCIe Riser card is also included for vertical GPU mounting.
The dual-chamber airflow is thermally designed to allow the CPU, GPU, and PSU to pull in fresh air, and exhaust hot air without affecting temperatures of neighboring components..
|Materials||SGCC Steel and Tempered Glass|
|Motherboard Support||Mini-ITX (Increased Wi-Fi compatibility with a wired antenna)|
|CPU & Socket||Intel: 115X |
AMD: AMD4, FM2+, FM2, FM1, AM3+, AM3, AM2

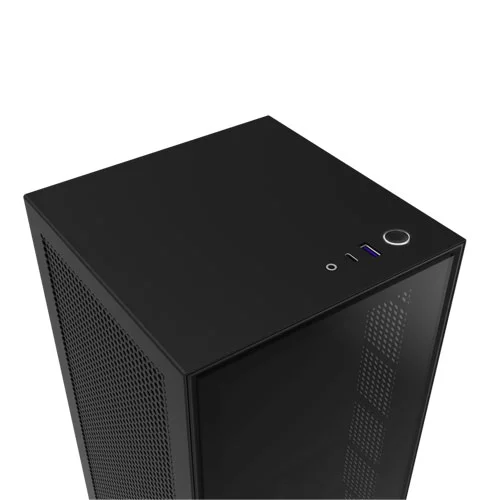

|Front I/O Ports||1x USB 3.2 Gen 2 Type-C|
1x USB 3.2 Gen 1 Type-A
1x 4 Pole Headset Audio Jack
|Filters||All Air Intakes|

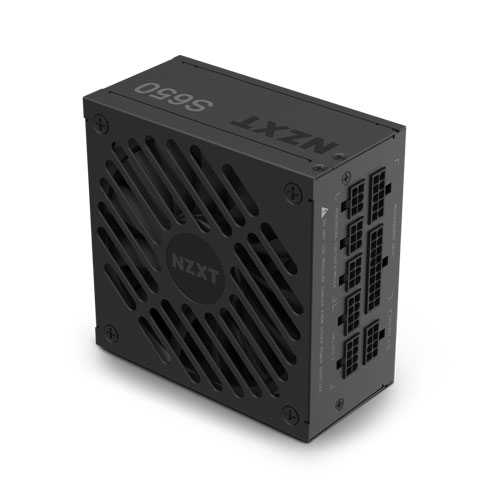

|Included Accessories||650W SFX-L 80Plus Gold Fully Modular Power Supply|

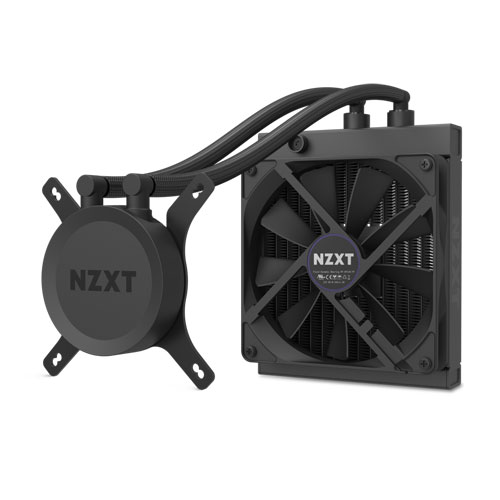

140mm AIO Liquid Cooler
PCIe 16x Gen3 High-Speed Riser Card
|Drive Bays||2.5″: 2|
|Radiator Support ||1x 140mm (Integrated AIO 140mm Liquid Cooler for CPU)|
|Clearance||GPU Clearance: Dimension – 305mm x 128mm; 265mm x 145mm|
Thickness – Up to 2.5 Slots
Memory Height: 45mm
|Warranty||3-year warranty on case, riser card, and AIO|
10-year warranty on PSU
