Msi MAG X570s Torpedo Max Motherboard

Msi MAG X570s Torpedo Max Motherboard
Msi MAG X570s Torpedo Max Motherboard
Msi MAG X570s Torpedo Max Motherboard
Out Of Stock
Msi MAG X570s Torpedo Max Motherboard
Msi MAG X570s Torpedo Max Motherboard
Msi MAG X570s Torpedo Max Motherboard
Msi MAG X570s Torpedo Max Motherboard
  • Stock: Out Of Stock
  • Model: MAG-X570S-TORPEDO-MAX
  • SKU: TLG-003434
  • EAN: 4719072868772
Rs.22,400.00
Ex Tax: Rs.18,983.05

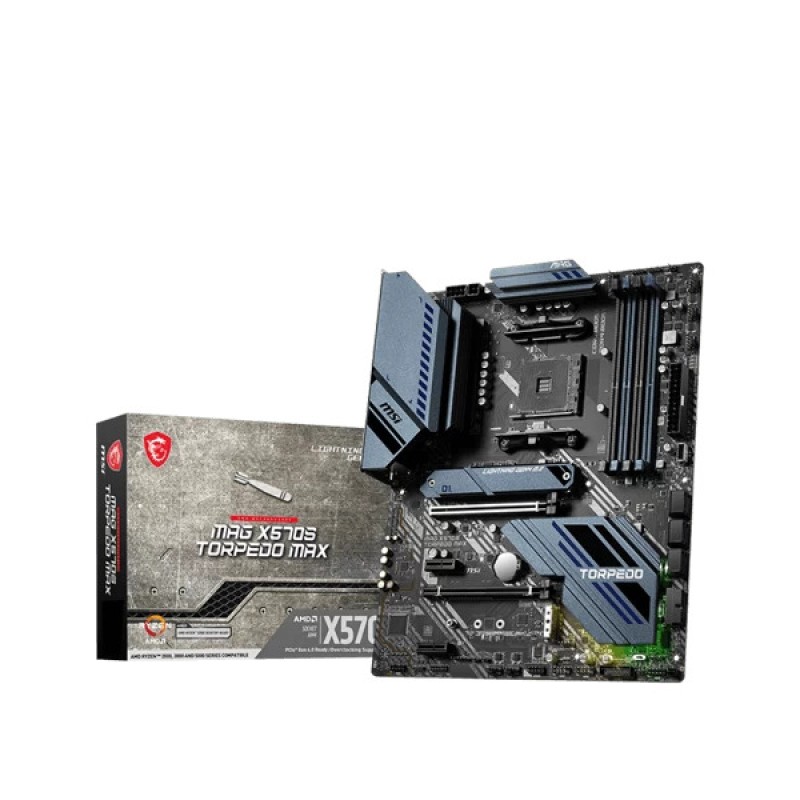

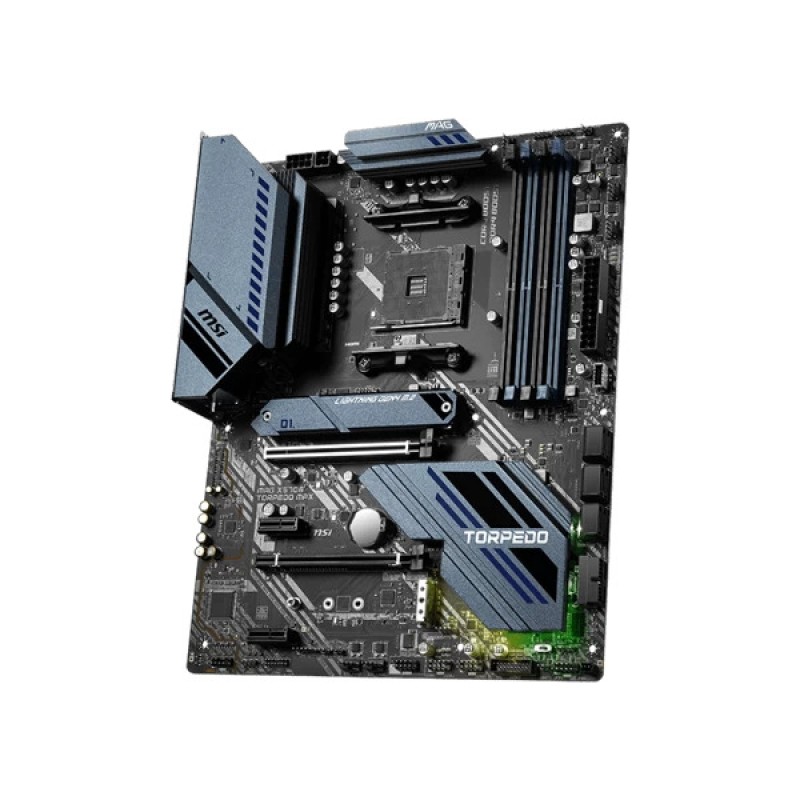

Msi MAG X570s Torpedo Max Motherboard

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards.

High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

Key Features

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports DDR4 Memory, up to 5100(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™



Specifications:

CPU
  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports Socket AM4
Chipset
  • AMD X570 Chipset
MEMORY
  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
  • Max overclocking frequency by A-XMP OC mode:
  • For Ryzen™ 5000 G-Series & 4000 G-Series processors
  • 1DPC 1R Max speed up to 5100 MHz
  • 1DPC 2R Max speed up to 4000 MHz
  • 2DPC 1R Max speed up to 4266 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • For Ryzen™ 5000 Series & 3000 Series processors
  • 1DPC 1R Max speed up to 5100 MHz
  • 1DPC 2R Max speed up to 3866 MHz
  • 2DPC 1R Max speed up to 4000 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
EXPANSION SLOT
  • Supports PCIe 4.0 / PCIe 3.0 specification
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • 1x PCIe x16 slot (From processor)
  • PCI_E1 supports PCIe 4.0/ 3.0 x16
  • 1x PCIe x16 slot (From X570 chipset)
  • PCI_E3 supports PCIe 4.0/ 3.0 x4
  • 2x PCIe 3.0 x1 slots (From X570 chipset)
MULTI-GPU
  • Supports AMD CrossFire™ Technology
ONBOARD GRAPHICS
  • Supports AMD CrossFire™ Technology
STORAGE
  • 6x SATA 6Gb/s ports (from AMD X570 Chipset)
  • 2x M.2 slots (Key M)
  • Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
  • Supports up to SATA 6Gb/s
  • M2_1 slot (from Processor)
  • Support 2280/22110 storage devices
  • M2_2 slot (from AMD X570 Chipset)
  • Supports 2242/ 2260/ 2280 storage devices
RAID
  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD X570 Chipset

  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO

Realtek® ALC4080 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® 8125B 2.5Gbps LAN Controller
  • 1x Realtek® RTL8111H 1Gbps LAN Controller
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
LED FEATURE
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
  • 1X EZ LED Control switch

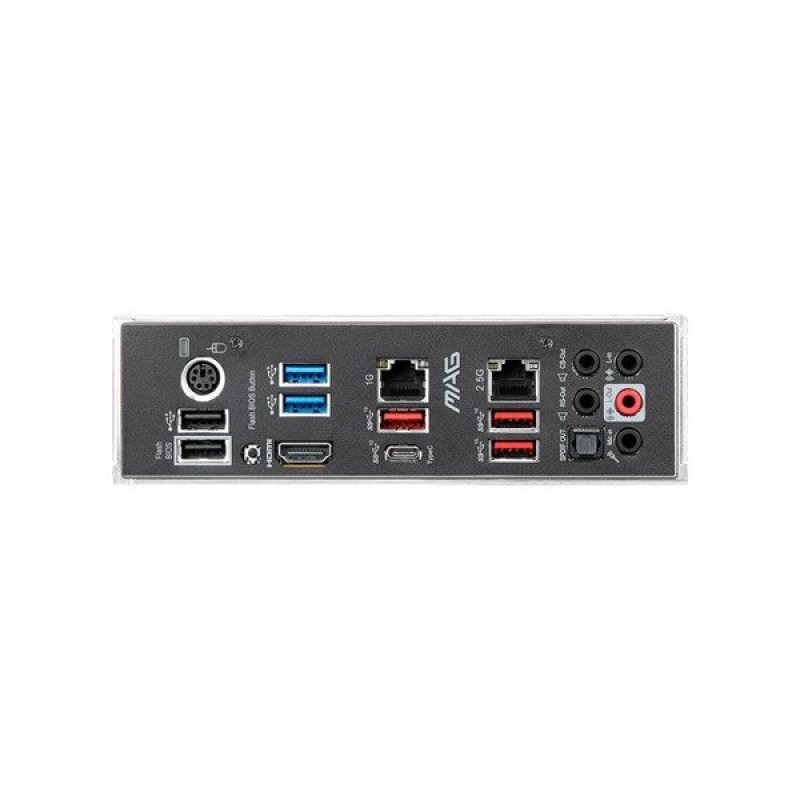

BACK PANEL PORTS
  • PS/2 Mouse / Keyboard
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Gigabit LAN Port
  • 2.5G LAN Port
  • HD Audio Connectors
  • USB 2.0 Port
  • Flash BIOS Button
  • HDMI 2.1 Port
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • Optical S/PDIF OUT
DIMENSIONS
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
OPERATING SYSTEM
  • Support for Windows® 10 64-bit

Warranty

    3 years

    Technical
    CHIPSETX570
    TLG GAMING25/06/2021
