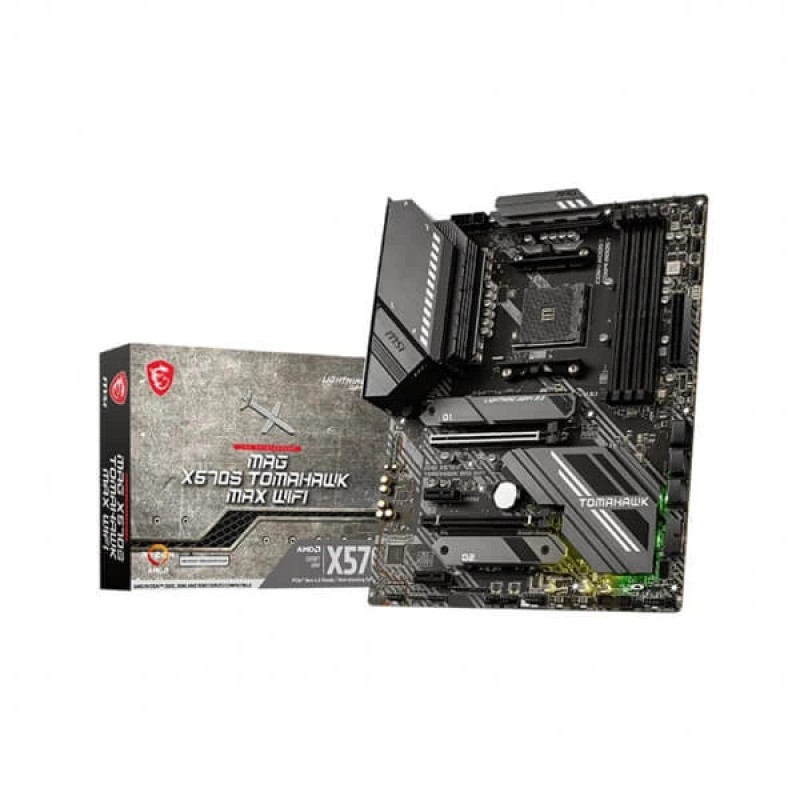

Msi MAG X570s Tomahawk wifi

Msi MAG X570s Tomahawk wifi
Out Of Stock
Msi MAG X570s Tomahawk wifi
This product qualifies for free shipping
Get free shipping on selected products at Tlg Gaming India!
  • Stock: Out Of Stock
  • Model: MAG-X570S-TOMAHAWK-MAX-WIFI
  • SKU: TLG-003580
  • EAN: 4719072864217
Rs.21,499.00
Ex Tax: Rs.18,219.49

MSI MAG X570s Tomahawk wifi is an ATX x570 Motherboard supporting AMD's AM4 platform processors and is ideal for 5000 series AMD's processors. It comes with 2.5Gbps LAN provides incredible data transfer speed faster than a general Gigabit LAN. This is a premium solution for demanding users.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB, and Mystic Light turn any gaming experience into an immerse one.

CONNECTIVITY

Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

LIGHTNING GEN 4 M.2

High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

ENHANCED PERFORMANCE

With more cores’ processors, thermal and power design is more important to ensure the temperature is lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPUs run at full speed with MSI motherboards.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors
  • Supports DDR4 Memory, up to 5100(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for high-performance systems and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe-based SSDs
  • AUDIO BOOST 5: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Specifications:

Processor
  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors1
  • Supports Socket AM4
ChipsetAMD X570 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
  • Max overclocking frequency by A-XMP OC mode:
  • For Ryzen™ 5000 G-Series & 4000 G-Series processors
  • 1DPC 1R Max speed up to 5100 MHz
  • 1DPC 2R Max speed up to 4000 MHz
  • 2DPC 1R Max speed up to 4266 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • For Ryzen™ 5000 Series & 3000 Series processors
  • 1DPC 1R Max speed up to 5100 MHz
  • 1DPC 2R Max speed up to 3866 MHz
  • 2DPC 1R Max speed up to 4000 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slot
  • Supports PCIe 4.0 / PCIe 3.0 specification
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • 1x PCIe x16 slot (From processor)
  • PCI_E1 supports PCIe 4.0/ 3.0 x16
  • 1x PCIe x16 slot (From X570 chipset)
  • PCI_E3 supports PCIe 4.0/ 3.0 x4
  • 2x PCIe 3.0 x1 slots (From X570 chipset)
Multi-GPUSupports AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz 1 2
  • Available only on processors featuring integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.
Storage
  • 6x SATA 6Gb/s ports (from AMD X570 Chipset)
  • 2x M.2 slots (Key M)
  • Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processor
  • Supports up to SATA 6Gb/s
  • M2_1 slot (from Processor)
  • Support 2280/22110 storage devices
  • M2_2 slot (from AMD X570 Chipset)
  • Supports 2242/ 2260/ 2280 storage devices
RAIDSupports RAID 0, RAID 1, and RAID 10
USB

AMD X570 Chipset

  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio

Realtek® ALC4080 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN1x Realtek® 8125B 2.5Gbps LAN Controller
Wireless LAN & Bluetooth

Intel® Wi-Fi 6E AX210

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.22, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.

Bluetooth 5.2 will be ready in WIN10 21H1.

Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
LED Feature
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
  • 1X EZ LED Control switch
Back panel ports
  • PS/2 Mouse / Keyboard
  • Wi-Fi Antenna
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • 2.5G LAN Port
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0 Port
  • HDMI 2.1 Port
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • Optical S/PDIF OUT
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Operating SystemSupport for Windows® 10 64-bit
Warranty3 Years
General
LAUNCH YEAR2021
MODELMAG-X570S-TOMAHAWK-MAX-WIFI
SERIESX570
TYPEATX
WARRANTY3 Yrs
Speed
CLOCK SPEEDDDR4-5100MHz
Technical
CHIPSETAM4
LED TYPEMYSTIC LIGHT and SYNC
