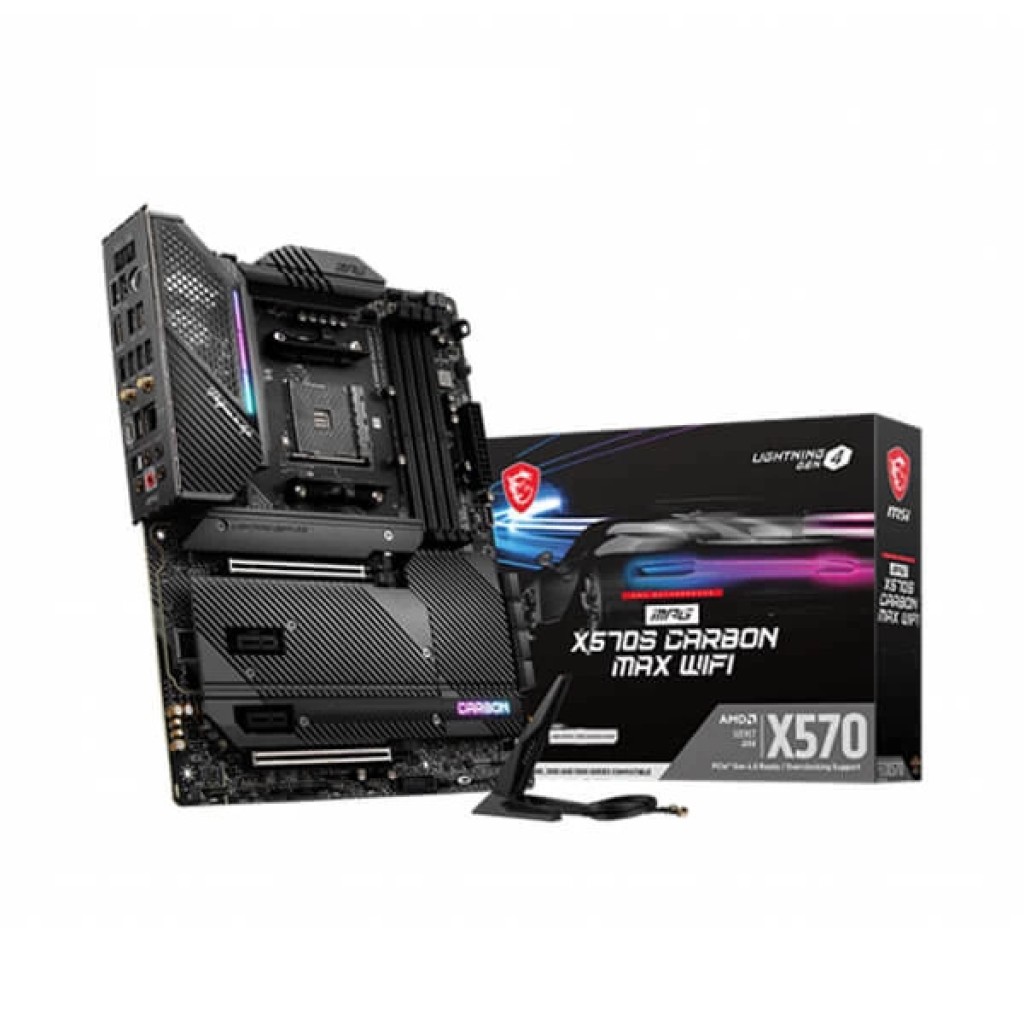

Msi MPG X570s Carbon max Wifi Motherboard
Key Features
- Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
- Supports DDR4 Memory, up to 5300+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
- Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specifications:
| Processor | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors1 Supports Socket AM4 |
| Chipset | AMD X570 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz 1DPC 2R Max speed up to 4266 MHz 2DPC 1R Max speed up to 4400 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen™ 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slots | Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen™ 3000 G-and 2000 G- series desktop processors 1x PCIe x16 slot (From X570 chipset) PCI_E41 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz |
| Multi-GPU | Supports AMD CrossFire™ Technology |
| Storage | 8x SATA 6Gb/s ports (From X570 chipset) 4x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors M2_1 (From processor) Supports 2242/ 2260/2280/22110 storage devices Supports up to SATA 6Gb/s M2_2, M2_31 and M2_4 slots (from AMD X570 Chipset) M2_2 & M2_4 slots support 2242/ 2260/ 2280 storage devices M2_3 slot supports 2242/ 2260/2280/22110 storage devices M2_2 & M2_3 slots support up to SATA 6Gb/s |
| RAID | AMD X570 Chipset
|
| USB | AMD X570 Chipset
AMD Processor
|
| Audio | Realtek® ALC4080 Codec
|
| LAN | 1x Realtek® RTL8125B 2.5 Gbps LAN controller |
| WiFi & Bluetooth | Intel® Wi-Fi 6E AX210 |
| Internal connectors |
|
| LED Feature |
|
| Back panel ports |
|
| Dimensions |
|
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Technical | |
| CHIPSET | X570 |
