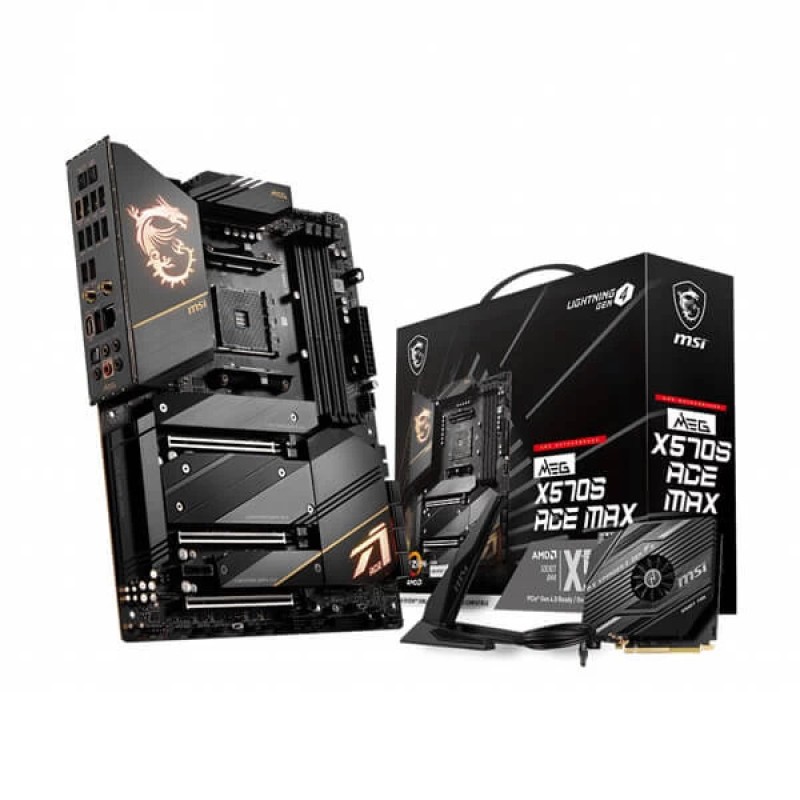

Msi MEG X570s Ace MAX Motherboard

Msi MEG X570s Ace MAX Motherboard
Out Of Stock
Msi MEG X570s Ace MAX Motherboard
  • Stock: Out Of Stock
  • Model: MEG-X570S-ACE-MAX
  • SKU: TLG-003527
Rs.40,999.00
Ex Tax: Rs.34,744.92

Msi MEG X570s Ace MAX Motherboard

Key Highlights

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
  • Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
  • Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme performance with low temp.
  • 2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
  • Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.


PREMIUM HARDWARE DESIGN

With Years Of Experience, MSI is no Stranger to Building High-Performance Motherboards.Our R&D and Engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and devloped products for reliability even under extreme conditions.


THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.


DOUBLE SIDE M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, the double side M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.


FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.


DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.


ENHANCED PERFORMANCE

High Performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.


LIGHTNING GEN 4 M.2

Utilizing 3rd Gen Ryzen processors, MSI X570S motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.


FAST AND FUTURE-READY STORAGE

MSI X570S motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.


M.2 XPANDER-Z GEN 4 S

This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking.


HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.


SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.


OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.


Specifications:

CPU
  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors.
  • Supports Socket AM4
ChipsetAMD X570 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC 1
  • Max frequency by A-XMP OC mode:
  • For Ryzen™ 5000 G-Series & 4000 G-Series processors
  • 1DPC 1R Max speed up to 5300 MHz (support overclocking up to 5500+ MHz)
  • 1DPC 2R Max speed up to 4266 MHz
  • 2DPC 1R Max speed up to 4400 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • For Ryzen™ 5000 Series & 3000 Series processors
  • 1DPC 1R Max speed up to 5100 MHz
  • 1DPC 2R Max speed up to 4000 MHz
  • 2DPC 1R Max speed up to 4000 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slots
  • Supports PCIe 4.0 / PCIe 3.0
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • 2x PCIe x16 slots (From processor)
  • PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors
    PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors
  • 1x PCIe x16 slot (From X570 chipset)
  • PCI_E4 supports x8 1
  • 1x PCIe x1 slot (From X570 chipset)
Multi-GPU
  • Supports NVIDIA® SLI® Technology
  • Supports AMD CrossFire™ Technology
LAN1x Realtek® RTL8125B 2.5 Gbps LAN controller
Wireless LAN & Bluetooth®

Intel® Wi-Fi 6E AX210

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1
    (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.2 2, FIPS, FISMA
Audio

Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
Storage
  • 8x SATA 6Gb/s ports (From X570 chipset) 1
  • 4x M.2 slots (Key M)
  • Supports PCIe 4.0 / PCIe 3.0
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • Support SATA 6Gbps (For M2_1, M2_3 & M2_4)
  • M2_1 (From processor)
  • Supports 2280/ 22110 storage devices
  • M2_2 (From X570 chipset)
  • Supports 2260/ 2280 storage devices
  • M2_3 1 (From X570 chipset)
  • Supports 2280/ 22110 storage devices
  • M2_4 1 (From X570 chipset)
  • Supports 2260/ 2280 storage devices
RAID

AMD X570 Chipset

  • Supports RAID 0, RAID 1 and RAID 10
USB

AMD X570 Chipset

  • 1x USB 3.2 Gen 2 10Gbps Type-C internal connector
  • 4x USB 3.2 Gen 1 5Gbps ports available through internal USB connectors
  • 1x USB 2.0 port on the back panel
    Asmedia® 3241 Chipset
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
    USB 3.0 Hub
  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
    USB 2.0 Hub
  • 7x USB 2.0 ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD Processor

  • 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 8x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 2x USB 2.0 connectors (support
  • additional 4 USB ports)
  • 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports)
  • 1x USB 3.2 Gen 2 10Gbps Type-C connector
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 2x 2-pin Thermal sensors connectors
  • 1x Water Flow Meter connector
  • 1x Tuning Controller connector
Back panel ports
  • Clear CMOS Button
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • 2.5G LAN
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
  • Optical S/PDIF-Out
LED Features
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR connector
  • 1x EZ LED Control switch
  • 1x 2-Digit Debug Code LED
  • 4x EZ Debug LEDs
I/O ControllerNUVOTON NCT6687D Controller Chip
Hardware Monitor
  • CPU/ System/ Chipset temperature detection
  • CPU/ System/ Pump fan speed detection
  • CPU/ System/ Pump fan speed control
Form Factor
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty3 Years
Technical
CHIPSETX570
