Msi X299 Pro 10G Motherboard

Msi X299 Pro 10G Motherboard
Msi X299 Pro 10G Motherboard
Msi X299 Pro 10G Motherboard
Msi X299 Pro 10G Motherboard
Out Of Stock
Msi X299 Pro 10G Motherboard
Msi X299 Pro 10G Motherboard
Msi X299 Pro 10G Motherboard
Msi X299 Pro 10G Motherboard
Msi X299 Pro 10G Motherboard
  • Stock: Out Of Stock
  • Model: X299-PRO-10G
  • SKU: TLG-002435
Rs.33,599.00
Ex Tax: Rs.28,473.73

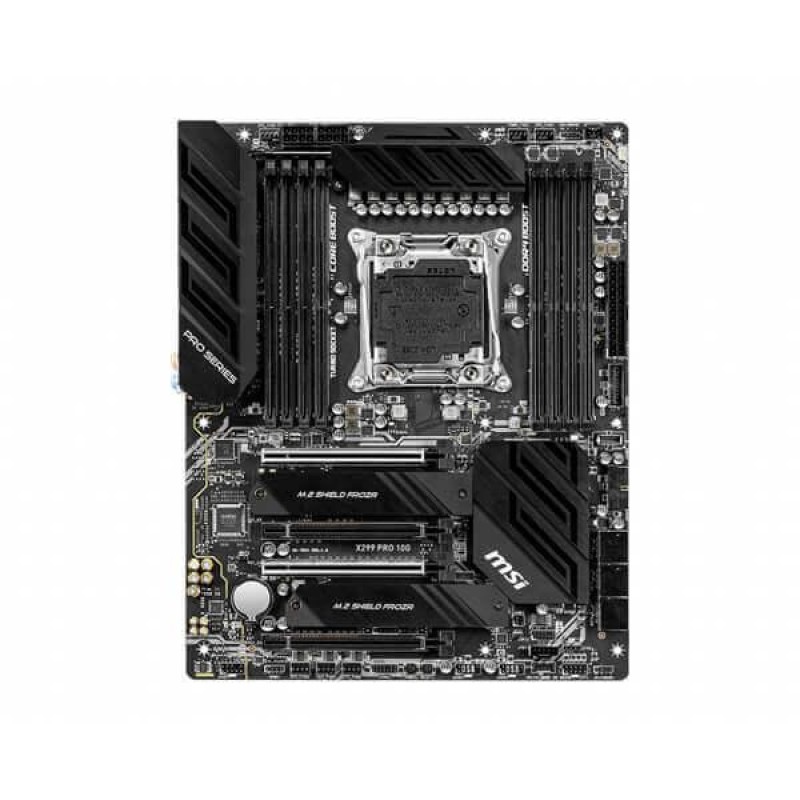

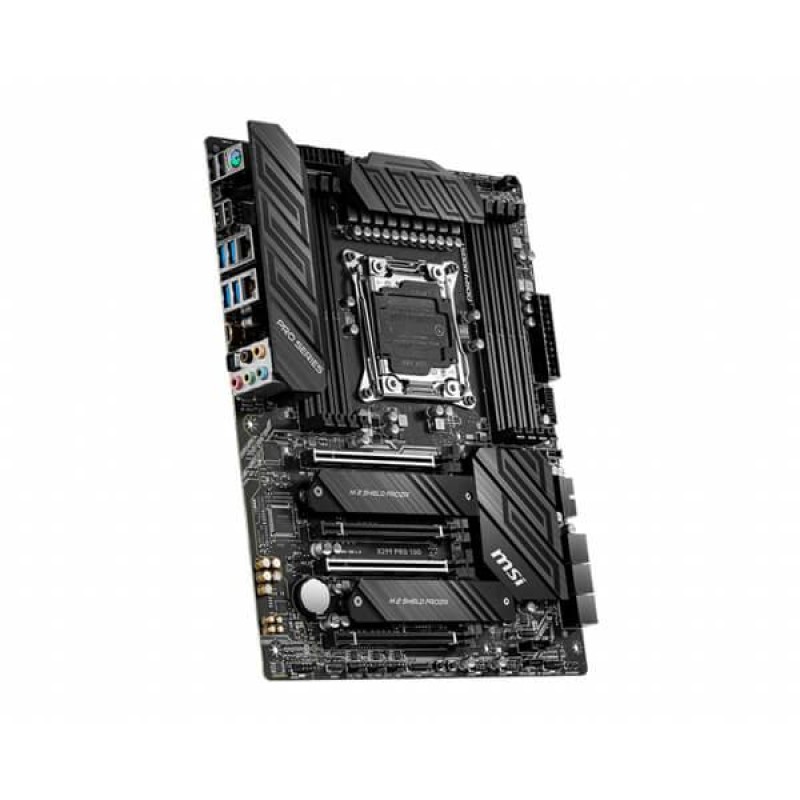

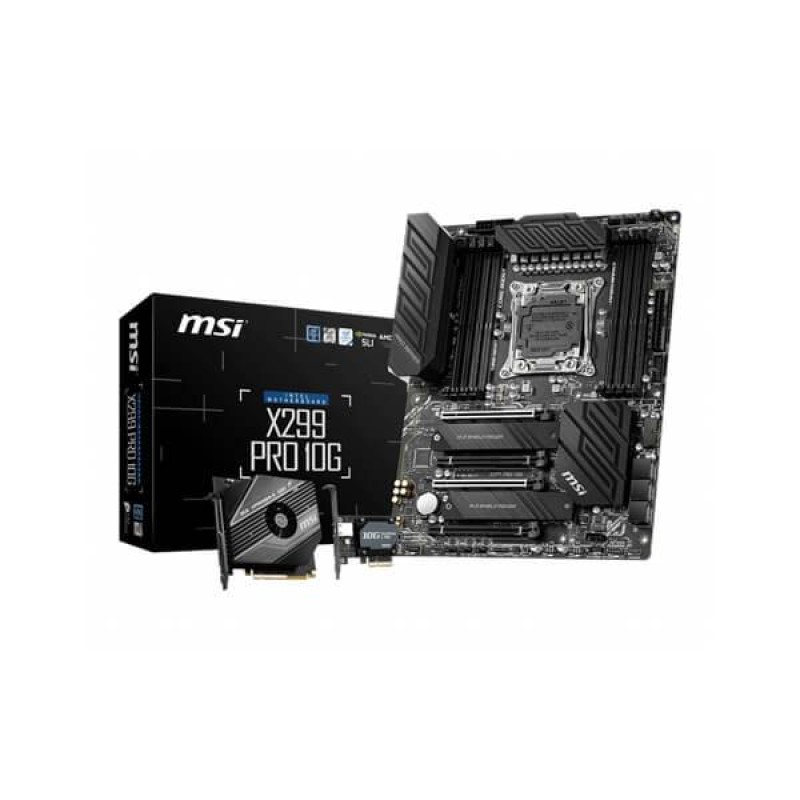

Msi X299 Pro 10G Motherboard

Features

Inspired from architectural design with the extended heatsink for having better thermal solution; high speed USB 3.2 Gen2x2 solution, Core Boost, DDR4 Boost, 10G LAN card, Dual LAN onboard, Twin Turbo M.2 with M.2 Shield Frozr, M.2 Xpnader-Z

  • Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
  • Supports DDR4 Memory, up to 4200+(OC) MHz
  • Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
  • Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • M.2 XPANDER-Z: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
  • Set Core Power Free: Core Boost, 2x8 pin CPU power connector, Core Boost, DDR4 Boost.
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
  • Dual LAN onboard: Premium network solution included 1x 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • 10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency.
  • Audio Boost 4: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™

Specifications


ProcessorSupports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066
ChipsetIntel® X299 Chipset
Memory
  • 8 x DDR4 memory slots, support up to 256GB
    • Supports DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz
  • Quad channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • Supports non-ECC UDIMM memory
  • Supports un-buffered memory
Slots
  • 4x PCIe 3.0 x16 slots
    • Support x16/x8/x16/x8 mode with the 48-lane CPU.
    • Support x16/x4/x16/x8 mode with the 44-lane CPU.
    • Support x16/x4/x8/x0 mode with the 28-lane CPU.
  1. Please refer to user manual for PCIe 3.0 bandwidth table.
Multi-GPU
  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
Storage

Intel® X299 Chipset

  • 6 x SATA 6Gb/s ports
  • 2 x M.2 slot (Key M)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready
  1. The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot.
  2. The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane.
  3. The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot.
  4. M2_2 supports Intel® Optane™ Memory by switching to PCH lanes.
RAID

Intel® X299 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB

ASMedia® ASM3242 Chipset

  • 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

ASMedia® ASM3142 Chipset

  • 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector

Intel® X299 Chipset

  • 8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
  • 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel I219-V Gigabit LAN controller
  • 1 x Realtek RTL8125-CG 2.5G LAN controller
  • 1 x Aquantia® AQC107 10-Gigabit LAN card
  1. I219 LAN doesn’t support G3 to S5 Wake
Internal connectors
  • 1 x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 1x USB 3.2 Gen2 Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Virtual RAID on CPU connector
  • 1x Thunderbolt Add-on Card Connector
Back panel ports
  1. Keyboard / Mouse
  2. Gigabit LAN
  3. 2.5G LAN
  4. Audio Connectors
  5. USB 2.0
  6. Clear CMOS Button
  7. USB 2.0
  8. USB 3.2 Gen1 Type-A
  9. USB 3.2 Gen1 Type-A
  10. USB 3.2 Gen2x2 20G Type-C
  11. Optical S/PDIF out
Dimensions
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
Mounting9 mounting holes
Operating SystemSupport for Windows® 10 64-bit
Warranty3 Years
Technical
CHIPSETX299
