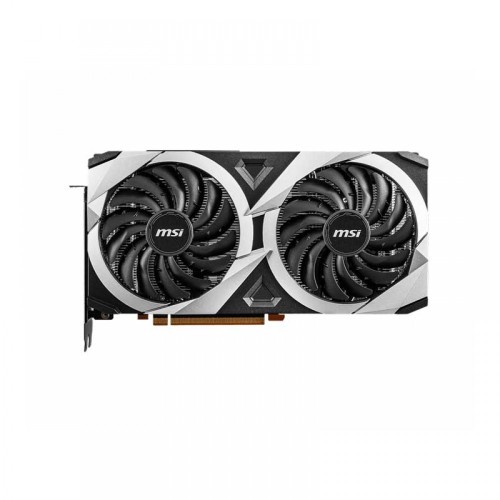

Msi RX 6700 XT Mech OC 12GB

Performance to dominate your game. The AMD Radeon™ RX 6700 XT graphics card, powered by AMD RDNA™ 2 architecture, featuring 40 powerful enhanced Compute Units, the all new AMD Infinity Cache and 12GB of dedicated GDDR6 memory, is engineered to deliver ultra-high frame rates and powerhouse 1440p resolution gaming.

ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.

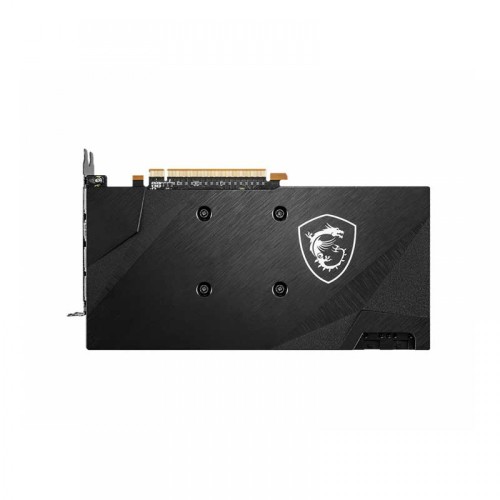

BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.

BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

FORGED FROM ENHANCED MATERIALS
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.

TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.

POWERHOUSE PERFORMANCE FOR 1440P
AMD Radeon™ RX 6700 XT graphics cards deliver serious 1440p gaming and ultra-high frame rates. Get up to 40 high-performance compute units, groundbreaking AMD Infinity Cache, and up to 12GB of dedicated GDDR6 memory. Experience new levels of gaming performance with AMD Smart Access Memory technology when you pair an AMD Radeon™ RX 6700 XT graphics card with an AMD Ryzen™ 5000 Series desktop processor.

VIVID VISUALS
With immersive gaming technologies and support for DirectX® 12 Ultimate, AMD Radeon™ RX 6700 XT graphics cards draw you into the action. Experience 1440p gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.

ELEVATED EXPERIENCES
Level up to ultimate responsiveness and smooth gaming with low-latency gaming technology from AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. 1, 2 Enhance your gaming experience with the latest HDMI™ 2.1 VRR technology, with over 1300 AMD FreeSync™ gaming displays3 to choose from, and support for motherboards with PCIe® 4.0 technology.

Performance to dominate your game. The AMD Radeon™ RX 6700 XT graphics card, powered by AMD RDNA™ 2 architecture, featuring 40 powerful enhanced Compute Units, the all new AMD Infinity Cache and 12GB of dedicated GDDR6 memory, is engineered to deliver ultra-high frame rates and powerhouse 1440p resolution gaming.

Boost Clock / Memory Speed

• Up to 2620 MHz / 16 Gbps
• 12GB GDDR6

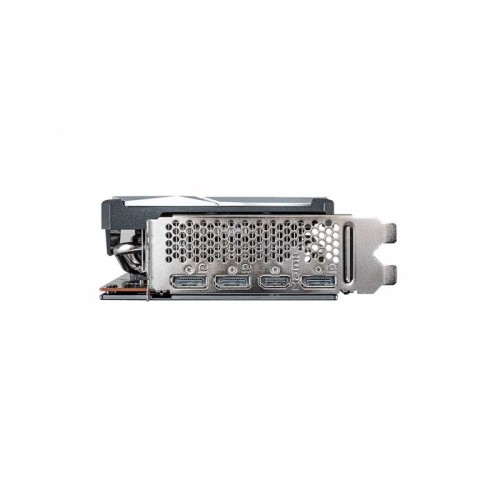

• DisplayPort x 3 (v1.4)
  HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)

Dual Fan Thermal Design

• TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.

Afterburner Overclocking Utility

• Supports multi-GPU setups.
• OC Scanner: An automated function finds the highest stable overclock settings.
• On Screen Display: Provides real-time information of your system’s performance.
• Predator: In-game video recording.

Dragon Center

• MSI’s exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.

Specification :

MODEL NAME     RX 6700 XT MECH 2X 12G OC

GRAPHICS PROCESSING UNIT Radeon™ RX 6700 XT

INTERFACE PCI Express® Gen 4

CORES             2560 Units

CORE CLOCKS Boost: Up to 2620 MHz / Game: Up to 2474 MHz

MEMORY SPEED 16 Gbps

MEMORY     12GB GDDR6

MEMORY BUS 192-bit

OUTPUT DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K@120Hz/8K@60Hz

                                        and VRR as specified in HDMI 2.1)

HDCP SUPPORT Y

POWER CONSUMPTION TBD

POWER CONNECTORS 8-pin x 2

RECOMMENDED PSU 650 W

CARD DIMENSION (MM) 247 x 131 x 51 mm

WEIGHT (CARD / PACKAGE) 921 g / 1393 g

DIRECTX VERSION SUPPORT 12 API

OPENGL VERSION SUPPORT 4.6

MULTI-GPU TECHNOLOGY         Y

AFTERBURNER OC     Y

MAXIMUM DISPLAYS     4

VR READY                       Y

DIGITAL MAXIMUM RESOLUTION 7680 x 4320
