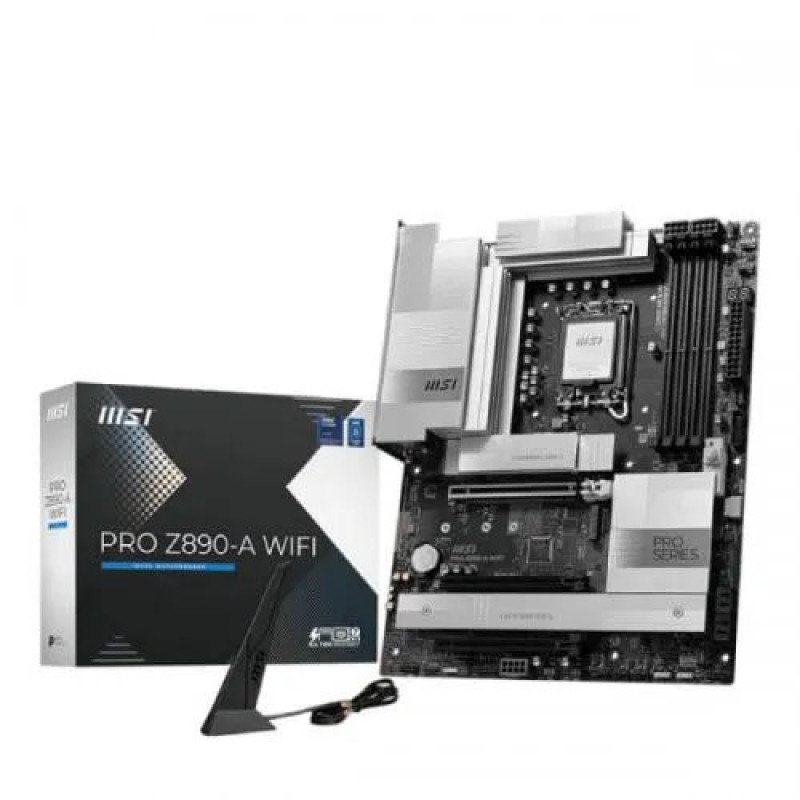

MSI Pro Z890-A WIFI

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
•  2DPC 2R Max speed up to 4800+ MT/s
• Supports Intel POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information

• 1x HDMI
• Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
• 2x Type-C DisplayPort
• Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

• 3x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

• 2x Thunderbolt4 ports (Rear)
• Support up to 40Gbps transfer rate with Thunderbolt devices
• Support up to 20Gbps transfer rate with USB4 devices
• Support up to 10Gbps transfer rate with USB 3.2 devices
• Support up to 5V/3A,15W power charging
• Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
• Support up to 8K display

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)

*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

• 1x Thunderbolt5 card connector(JTBT5, support RTD3)
• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 6x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 20Gbps Type C ports

• Intel Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

• 4x EZ Debug LED
• 1x EZ Digit Debug LED

• USB 10Gbps Type-A
• USB 5Gbps Type-A
• 5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI™
• Thunderbolt™ 4 40Gbps (Type-C)
• USB 10Gbps Type-C
• Flash BIOS Button
• USB 5Gbps Type-A
• S/PDIF-OUT

• Quicl installation Guide
• Europeon Union Regulatory Notice
• 2x Sata Cables
• 4 x EZ M.2 Clips ll
• EZ M.2 Clips ll Remover
• EZ Wi-Fi Antenna
• 1to2 EZ Conn-Cable (V1)

• ATX
• 243.84mmx304.8mm
