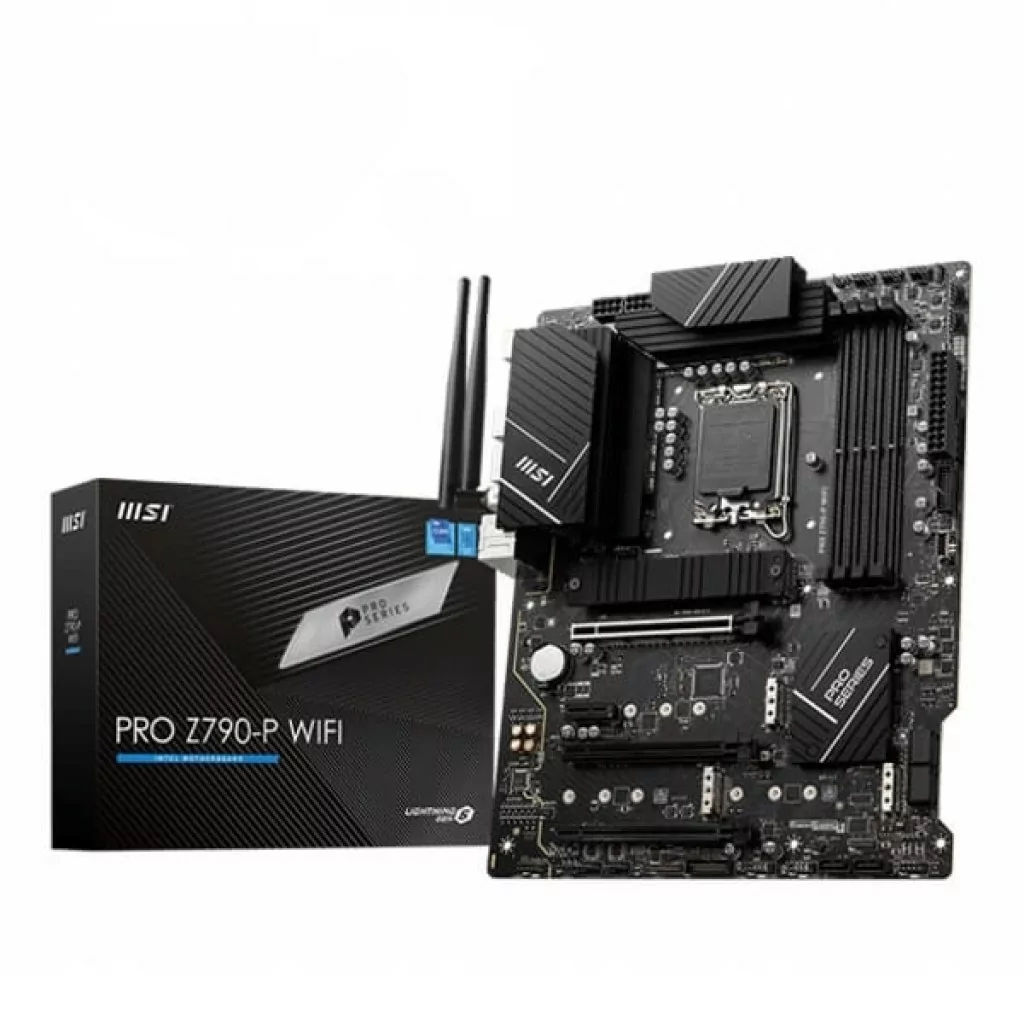

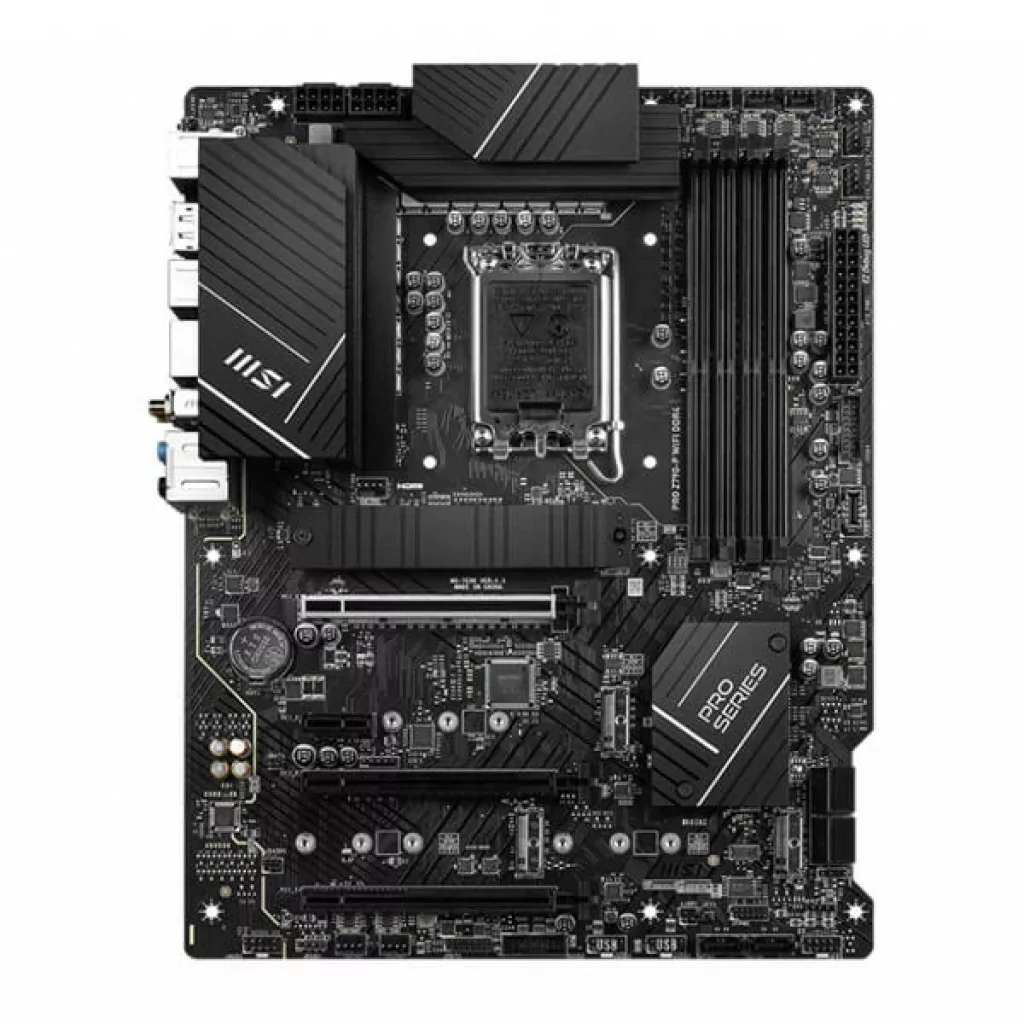

MSI Pro Z790-P WIFI

MSI Pro Z790-P WIFI
MSI Pro Z790-P WIFI
New -12 % Out Of Stock
MSI Pro Z790-P WIFI
MSI Pro Z790-P WIFI

More from this brand

Msi B450M Pro-vdh Max
Quickview
Msi B450M Pro-vdh Max
Rs.5,599.00 Rs.7,999.00
Ex Tax:Rs.4,744.92
Add to Cart Add to Wish List Compare this Product
Msi B550M PRO-VDH WIFI
Quickview
Msi B550M PRO-VDH WIFI
Rs.9,799.00 Rs.11,499.00
Ex Tax:Rs.8,304.24
Add to Cart Add to Wish List Compare this Product
Msi MAG B650 Tomahawk wifi
Quickview
Msi MAG B650 Tomahawk wifi
Rs.22,299.00 Rs.25,999.00
Ex Tax:Rs.18,897.46
Add to Cart Add to Wish List Compare this Product
Msi MAG B660m Mortar Wifi DDR4
Quickview
Msi MAG B660m Mortar Wifi DDR4
Rs.14,999.00 Rs.18,999.00
Ex Tax:Rs.12,711.02
Add to Cart Add to Wish List Compare this Product
PRO Z790-P WIFI is designed with tons of flexible tools and a convenient Wi-Fi solution with DDR5 memory version.

Specification:

ChipsetINTEL Z790
CPU SUPPORTSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 4K 60Hz
EXPANSION SLOT3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
Storage4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LANIntel® 2.5Gbps LAN
WIRELESS / BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE4x EZ Debug LED
BACK PANEL PORTS
  • Keyboard / Mouse
  • DisplayPort
  • USB 2.0
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI™
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
  • USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB DimensionATX
243.84mmx304.8mm
Warranty3 Years
Technical
CHIPSETZ790
TLG GAMING25/06/2021
