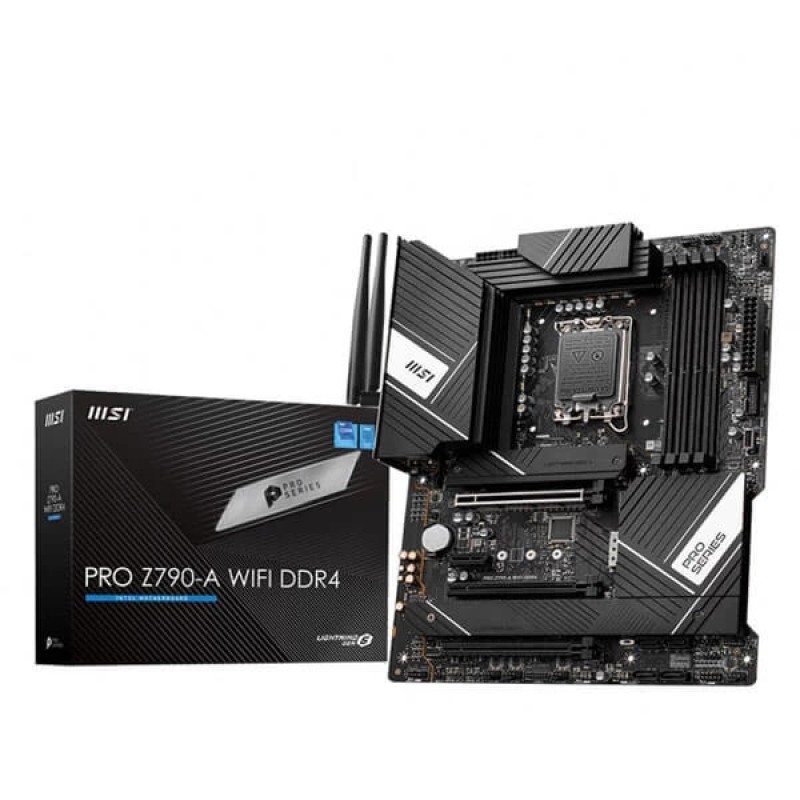

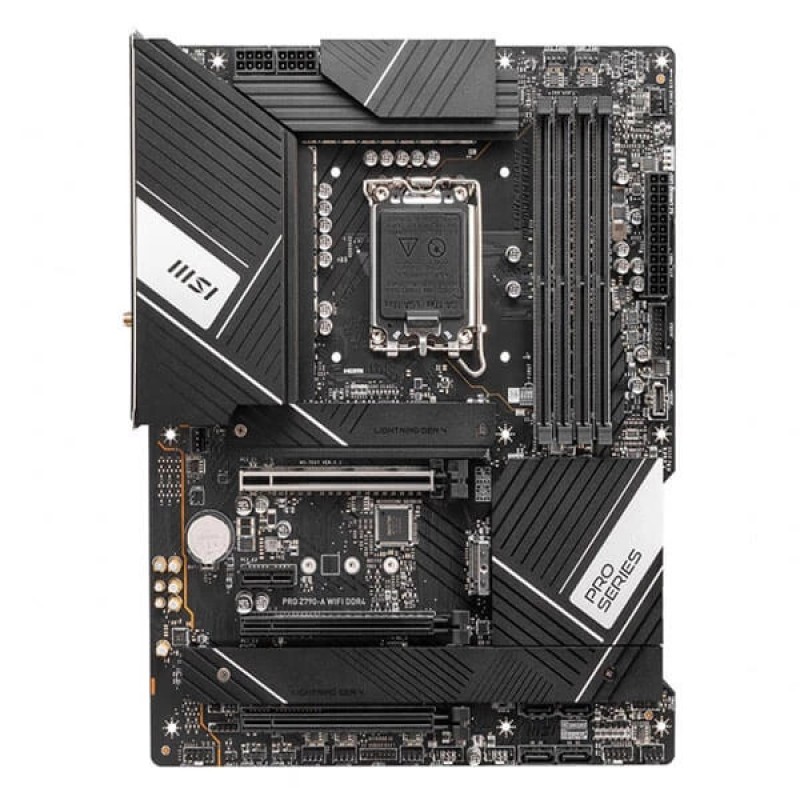

MSI Pro Z790-A WIFI DDR4

MSI Pro Z790-A WIFI DDR4
MSI Pro Z790-A WIFI DDR4
New FREE SHIPPING -7 %
MSI Pro Z790-A WIFI DDR4
MSI Pro Z790-A WIFI DDR4
MSI Pro Z790-A WIFI DDR4
This product qualifies for free shipping
Get free shipping on selected products at Tlg Gaming India!
  • Stock: In Stock
  • Model: PRO-Z790-A-WIFI-DDR4
  • SKU: TLG-003818
Rs.25,999.00
Rs.27,999.00
Ex Tax: Rs.22,033.05

Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)

Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification:


ChipsetINTEL Z790
CPU SUPPORTSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
Memory4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE& POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Onboard Graphics1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
Storage4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LANIntel® 2.5Gbps LAN
WIRELESS / BLUETOOTHIntel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**, FIPS, FISMA

"* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11."

AudioRealtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Internal I/O1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE4x EZ Debug LED
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB DimensionATX
243.84mmx304.8mm
Warranty3 Years
Technical
CHIPSETZ790
