  • Stock: Out Of Stock
  • Model: PRO-Z690-A-DDR4
  • SKU: TLG-003710
Rs.19,299.00
Ex Tax: Rs.16,355.08

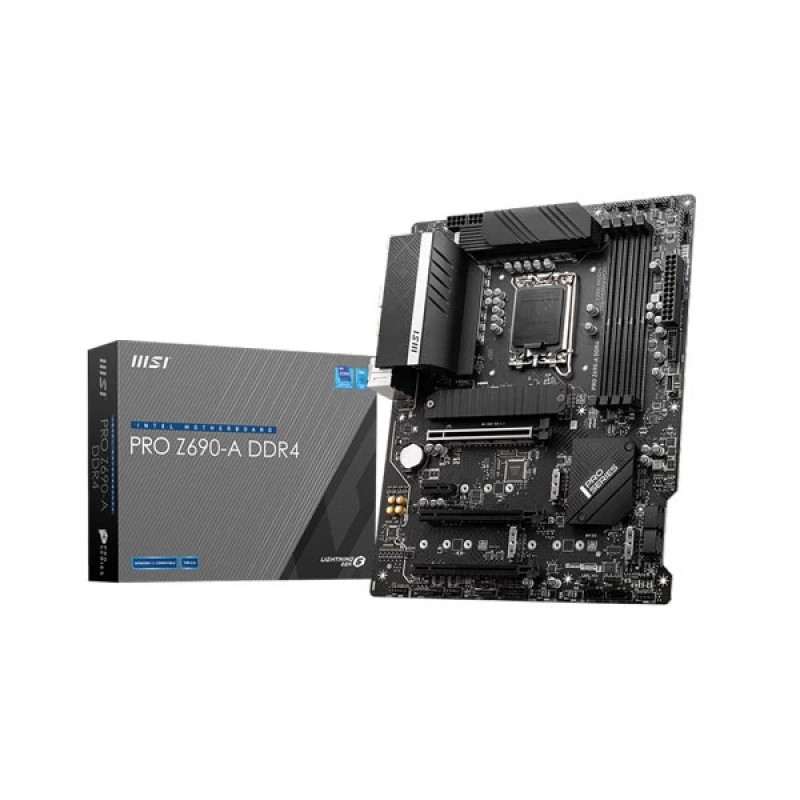

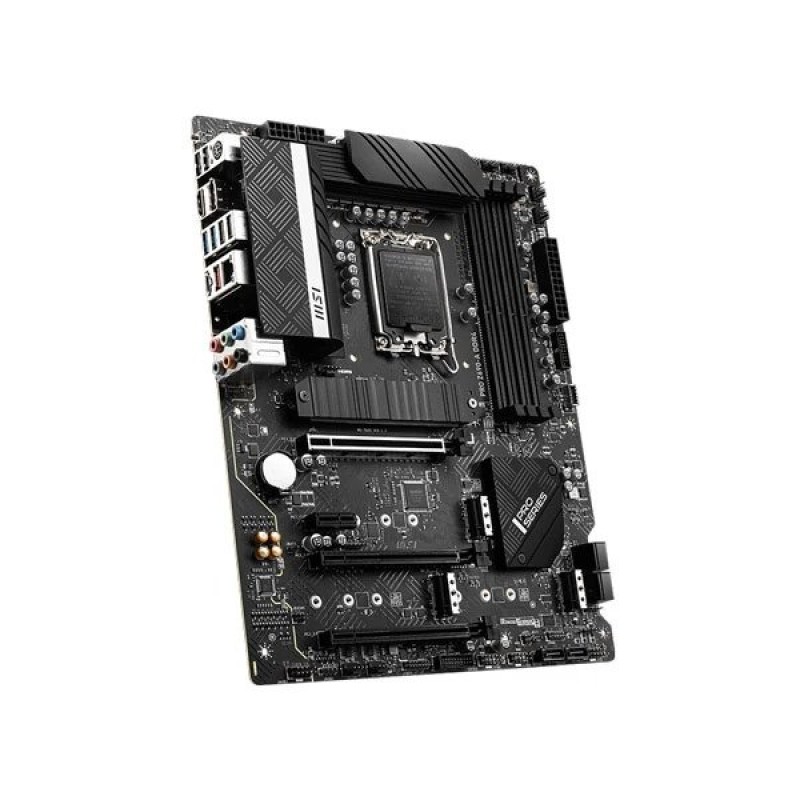

Msi Pro Z690-A D4 Motherboard

PRO Z690-A DDR4 For Intel 12th Gen. Processors.

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 5200+(OC) MHz
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™

Specifications


Processor

Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1700

ChipsetIntel® Z690 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5200+ MHz
      • 1DPC 2R Max speed up to 4800+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 3x PCIe x16 slots
    • PCI_E1 (from CPU)
      • Supports up to PCIe 5.0 x16
    • PCI_E3 & PCI_E4 (from Z690 chipset)
      • Supports up to PCIe 3.0 x4 & 3.0 x1
  • 1x PCIe 3.0 x1 slot (from Z690 chipset)
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 12
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Multi-GPUSupports AMD® CrossFire Technology
Storage
  • 6x SATA 6Gb/s ports (from Z690 chipset)
  • 4x M.2 slots (Key M)
    • M2_1 slot (from CPU)
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from Z690 chipset)
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_3 slot (from Z690 chipset)
      • Supports PCIe 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_4 slot (from Z690 chipset)
      • Supports PCIe 4.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
  • Support Intel® Smart Response Technology for Intel Core™ processors
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
  • Intel® Z690 Chipset
    • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
    • 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
    • 4x USB 2.0 Type-A ports on the back panel
  • USB Hub GL850G
    • 4x USB 2.0 ports are available through the internal USB connectors
AudioRealtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN1x Intel® I225-V 2.5Gbps LAN
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Tuning controller connector
  • 1x TBT connector (Supports RTD3)
LED Feature
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
Back panel ports
  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 2.0
  4. LAN port
  5. Audio connector
  6. Flash BIOS Button
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. USB 3.2 Gen 2x2 20Gbps Type-C
  11. USB 3.2 Gen 2 10Gbps Type-A
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting9 mounting holes
Operating SystemSupport for Windows® 11 64-bit, Windows® 10 64-bit
Warranty3 Years
Technical
CHIPSETZ690
