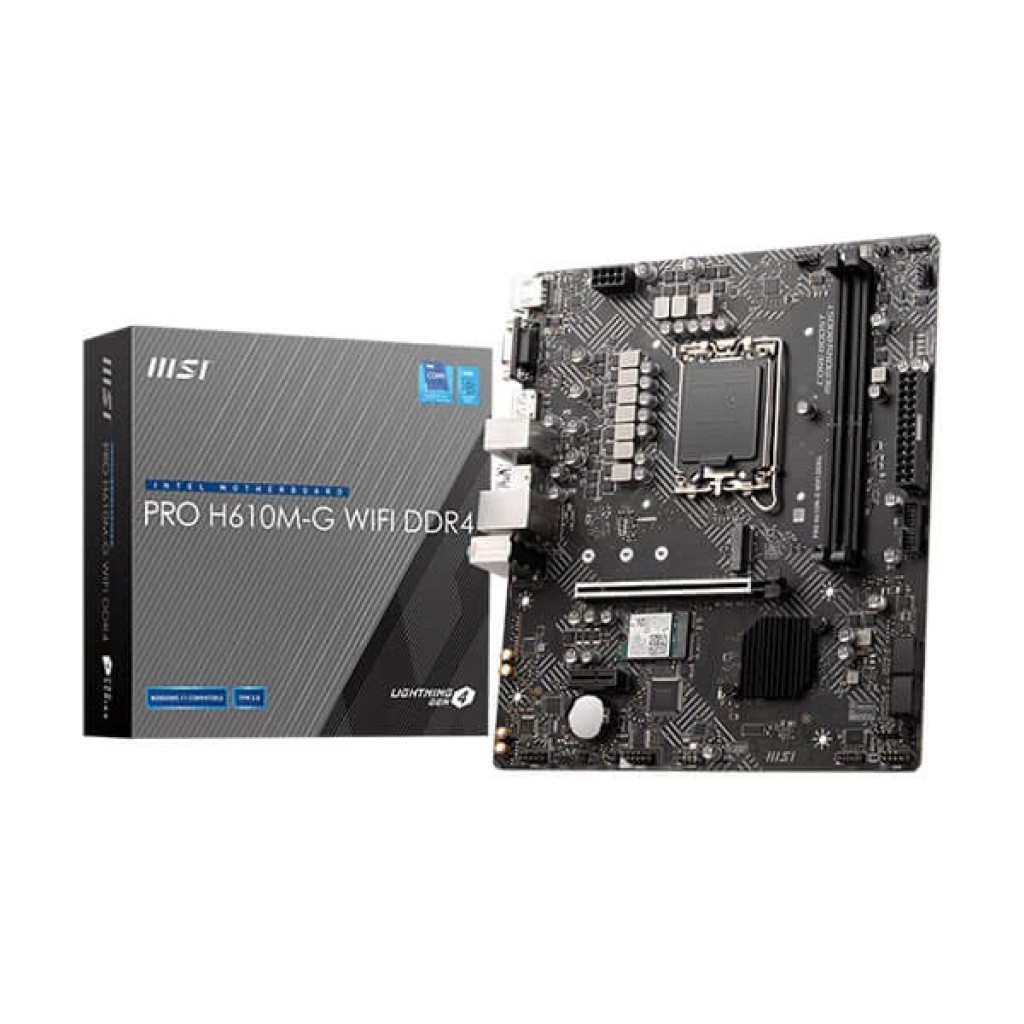

Msi Pro H610M-G WIFI DDR4

Msi Pro H610M-G WIFI DDR4
Out Of Stock
Msi Pro H610M-G WIFI DDR4
Order processing will be delayed
Order processing will be delayed due to the festive season
This product qualifies for free shipping
Get free shipping on this product at Tlg Gaming India!
  • Stock: Out Of Stock
  • Brand: MSI
  • Model: PRO-H610M-G-WIFI-DDR4
  • SKU: TLG-004190
Rs.7,999.00
Rs.9,999.00
Ex Tax: Rs.6,778.81

 Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
  • Wireless and Bluetooth: Intel® Wi-Fi 5, Bluetooth 4.2

Specifications:


Processor

Processor socket LGA1700

ChipsetIntel® H610 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slot
  • 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot
  • Supports PCIe 3.0 x1
Wireless LAN & Bluetooth®

Intel® Wi-Fi 5

  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps
  • Supports Bluetooth® 4.2
Onboard Graphics
  • 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
SATA Ports4x SATA 6Gb/s ports
M.2 SSD Slot
  • 1x M.2 slot (Key M, from chipset)
  • Supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Smart Response Technology for Intel Core™ processors
USB

Intel® H610 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Audio

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1x Intel® I219V 1Gbps LAN controller
Power Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
Fan Connectors
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
System Connectors
  • 1x Front panel audio connector
  • 2x System panel connector
  • s 1x Chassis Intrusion connector
  • 1x TPM module connector
Jumpers
  • 1x Clear CMOS jumper
LED Features
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
Back panel ports
  • HDMI™
  • VGA
  • DisplayPort
  • Keyboard/Mouse
  • USB 3.2 Gen 1 5Gbps Type-A
  • LAN port
  • Audio connector
  • USB 2.0
Dimensions
  • mATX Form Factor
  • 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
Operating SystemSupport for Windows® 11 64-bit
Warranty3 Years
Technical
CHIPSETH610
