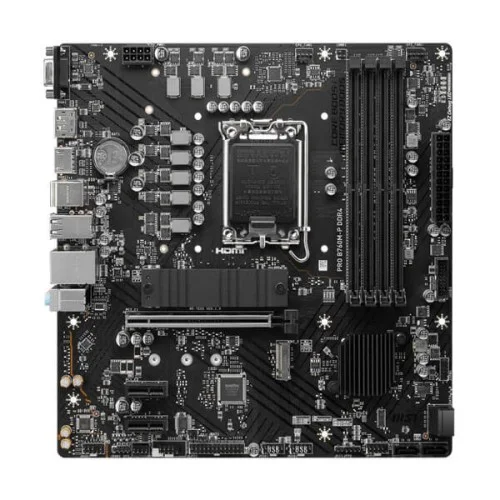

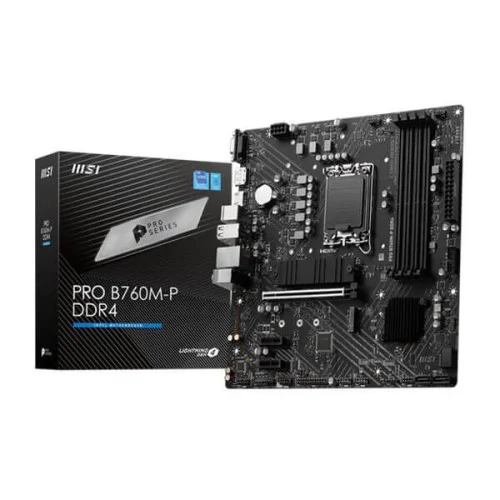

MSI Pro B760M-P DDR4 Motherboard

MSI Pro B760M-P DDR4 Motherboard
MSI Pro B760M-P DDR4 Motherboard
-16 % Out Of Stock
MSI Pro B760M-P DDR4 Motherboard
MSI Pro B760M-P DDR4 Motherboard
MSI Pro B760M-P DDR4 Motherboard
  • Stock: Out Of Stock
  • Model: PRO-B760M-P-DDR4
  • SKU: TLG-004105
  • UPC: 471137703099
  • EAN: 4711377030991
  • MPN: PRO-B760M-P-DDR4
Rs.11,299.00
Rs.13,500.00
Ex Tax: Rs.9,575.42

MSI Pro B760M-P DDR4 LGA 1700 mATX Motherboard | PRO-B760M-P-DDR4

The MSI Pro B760M-P DDR4 LGA 1700 Motherboard is designed to provide efficient and reliable computing performance for a variety of tasks. Supporting Intel's latest 12th-generation Alder Lake processors, it ensures compatibility with cutting-edge CPU technology. With its DDR4 memory support, users can expect seamless multitasking and system responsiveness, making it suitable for both casual users and professionals with demanding workloads.


Featuring the LGA 1700 socket, the motherboard offers a secure and stable connection for Intel's Alder Lake processors, enabling efficient communication between the CPU and other components. This socket design ensures optimal performance and reliability, allowing users to maximize the potential of their system.


In terms of expansion capabilities, the MSI Pro B760M-P DDR4 motherboard offers multiple PCIe slots, allowing users to install additional components such as graphics cards, network cards, and storage controllers. This flexibility enables users to customize their system to suit their specific needs, whether it's for gaming, content creation, or productivity.


For storage options, the motherboard provides SATA ports for connecting traditional hard drives and SSDs, as well as M.2 slots for high-speed NVMe SSDs. This allows users to take advantage of the latest storage technologies, ensuring fast boot times and quick access to data and applications.


Connectivity-wise, the MSI Pro B760M-P DDR4 motherboard offers a range of options to suit different requirements. With USB ports, including the latest USB 3.2 Gen 2 standard, users can connect a variety of peripherals and devices for data transfer and charging. Additionally, Gigabit Ethernet provides reliable wired networking for high-speed internet connectivity.


Audio quality is also a priority, with the motherboard featuring high-definition audio output and advanced audio processing technologies. This ensures immersive sound experiences for gaming, movies, and music, enhancing the overall multimedia experience for users.


In summary, the MSI Pro B760M-P DDR4 LGA 1700 Motherboard combines performance, reliability, and expandability to meet the diverse needs of modern computing. With support for Intel's latest Alder Lake processors, DDR4 memory, and a range of connectivity options, it offers an ideal platform for building or upgrading a high-performance PC system.


Key Features:

  • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength



    Specification:

    ModelPRO B760M-P DDR4
    ChipsetB760M
    CPU Support

    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700

    Memory

    4x DDR4, Maximum Memory Capacity 128GB
    Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)

    Onboard GraphicsSupport HDMI™ 1.4, maximum resolution of 4K 30Hz*
    Support DP 1.4, the maximum resolution of 4K 60Hz*
    Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    1x HDMI™
    1x DisplayPort
    1x VGA
    Expansion Slot1x PCI-E x16 slot
    2x PCI-E x1 slot
    PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)
    PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
    Storage2x M.2 slot
    M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G port
    RAIDSupports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
    USB4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    1x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen2 Type C (Rear)
    LANRealtek® RTL8111H Gigabit LAN
    AudioRealtek® ALC897 Codec
    7.1-Channel High-Definition Audio
    Internal IO1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Printer Port (JLPT)
    1x Com Port (JCOM)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0
    2x USB 3.2 Gen1 Type A
    LED Features4x EZ Debug LED
    Back Panel Ports
    • VGA
    • DisplayPort
    • HDMI™
    • Keyboard / Mouse
    • USB 2.0
    • LAN port
    • Audio Connectors
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-C)
    Operating SystemSupport for Windows® 11 64-bit, Windows® 10 64-bit
    PCB InfomATX
    243.84mmx243.84mm
    Warranty3 Years


    Check out our list of RAM (Memory) collections to use with this Motherboard.

    Click Here

    General
    Memory4x DDR4, Maximum Memory Capacity 128GB
    MODELPRO-B760M-P-DDR4
    WARRANTY3 Years
    Technical
    CHIPSETB760M
    Form FactormATX
    Graphics1x HDMI™, 1x DisplayPort, 1x VGA
    LED TYPE4x EZ Debug LED
    Slot1x PCI-E x16 slot, 2x PCI-E x1 slot
    SocketLGA 1700
