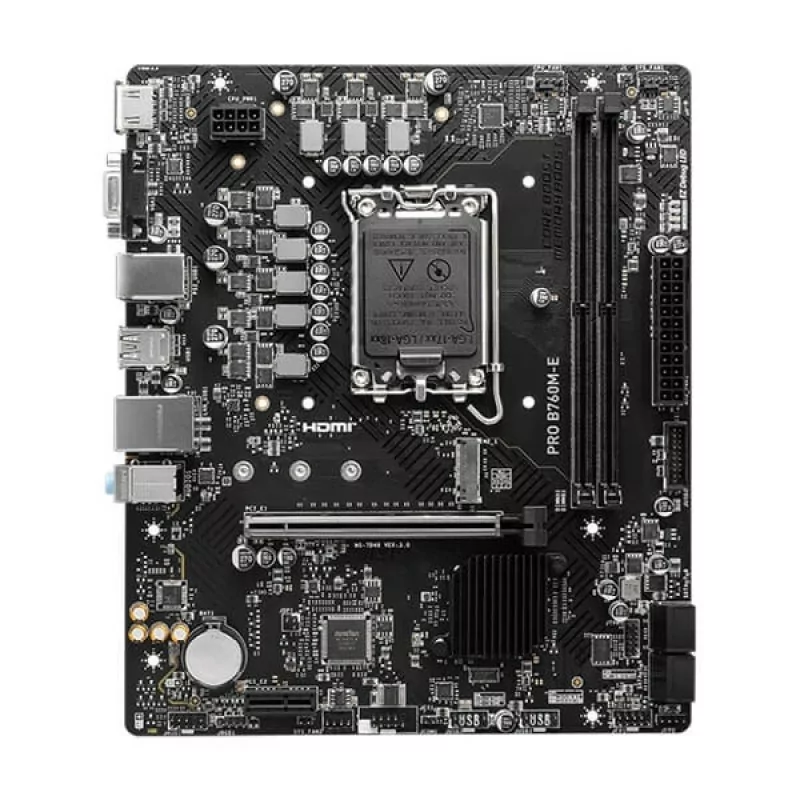

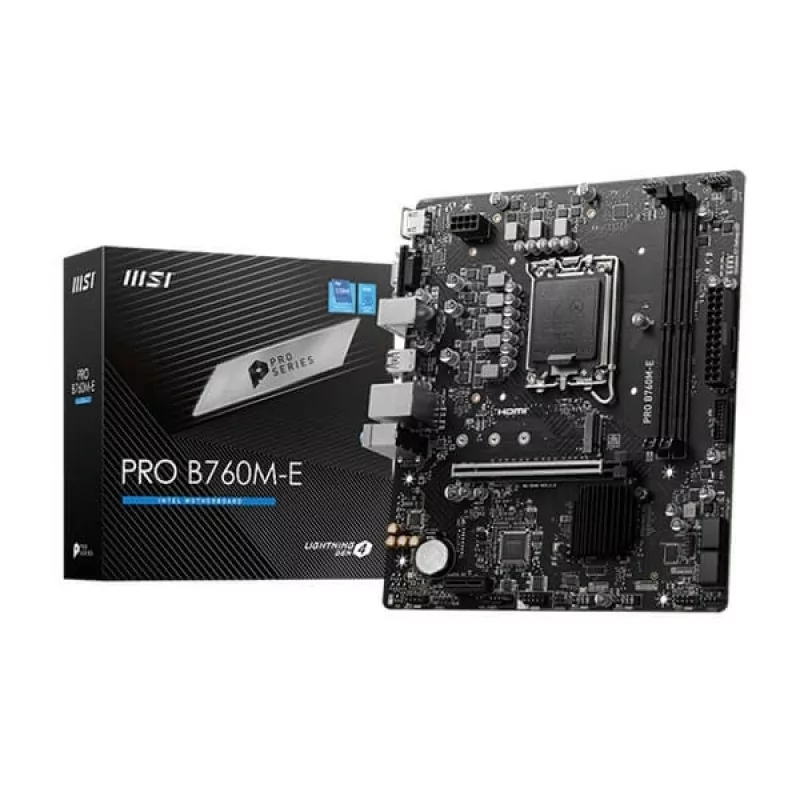

Msi Pro B760M-E DDR5 Motherboard

Msi Pro B760M-E DDR5 Motherboard
Msi Pro B760M-E DDR5 Motherboard
FREE SHIPPING -38 %
Msi Pro B760M-E DDR5 Motherboard
Msi Pro B760M-E DDR5 Motherboard
Msi Pro B760M-E DDR5 Motherboard
  • Stock: In Stock
  • Model: PRO-B760M-E-DDR5
  • SKU: TLG-004109
  • EAN: 4711377125154
  • MPN: PRO-B760M-E-DDR5
Rs.8,699.00
Rs.13,999.00
Ex Tax: Rs.7,372.03

Msi Pro B760M-E DDR5 mATX Motherboard | PRO-B760M-E-DDR5

Introducing the MSI Pro B760M-E DDR5 mATX Motherboard: Power-Packed Performance in a Compact Form Factor.

The MSI Pro B760M-E DDR5 motherboard stands out as a versatile and feature-rich option tailored to meet the demands of modern computing. Designed with a micro-ATX form factor, this motherboard offers a balance of compactness and expandability, making it suitable for a wide range of PC builds. Let's dive into its key specifications and features:

  1. 12th Gen Intel Core Processor Support: Compatible with 12th-generation Intel Core processors, the MSI Pro B760M-E DDR5 motherboard ensures users have access to the latest CPU technology for optimal performance and efficiency.

  2. DDR5 Memory Support: With support for DDR5 memory modules, this motherboard delivers enhanced speed and responsiveness, unlocking new levels of performance for gaming, content creation, and multitasking.

  3. PCIe 4.0 Support: Equipped with PCIe 4.0 slots, the motherboard offers high-speed data transfer rates and improved bandwidth, ideal for graphics cards, NVMe SSDs, and other PCIe devices.

  4. Integrated Graphics Output: Features integrated graphics output options, including HDMI and DisplayPort, for seamless connectivity with compatible displays and monitors.

  5. M.2 Slots for NVMe SSDs: Multiple M.2 slots allow users to install NVMe SSDs for rapid storage performance, reducing load times for applications, games, and operating systems.

  6. USB 3.2 Gen 2 Ports: Provides USB 3.2 Gen 2 ports for fast data transfer rates, enabling quick backup, file sharing, and connectivity with external devices.

  7. Gigabit LAN: Equipped with Gigabit Ethernet for reliable wired networking, ensuring fast and stable internet connections for gaming, streaming, and file transfers.

  8. Audio Boost Technology: Enhanced audio quality with Audio Boost technology delivers immersive sound experiences for gaming, movies, and music, making every listening session a pleasure.

  9. User-Friendly BIOS Interface: Features a user-friendly BIOS interface for easy customization of system settings, allowing users to optimize performance and stability with ease.

  10. Comprehensive Connectivity: Offers a range of connectivity options, including USB ports, audio jacks, and networking ports, ensuring compatibility with a wide range of peripherals and accessories.

The MSI Pro B760M-E DDR5 mATX Motherboard combines power-packed performance, versatile features, and a compact form factor, making it an ideal choice for PC enthusiasts, gamers, and content creators alike. Whether you're building a new system or upgrading an existing one, this motherboard provides a reliable foundation for your computing needs.



Key Highlights:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength


Specification:

ModelPRO B760M-E
ChipsetINTEL B760
CPU SUPPORT

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium Gold and Celeron® Processors for LGA 1700 socket

Memory

2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LANRealtek® RTL8111H Gigabit LAN
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED FEATURE4x EZ Debug LED
BACK PANEL PORTS
  • HDMI
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • LAN port
  • Audio Connectors
  • USB 2.0
  • USB 2.0
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L)mATX
200mmx236.16mm
Warranty3 Years

Check out our list of RAM (Memory) collections to use with this Motherboard.

Click Here

General
Memory 2x DDR5, Maximum Memory Capacity 96GB
MODELPRO-B760M-E-DDR5
WARRANTY3 Years
Technical
CHIPSETINTEL B760
Form FactormATX
Graphics1x HDMI™, 1x VGA
Slot1x PCI-E x16 slot, 1x PCI-E x1 slot
SocketLGA 1700
TLG GAMING25/06/2021
