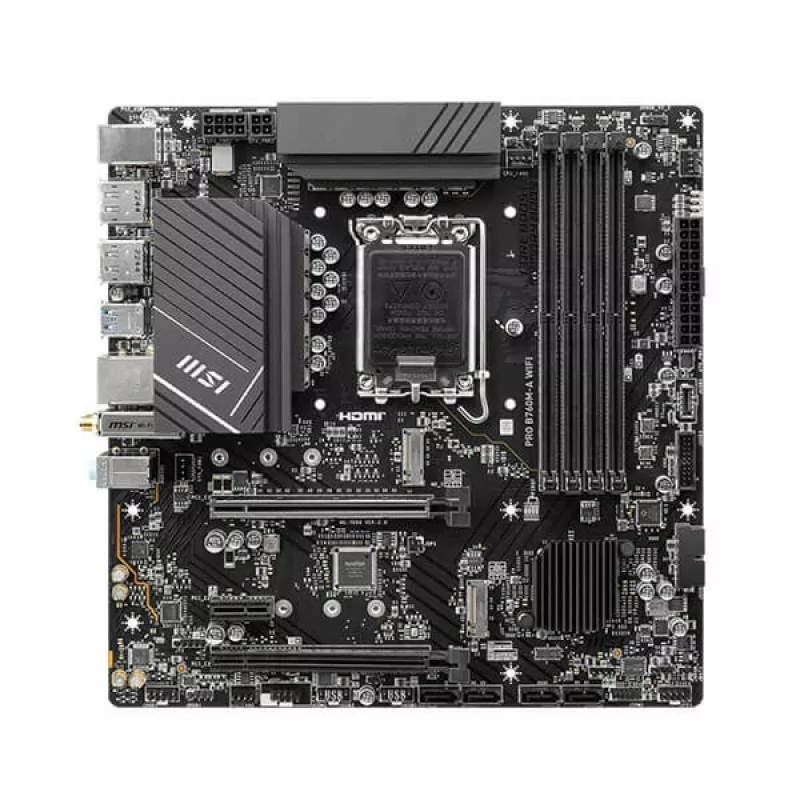

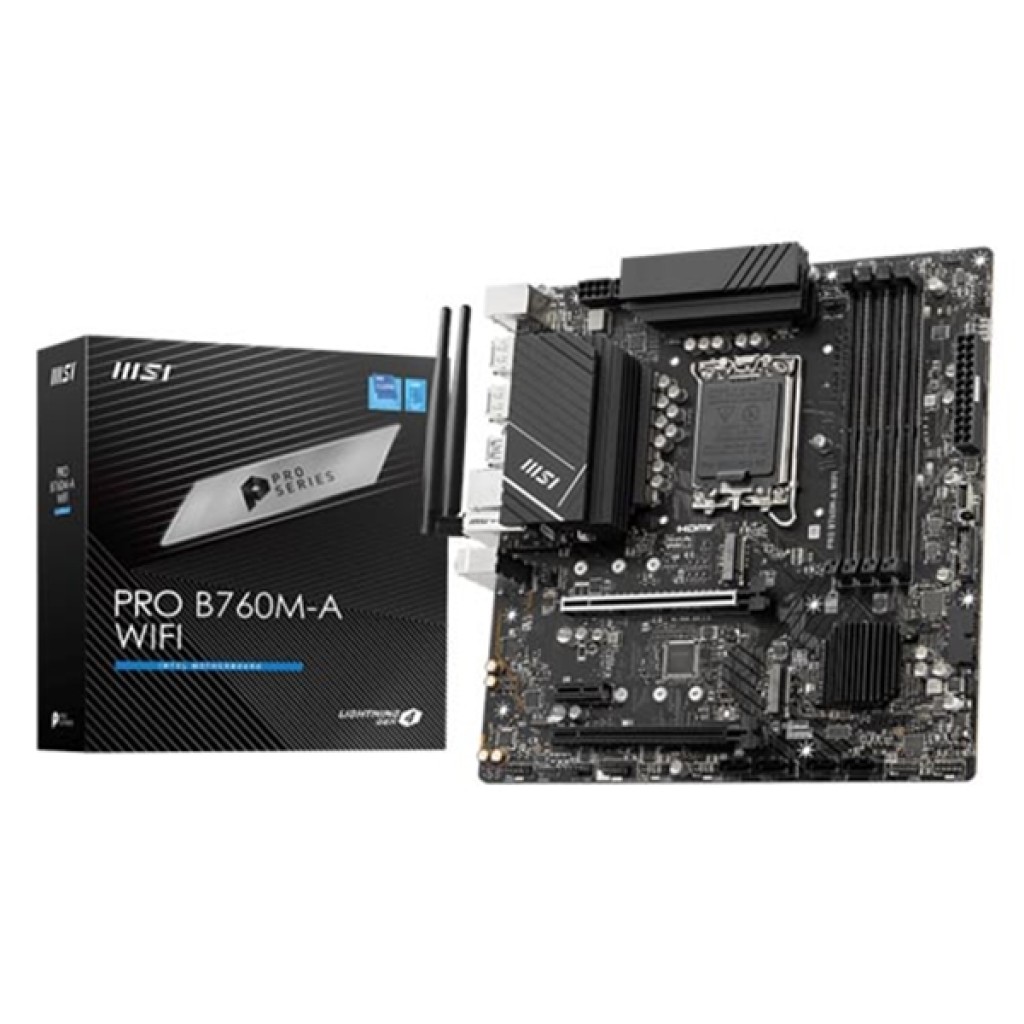

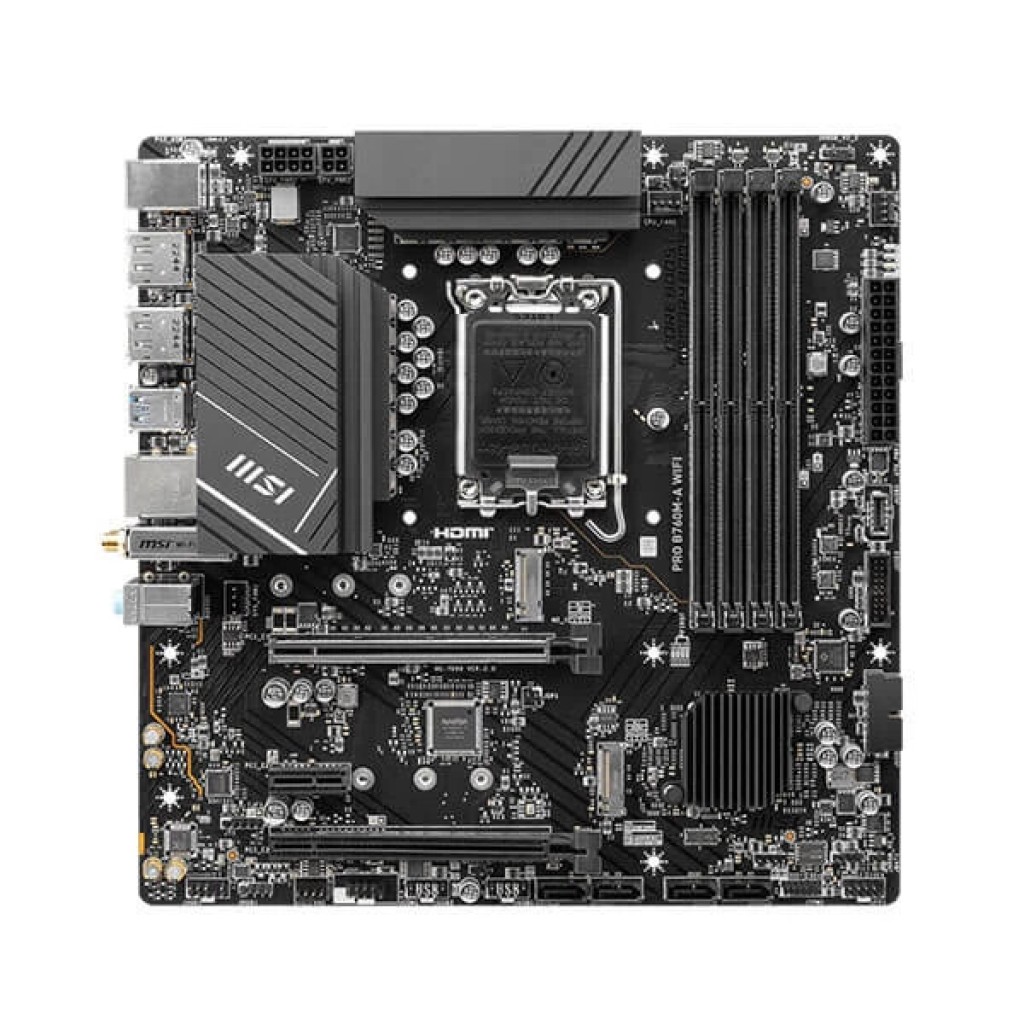

Msi Pro B760M-A Wifi DDR5 Motherboard
The MSI Pro B760M-A Wifi DDR5 Motherboard is a microATX motherboard that supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron processors for the LGA1700 socket. It features dual-channel DDR5 memory support with a maximum speed of 6800+ MHz (OC). The motherboard also has a 12+1 Duet Rail Power System with 8-pin + 4-pin CPU power connectors, which provides stable power delivery for overclocking.
For storage, the MSI Pro B760M-A Wifi DDR5 Motherboard has four SATA III ports and one PCIe 4.0 x4 M.2 slot. For networking, it has a 2.5Gbps LAN port and Wi-Fi 6E support. Other features include four USB 3.2 Gen 2 ports, two USB 2.0 ports, and three audio jacks.
Overall, the MSI Pro B760M-A Wifi DDR5 Motherboard is a good option for users who are looking for a microATX motherboard that supports the latest Intel processors and DDR5 memory. It has a good feature set and is priced competitively.
Here are some of the features of the MSI Pro B760M-A Wifi DDR5 Motherboard:
Features
- Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron processors
- Dual-channel DDR5 memory support with a maximum speed of 6800+ MHz (OC)
- 12+1 Duet Rail Power System with 8-pin + 4-pin CPU power connectors
- PCIe 4.0 x4 M.2 slot
- 2.5Gbps LAN port
- Wi-Fi 6E support
PRO B760M-A WIFI is designed with tons of flexible tools and a convenient Wi-Fi solution with a DDR5 memory version.
Specification:
| Model | PRO-B760M-A-WIFI-DDR5 |
| Chipset | INTEL B760 |
| CPU Support | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Supports Dual-Channel mode |
| Onboard Graphics | Support HDMI™ 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 2x HDMI™ 2x DisplayPort |
| Expansion Slot | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Wireless Lan & Bluetooth | Intel® Wi-Fi 6E Supports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C |
| LED Features | 4x EZ Debug LED |

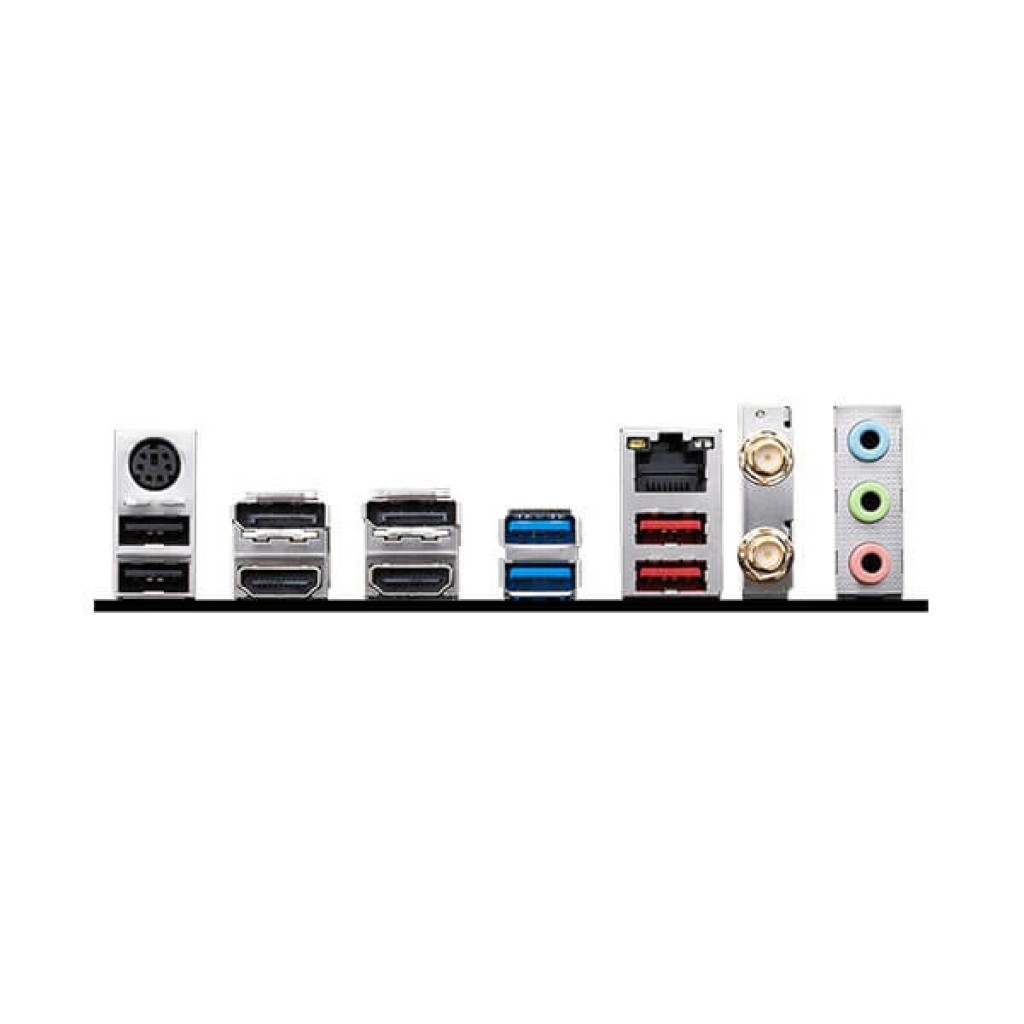

| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 243.84mmx243.84mm |
| Warranty | 3 Years |
Check out our list of RAM (Memory) collections to use with this Motherboard.
| General | |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB |
| MODEL | PRO-B760M-A-WIFI-DDR5 |
| WARRANTY | 3 Years |
| Technical | |
| CHIPSET | INTEL B760 |
| Form Factor | mATX |
| Graphics | 2x HDMI™, 2x DisplayPort |
| Slot | 2x PCI-E x16 slot, 1x PCI-E x1 slot |
| Socket | LGA 1700 |
