Msi Pro B660-A DDR4 Motherboard

Msi Pro B660-A DDR4 Motherboard
Msi Pro B660-A DDR4 Motherboard
Msi Pro B660-A DDR4 Motherboard
-7 % Out Of Stock
Msi Pro B660-A DDR4 Motherboard
Msi Pro B660-A DDR4 Motherboard
Msi Pro B660-A DDR4 Motherboard
Msi Pro B660-A DDR4 Motherboard
  • Stock: Out Of Stock
  • Model: PRO-B660-A-DDR4
  • SKU: TLG-003674
Rs.13,999.00
Rs.14,999.00
Ex Tax: Rs.11,863.56

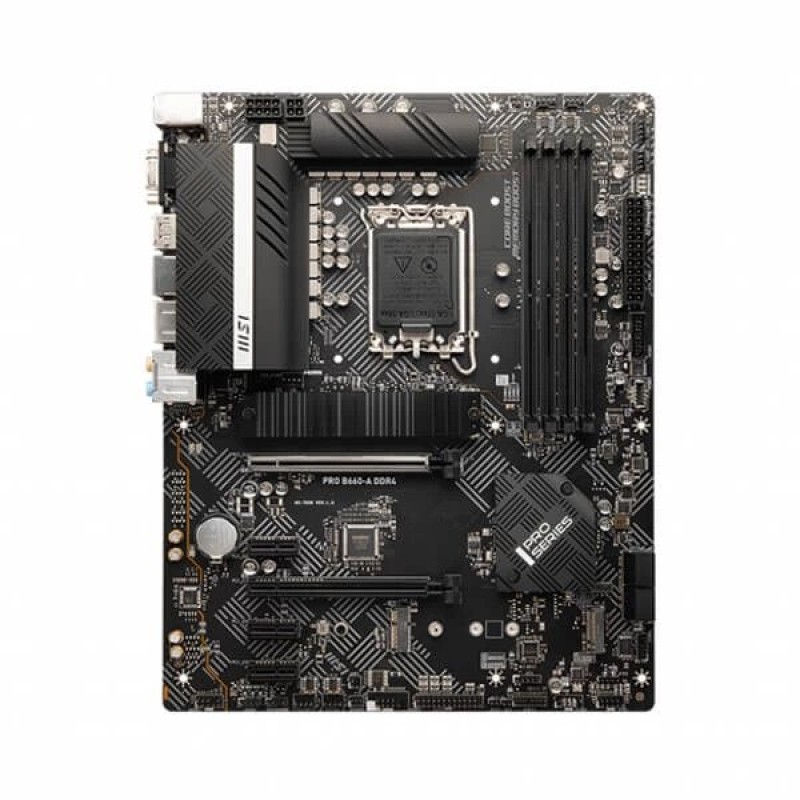

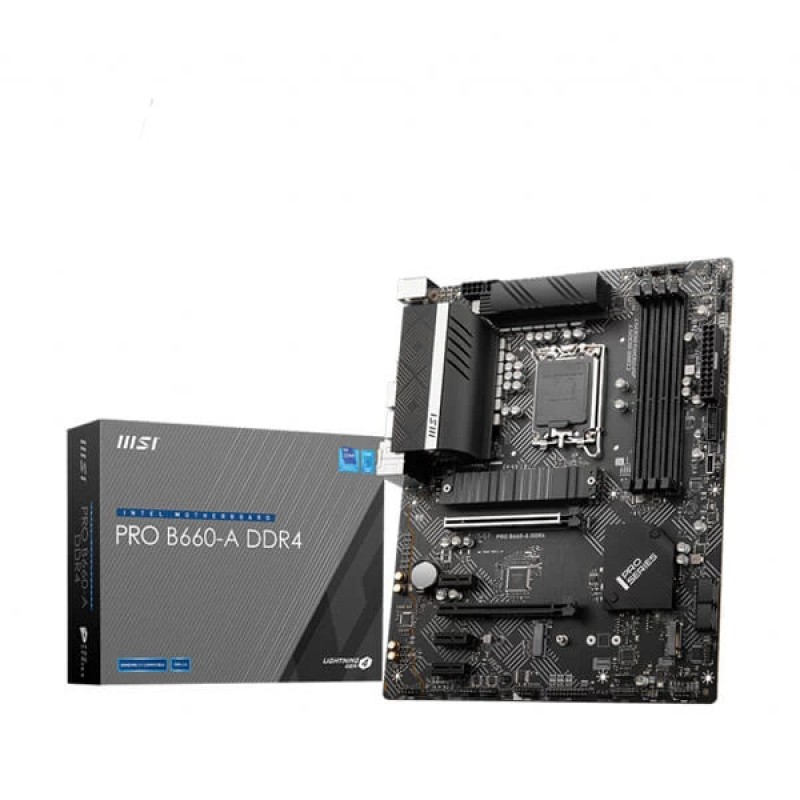

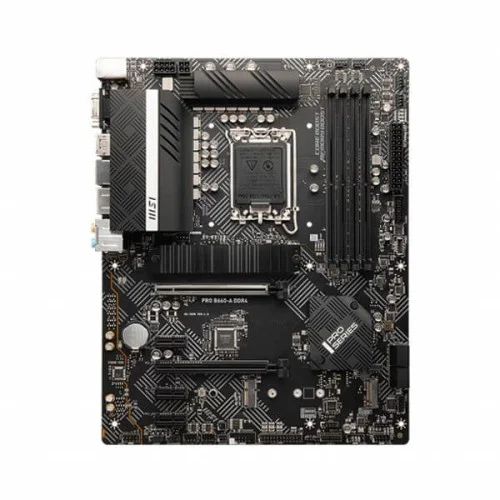

Msi Pro B660-A DDR4 Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market, a dedicated water pump PIN header gives you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
TEMPERATURE MANAGEMENT

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
LIGHTNING GEN 4 PCI-E.

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z690 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
A HUGE STEP OF DDR PERFORMANCE.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Specification:


Processor

Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1700

Chipset

Intel® B660 Chipset

Memory



4x DDR4 memory slots, support up to 128GB

  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 4800+ MHz
  • 1DPC 2R Max speed up to 4000+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 3600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot



  • 2x PCIe x16 slots
  • PCI_E1 (from CPU)
  • Support PCIe 4.0 x16
  • PCI_E3 (From B660 chipset)
  • Support PCIe 3.0 x4
  • 3x PCIe x1 slots (From B660 chipset)
  • 1x M.2 slot with E-key for PCIe WiFi module only (M2_3)
Onboard Graphics
  • 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Multi-GPUSupports AMD® CrossFire™ Technology
SATA Ports4x SATA 6Gb/s ports (From B660 chipset)
M.2 SSD Slot
  • 2x M.2 slots (Key M)
  • M2_1 slot (from CPU)
  • Supports PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (From B660 chipset)
  • Supports PCIe 4.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Support Intel® Optane™ Memory
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  • Support Intel® Smart Response Technology for Intel Core™ processors
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio


Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN1x Intel® 8125BG 2.5SGbps LAN controller
Power Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8+1x 4-pin ATX 12V power connectors
Internal USB Connectors



  • 1x USB 3.2 Gen 1 5Gbps Type-C port (From B660 chipset)
  • 1x USB 3.2 Gen 1 5Gbps connector (From B660 chipset)
    Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 1x USB 2.0 connector (From USB Hub GL850G)
    Supports additional 2 USB 2.0 ports
Fan Connectors



  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 5x 4-pin system fan connectors
System Connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Tuning controller connector
  • 1x TBT connector (Supports RTD3)
Jumpers1x Clear CMOS jumper
LED Feature
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED

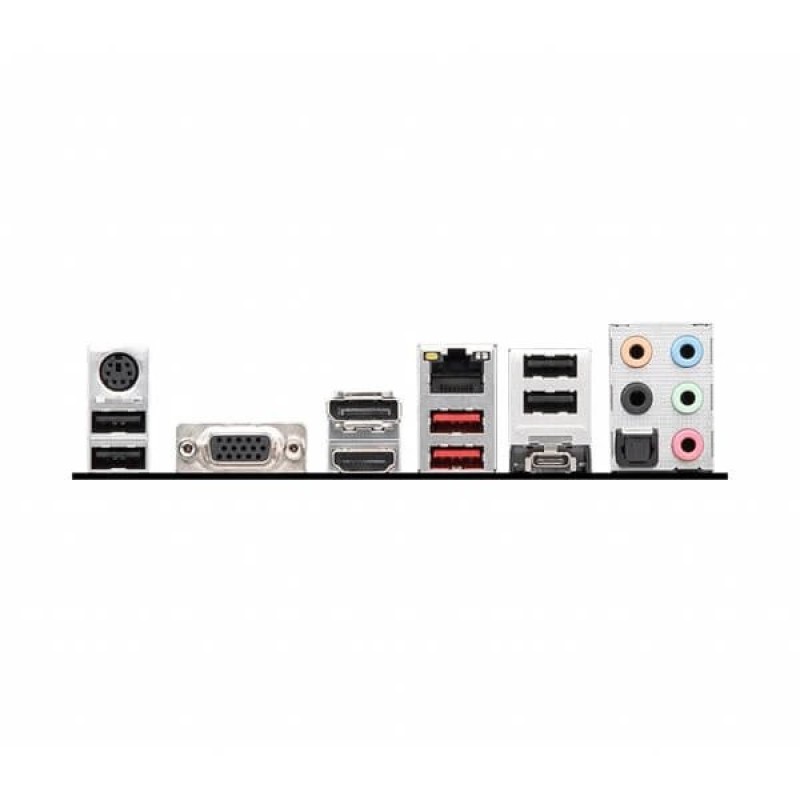

Back panel ports
  • Keyboard / Mouse
  • DisplayPort
  • 2.5G LAN
  • USB 2.0
  • Audio Connectors
  • USB 2.0
  • VGA
  • HDMI
  • USB 3.2 Gen2 10Gbps (Type-A)
  • USB 3.2 Gen2 10Gbps (Type-C)
  • Optical S/PDIF Out
I/O ControllerNUVOTON NCT6687-R Controller Chip
Hardware Monitor
  • CPU/ System/ Chipset temperature detection
  • CPU/ System/ Pump fan speed detection
  • CPU/ System/ Pump fan speed control
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty3 Years
Technical
CHIPSETB660
TLG GAMING25/06/2021
