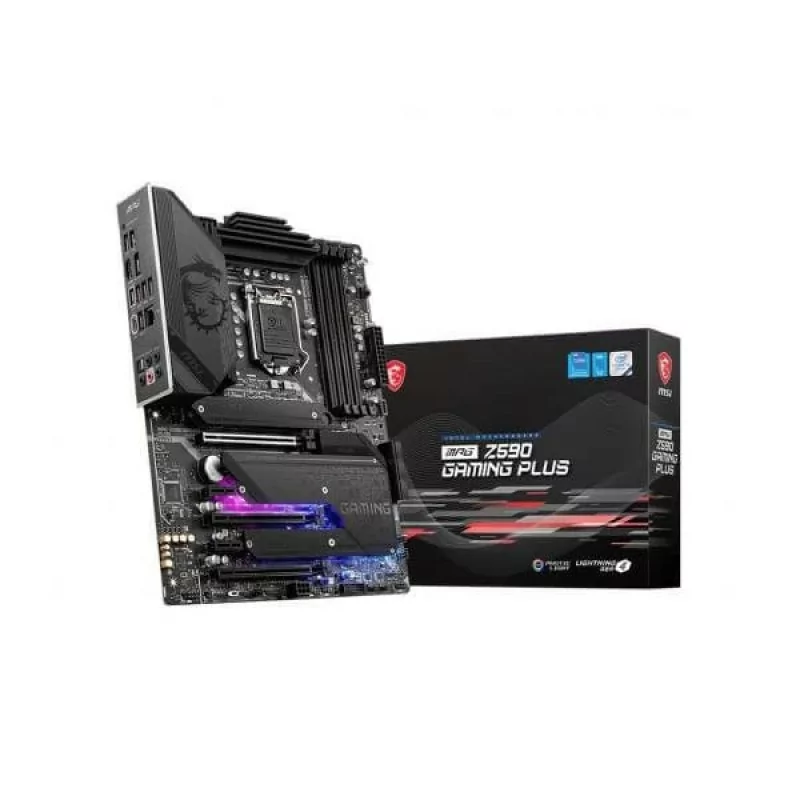

MSI MPG Z590 Gaming Plus Motherboard

The MSI MPG Series Z590 Gaming Plus is an ATX Motherboard, Featuring DDR4 5333 MHz Memory Support, 16 Phase Digital VRM, 6 Layer PCB, Intel 2.5 Gigabit Ethernet And Realtek ALC4080 Premium Audio.

Features

MPG Z590 GAMING PLUS

• Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5333(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Specifications:

• PROCESSOR

-Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel ® Core™ Processors, Pentium® Gold and Celeron® Processors

-Processor socket LGA1200

• CHIPSET

-Intel® Z590 Chipset

• MEMORY

-4x DDR4 memory slots, support up to 128GB1

-Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1

-Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel ® CPU (by JEDEC & POR)1

-Max overclocking frequency:

-1DPC 1R Max speed up to 5333 MHz

-1DPC 2R Max speed up to 4700+ MHz

-2DPC 1R Max speed up to 4400+ MHz

-2DPC 2R Max speed up to 4000+ MHz

-Supports Dual-Channel mode

-Supports non-ECC, un-buffered memory

-Supports Intel® Extreme Memory Profile (XMP)

• EXPANSION SLOTS

-3x PCIe x16 slots

-Support x16/x4/x4

-PCI_E1 (From CPU)

-Supports up to PCIe 4.0 for 11th Gen Intel® CPU

-Supports up to PCIe 3.0 for 10th Gen Intel® CPU

-PCI_E3 & PCI_E5 (From Z590 chipset)

-Support up to PCIe 3.0

-2x PCIe 3.0 x1 slots (From Z590 chipset)

-PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.

• ONBOARD GRAPHICS

-1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

-1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

-Available only on processors featuring integrated graphics.

-Graphics specifications may vary depending on the CPU installed.

-MULTI-GPU

-Supports 2-Way AMD® CrossFire™ Technology

• STORAGE

-6x SATA 6Gb/s ports (From Z590 Chipset)

-3x M.2 slots (Key M)

-M2_1 slot (From CPU)

-Available only on 11th Gen Intel® CPU

-Supports up to PCIe 4.0 x4

-Supports 2242/ 2260/ 2280/ 22110 storage devices

-M2_2 & M2_3 slots (From Z590 Chipset)

-Support up to PCIe 3.0 x4 and SATA 6Gb/s

-Supports 2242/ 2260/ 2280 storage devices

-Intel® Optane™ Memory Ready

-Supports Intel® Smart Response Technology for Intel Core ™ processors

-PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

-SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.

-Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

• RAID

-Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

-Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

• USB

-Intel® Z590 Chipset

-1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

-4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors)

-4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel)

-Hub-GL850G

-6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)

• AUDIO

-Realtek® ALC4080

-7.1-Channel High Definition Audio

-Supports S/PDIF output

• LAN

-1x Intel® I225-V 2.5Gbps LAN controller

• INTERNAL CONNECTORS

-1x 24-pin ATX main power connector

-2x 8-pin ATX 12V power connectors

-1x 6-pin ATX PCIE power connector

-6x SATA 6Gb/s connectors

-3x M.2 slots (M-Key)

-1x USB 3.2 Gen 2 10Gbps Type-C port

-1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

-2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

-1x 4-pin CPU fan connector

-1x 4-pin water-pump fan connector

-6x 4-pin system fan connectors

-1x Front panel audio connector

-2x System panel connectors

-1x Chassis Intrusion connector

-1x TPM module connector

-1x Clear CMOS jumper

-1x TBT connector (supports RTD3)

• LED FEATURE

-2x 4-pin RGB LED connectors

-2x 3-pin RAINBOW LED connectors

-1x EZ LED Control switch

-4x EZ Debug LED

• BACK PANEL PORTS

-DisplayPort

-USB 3.2 Gen 1 5Gbps Type-A

-2.5G LAN

-Audio Connectors

-Flash BIOS Button

-USB 2.0

-HDMI

-USB 3.2 Gen 2 10Gbps Type-A

-USB 3.2 Gen 2x2 20Gbps Type-C

-Optical S/PDIF Out

• DIMENSIONS

-ATX Form Factor

-12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING- 9 mounting holes

OPERATING SYSTEM- Support for Windows® 10 64-bit

Warranty- 3 Years
