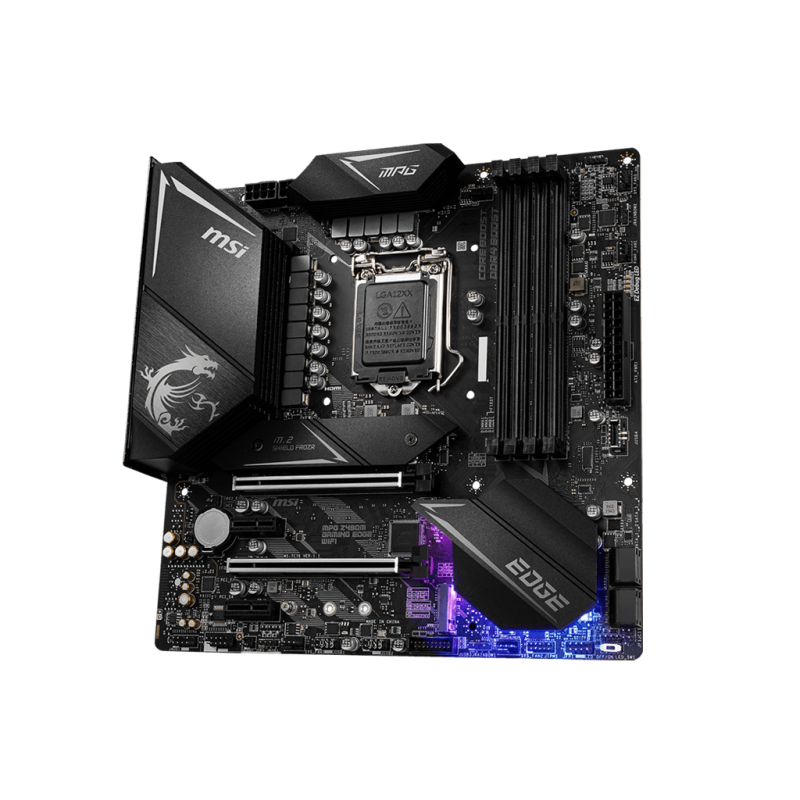

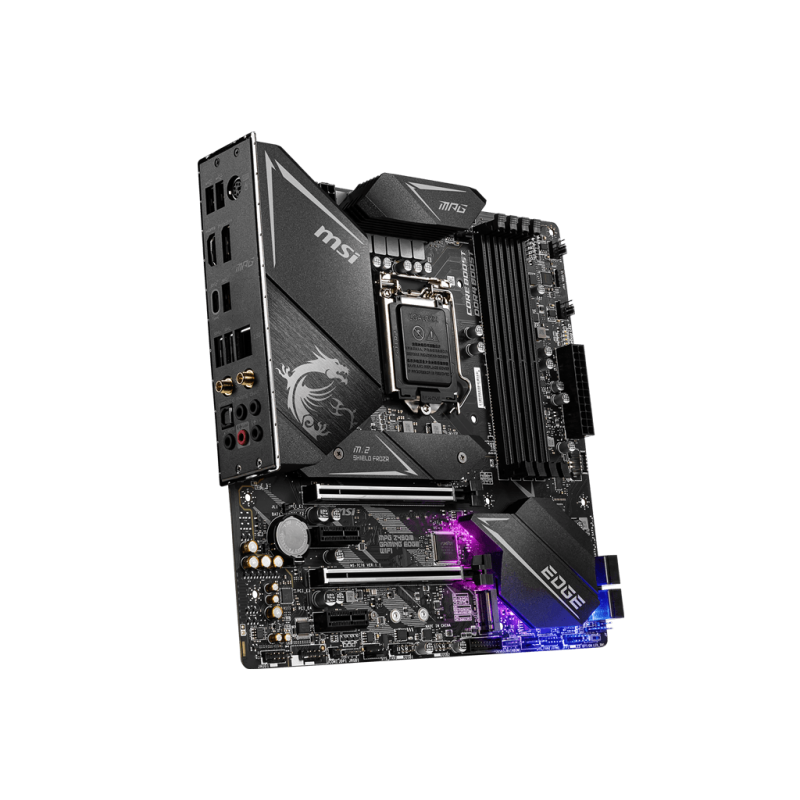

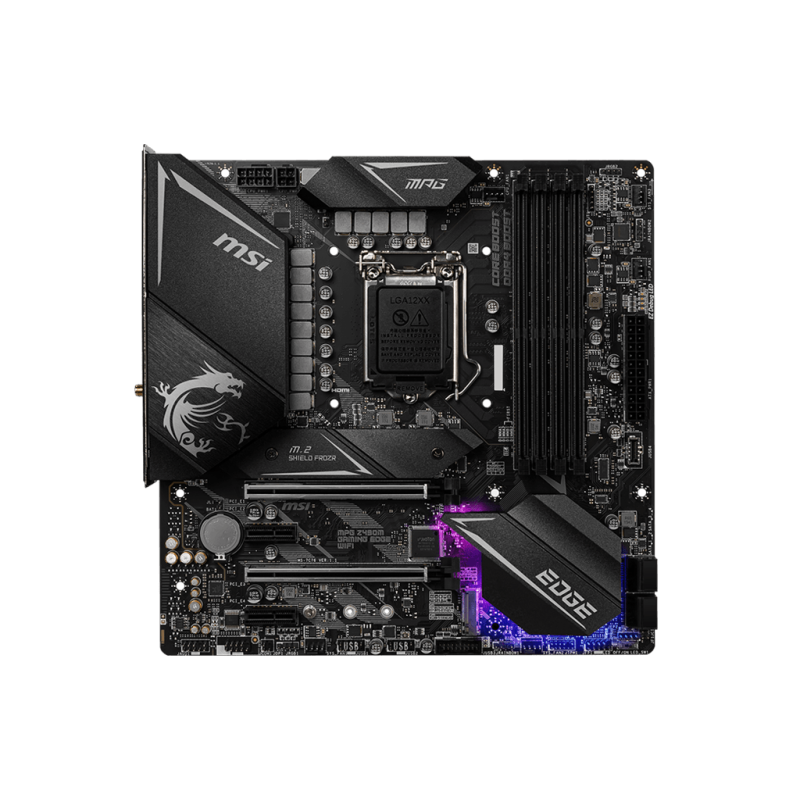

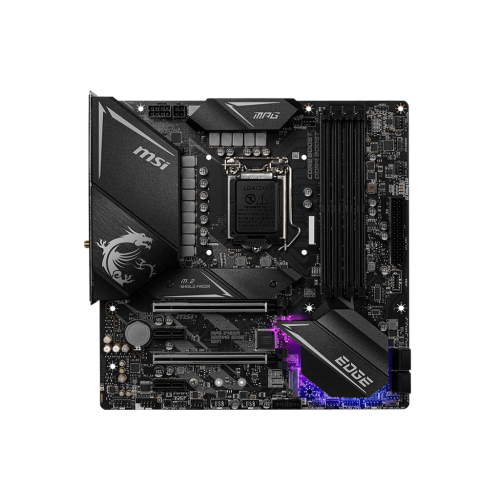

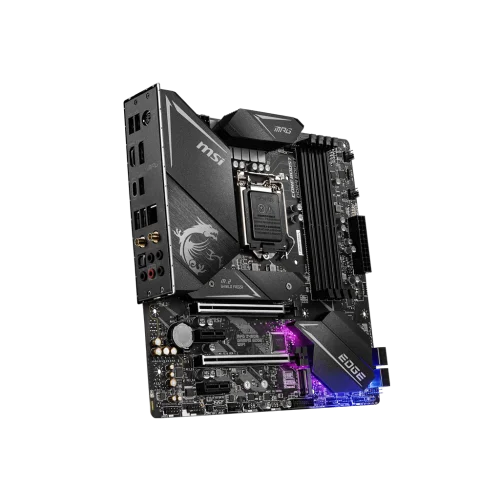

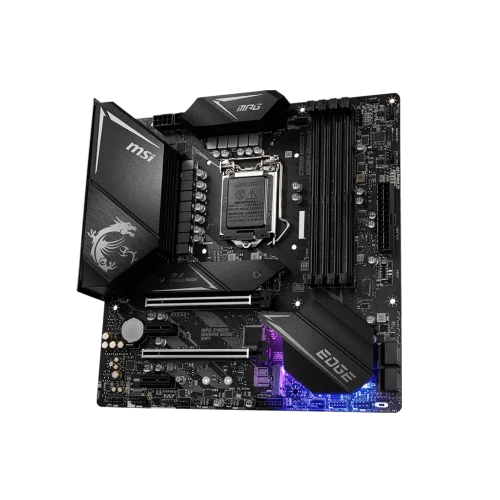

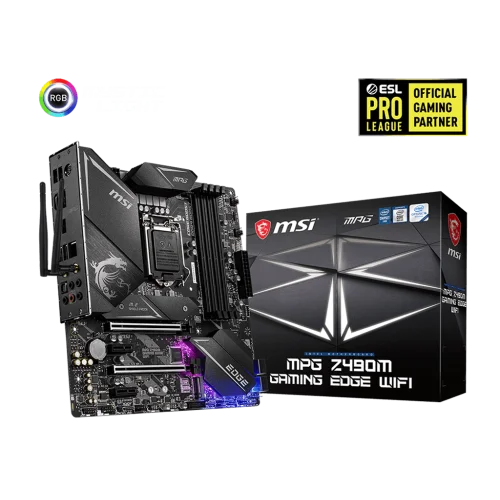

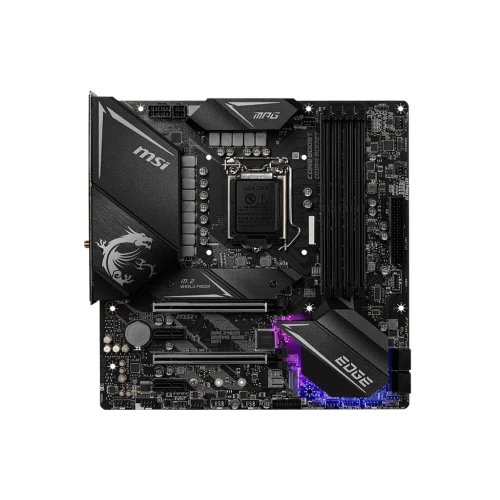

MSI MPG Z490M GAMING EDGE WIFI

MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
FREE SHIPPING Out Of Stock
MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
MSI MPG Z490M GAMING EDGE WIFI
This product qualifies for free shipping
This Product Is Eligible For Free Shipping In India
MSI MPG Z490M GAMING EDGE WIFI series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on anoth..
  • Stock: Out Of Stock
  • Model: MPG-Z490M-GAMING-EDGE-WIFI
Product Views: 47
Rs.21,599.00
Ex Tax: Rs.18,304.24

MSI MPG Z490M GAMING EDGE WIFI series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Audio Boost: Reward your ears with studio grade sound quality

Specifications


    ProcessorSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
    ChipsetIntel® Z490 Chipset
    Memory
    • 4x DDR4 memory slots, support up to 128GB
    • Supports 1R 2133/2666/2933 MHz*
      • 1DPC 1R Max speed up to 4800+ MHz
      • 1DPC 2R Max speed up to 4266+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)
    Expansion Slots
    • 2x PCIe 3.0 x16 slots, support x16/ x0 or x8/ x8 mode
    • 2x PCIe 3.0 x1 slots
    Onboard Graphics
    • 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
    • 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
    • Maximum shared memory is 1GB
    Multi-GPU
    • Supports 2-Way NVIDIA® SLI™ Technology
    • Supports 2-Way AMD® CrossFire™ Technology
    StorageIntel® Z490 Chipset
    • 4x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
      • M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
      • M2_2 slot supports 2242/ 2260 /2280 storage devices
      • Intel® Optane™ Memory Ready
    RAIDIntel® Z490 Chipset
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
    USB
    Intel® Z490 Chipset
    • 3x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C internal connector)
    • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AudioRealtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
    LAN1x Realtek® RTL8125B 2.5Gbps LAN controller
    WiFi & BluetoothIntel® AX201
    • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
    • WiFi 6 Pre-Certified
    • Supports Bluetooth® 5.1 , FIPS, FISMA
    • The Wireless module is pre-install in the M2 (Key-E) slot
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 1x 4-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 2 10Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 3x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 2x 4-pin RGB LED connector
    • 2x 3-pin RAINBOW LED connectors
    • 1x Serial port connector
    • 1xTPM module connector
    • 1x Clear CMOS jumper

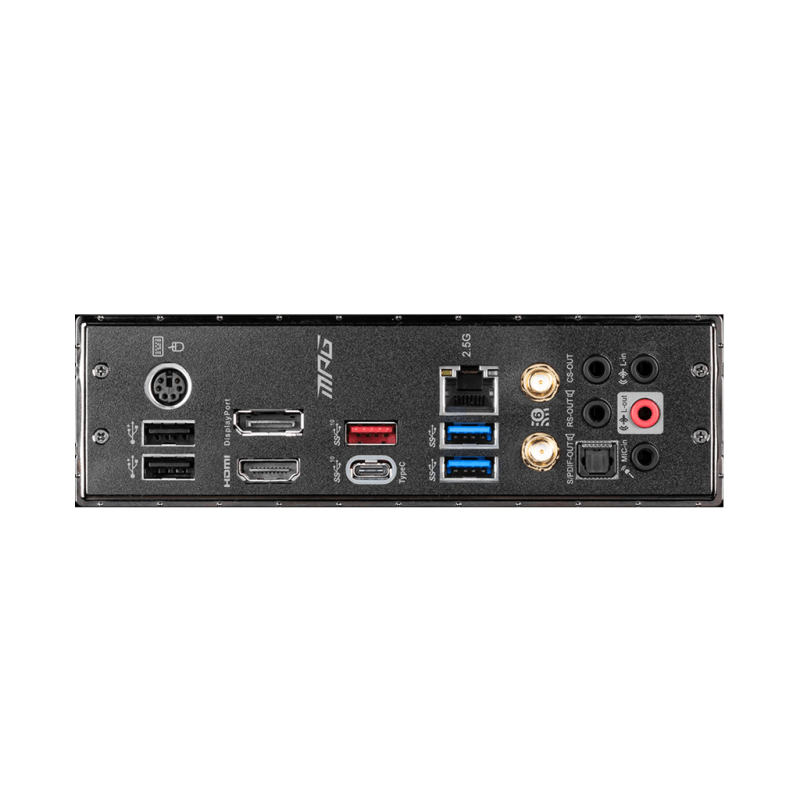

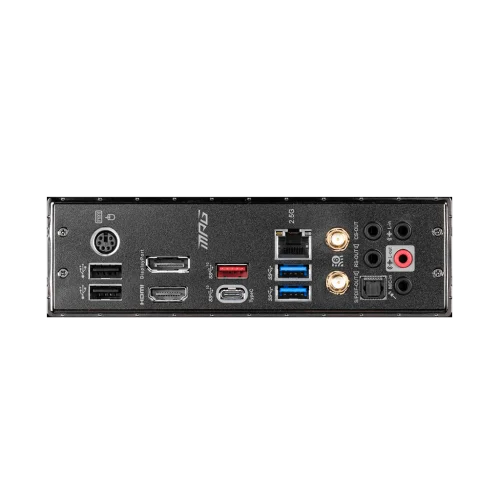

    Back panel ports
    • PS/2 Combo Port
    • DisplayPort
    • USB 3.2 Gen 2 10Gbps (Type-A)
    • LAN Port
    • HD Audio Connectors
    • USB 2.0
    • HDMI Port
    • USB 3.2 Gen 2 10Gbps (Type-C)
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • Wi-Fi / Bluetooth
    • Optical S/PDIF OUT
    Dimensions
    • Micro-ATX Form Factor
    • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
    Mounting8 mounting holes
    Operating SystemSupport for Windows® 10 64-bit
    Warranty3 Years
