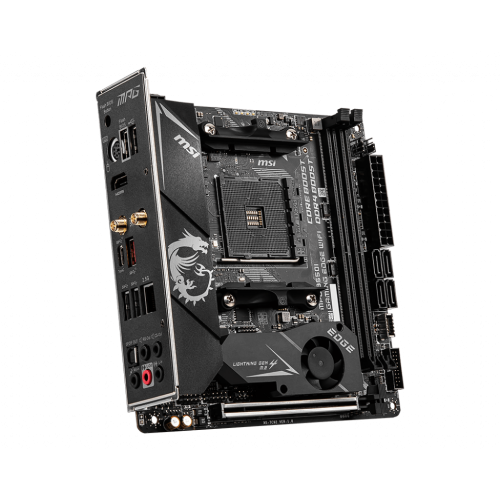

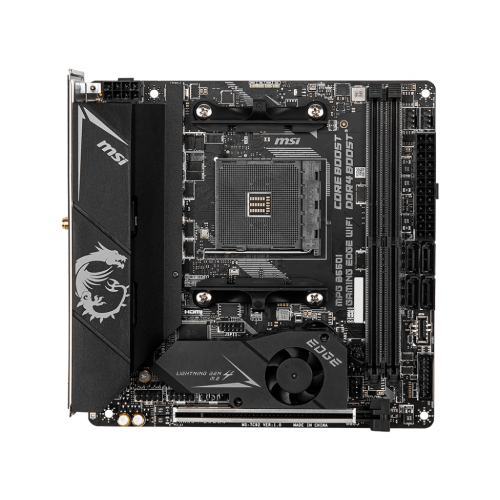

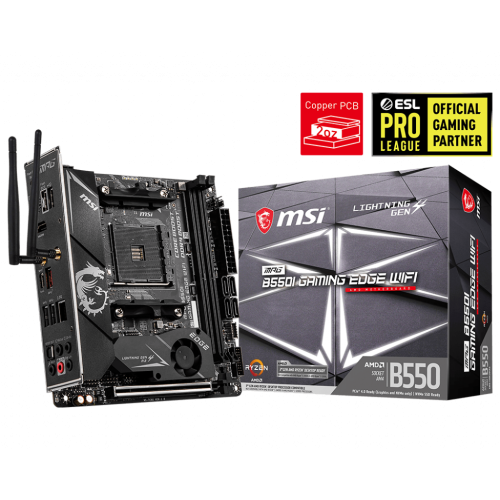

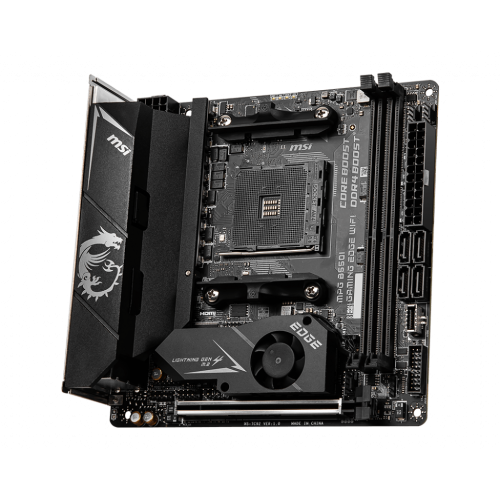

Msi MPG B550I Gaming Edge WIFI

Msi MPG B550I Gaming Edge WIFI

Features

• Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
• Supports DDR4 Memory, up to 4600(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector
• Enhanced Power Design: 8+2+1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost
• Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• HDMI 2.1: Support 4K display with up to 4096x2160@60Hz
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
• Audio Boost: Reward your ears with studio grade sound quality

Specifications :

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

AMD B550 Chipset

Memory

4x DDR4 memory slots, support up to 128GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE

1DPC 1R max speed 5100 MHZ

1DPC 2R max speed 3866 MHZ

2DPC 1R max speed 4000 MHZ

2DPC 2R max speed 3600 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Expansion Slots

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1

1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2

2x PCIe 3.0 x1 slots

The supported specification depends on installed processor.

When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.

Onboard Graphics

x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1

Maximum shared memory of 16 GB

Available for the processor with integrated graphics.

Multi-GPU

Supports 2-Way AMD CrossFire™ Technology

Storage

AMD B550 Chipset

6x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD Processor)

Supports PCIe 4.0/ 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0x4

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio

Realtek® ALC1200 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

1x Realtek® RTL8125B 2.5Gbps LAN controller

Wireless LAN & Bluetooth®

Intel® Wi-Fi 6 AX200

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.1

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

1x TPM module connector

1x Clear CMOS jumper

Back panel ports

PS/2 Combo Port

DisplayPort

2.5G LAN

USB 3.2 Gen 2 10Gbps (Type-A)

HD Audio Connectors

Flash BIOS Button

USB 2.0

HDMI

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)

Wi-Fi / Bluetooth

Optical S/PDIF OUT

LED Features

1x EZ LED Control switch

4x EZ Debug LED

I/O Controller

NUVOTON NCT6687-R Controller Chip

Hardware Monitor

CPU/ System/ Chipset temperature detection

CPU/ System/ Pump fan speed detection

CPU/ System/ Pump fan speed control

Form Factor

Mini-ITX Form Factor

6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

Warranty

3 Years
