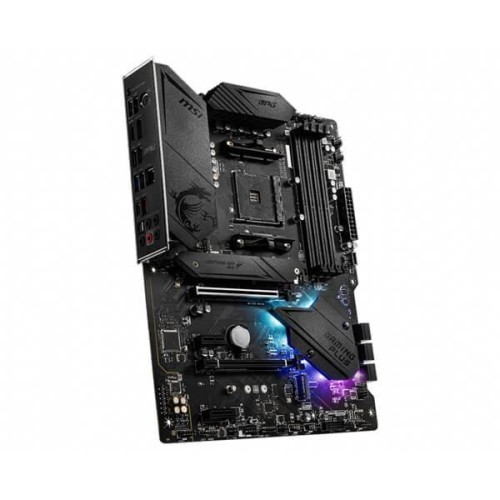

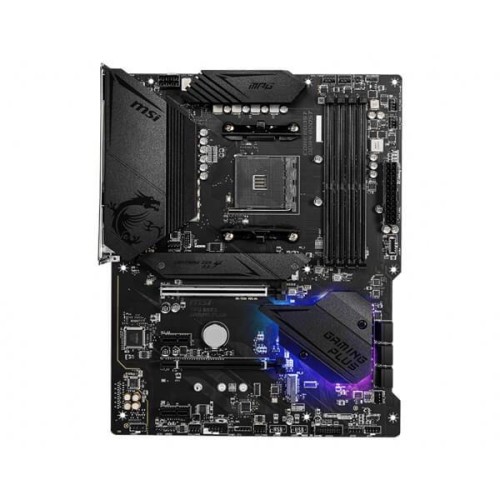

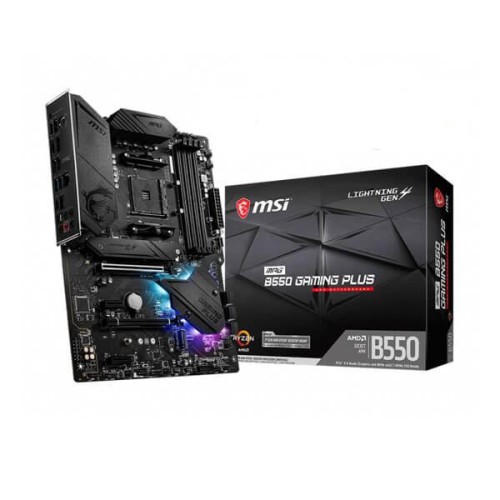

MSI MPG B550 GAMING PLUS Motherboard

Features

• Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
• Supports DDR4 Memory, up to 4400(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
• Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
• Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
• Audio Boost: Reward your ears with studio grade sound quality

Specifications :

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

Chipset

AMD B550 Chipset

Memory

4x DDR4 memory slots, support up to 128GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHz

1DPC 2R max speed 3866 MHz

2DPC 1R max speed 4000 MHz

2DPC 2R max speed 3600 MHz

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Expansion Slot

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)

1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed

2x PCIe 3.0 x1 slots

Multi-GPU

Supports 2-Way AMD CrossFire™ Technology

Onboard Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Maximum shared memory of 16 GB

Storage

AMD B550 Chipset

6x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD Processor)

Supports PCIe 4.0/ 3.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0x4

Supports 2242/ 2260/ 2280 storage devices

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio

Realtek® ALC892 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

1x Realtek® 8111H Gigabit LAN controller

LED Features

1x EZ LED Control switch

4x EZ Debug LED

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1xTPM module connector

1x Clear CMOS jumper

Back panel ports

PS/2 Combo Port

DisplayPort

LAN Port

USB 3.2 Gen 2 10Gbps (Type-A)

HD Audio Connectors

Flash BIOS Button

USB 2.0

HDMI

USB 2.0

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)

Optical S/PDIF OUT

Dimensions

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes

I/O Controller

NUVOTON NCT6687-R Controller Chip

Hardware Monitor

CPU/ System/ Chipset temperature detection

CPU/ System/ Pump fan speed detection

CPU/ System/ Pump fan speed control

Warranty

3 Years
