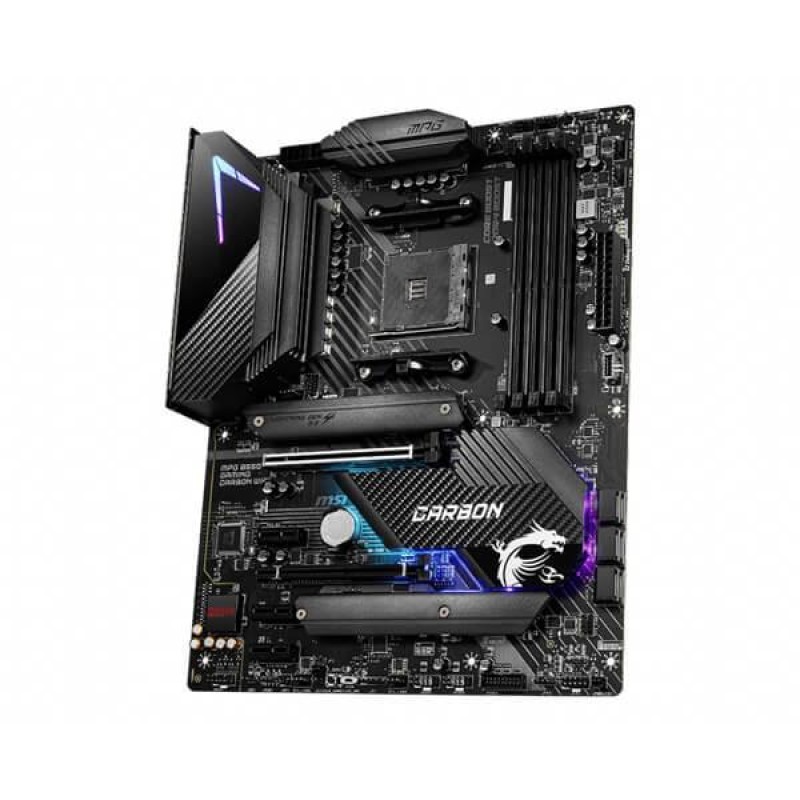

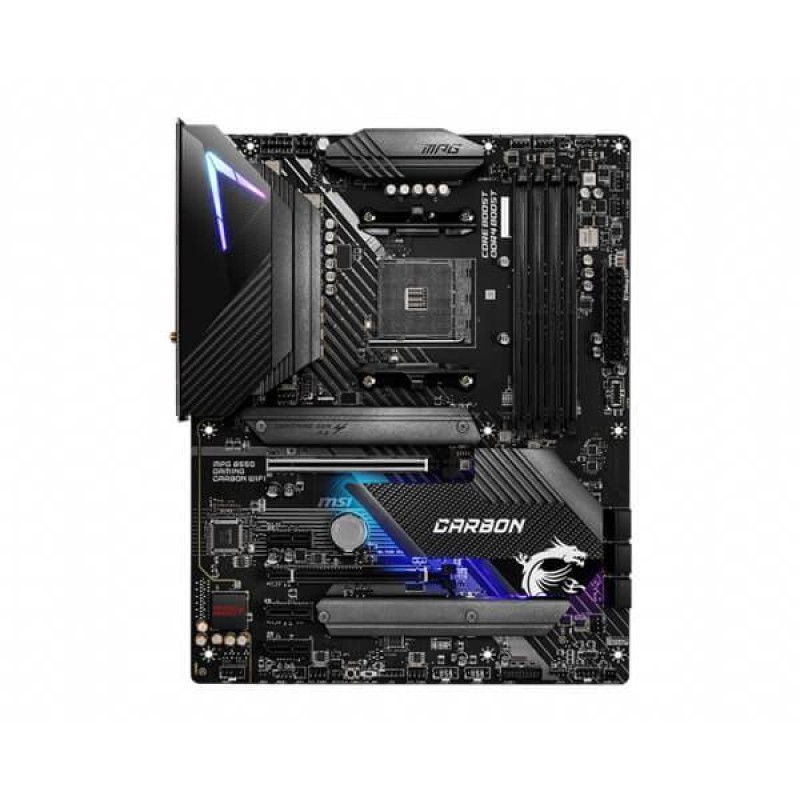

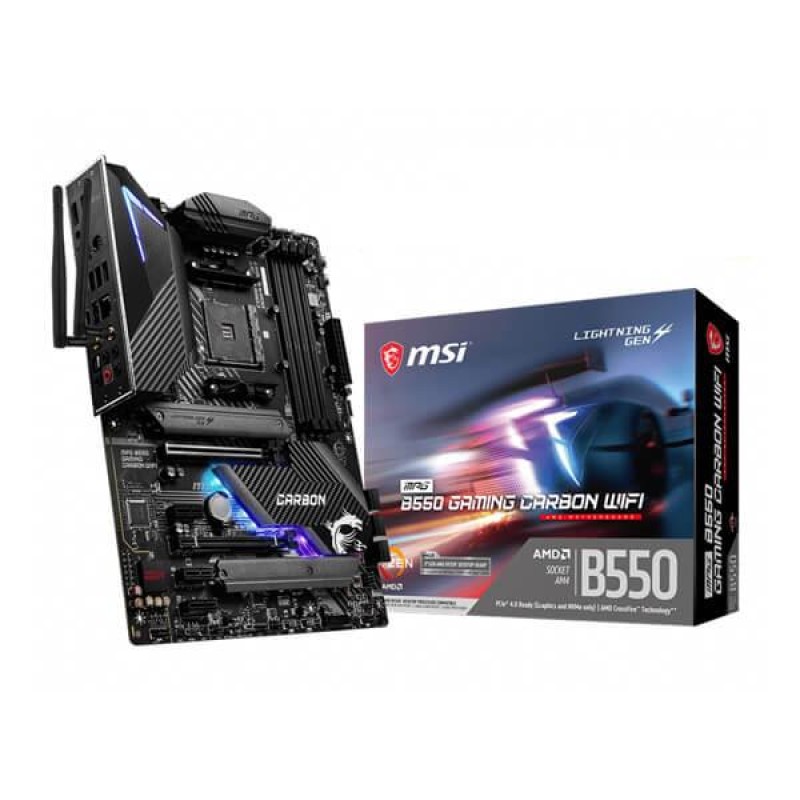

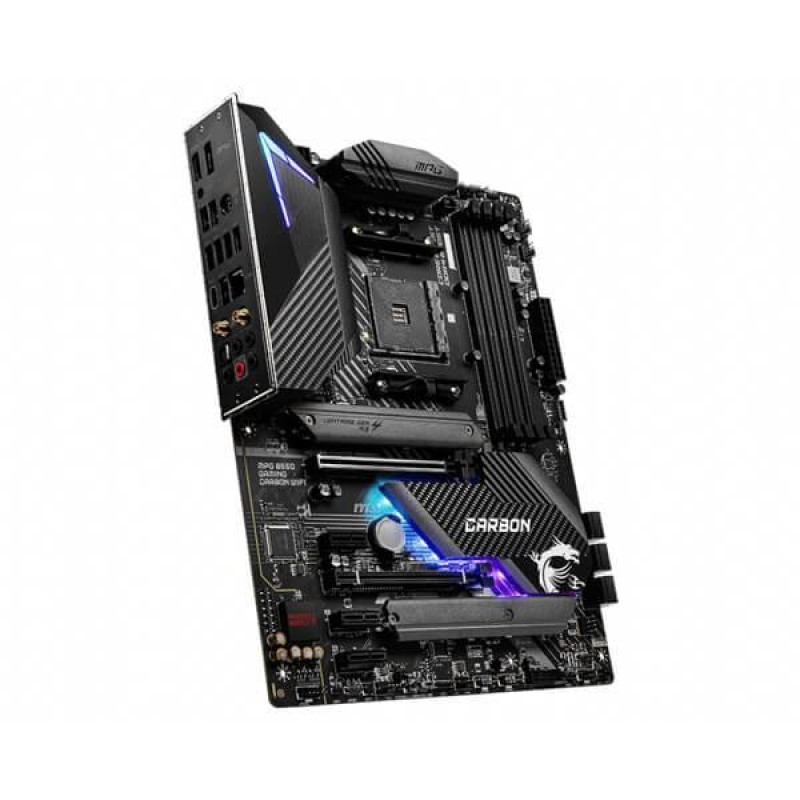

MSI MPG B550 GAMING CARBON WIFI

MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
FREE SHIPPING Out Of Stock
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
This product qualifies for free shipping
This Product Is Eligible For Free Shipping In India
MSI MPG B550 GAMING CARBON WIFI brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another lev..
  • Stock: Out Of Stock
  • Model: MSI MPG B550 GAMING CARBON WIFI
Product Views: 470
Rs.22,499.00
Excl. GST: Rs.19,066.95

MSI MPG B550 GAMING CARBON WIFI brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

Features

  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4866(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: 12+2+1 Digital Power with Doubler Design, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications


    CPUSupports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
    ChipsetAMD B550 Chipset
    Memory
    • 4x DDR4 memory slots, support up to 128GB
      • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
      • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866+ MHz by A-XMP OC MODE
        • 1DPC 1R max speed 4866 MHZ
        • 1DPC 2R max speed 3866 MHZ
        • 2DPC 1R max speed 4000 MHZ
        • 2DPC 2R max speed 3600 MHZ
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    Expansion Slots
    • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
    • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
    • 3x PCIe 3.0 x1 slots
    Onboard Graphics
    • x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
    • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
    • Maximum shared memory of 2048 MB
    Multi-GPUSupports 2-Way AMD CrossFire™ Technology
    StorageAMD B550 Chipset
    • 6x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • M2_1 slot (from AMD Processor)
        • Supports PCIe 4.0/ 3.0 x4
        • Supports SATA 6Gb/s
        • Supports 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 slot (from AMD B550 chipset)
        • Supports PCIe 3.0x4
        • Supports 2242/ 2260/ 2280 storage devices
    RAID
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USBAMD B550 Chipset
    • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
    • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AMD Processor
    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
    • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
    AudioRealtek® ALC1200 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
    LAN1x Realtek® RTL8125B 2.5Gbps LAN controller
    Wireless LAN & Bluetooth®Intel® Wi-Fi 6 AX200
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax
    • Supports Bluetooth® 5.1
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 1x 4-pin ATX 12V power connector
    • 6x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 6x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1x 4-pin RGB LED connectors
    • 2x 3-pin RAINBOW LED connectors
    • 1x RGB CORSAIR connector
    • 1x TPM module connector
    • 1x Clear CMOS jumper

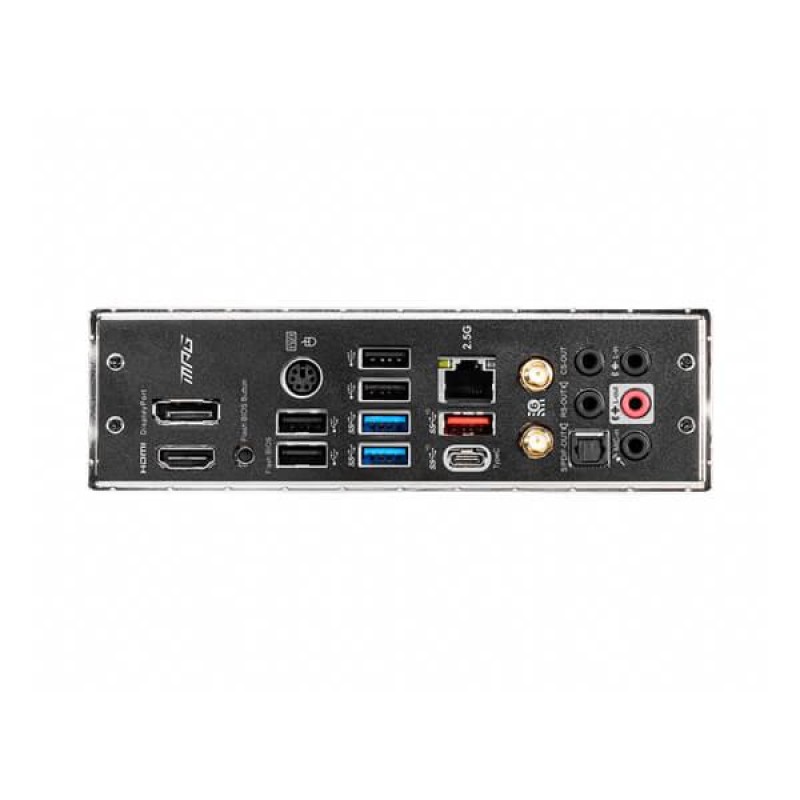

    Back panel ports
    • DisplayPort
    • PS/2 Combo Port
    • USB 2.0
    • 2.5G LAN
    • HD Audio Connectors
    • HDMI
    • Flash BIOS Button
    • USB 2.0
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-A+C)
    • Wi-Fi / Bluetooth
    • Optical S/PDIF OUT
    LED Features
    • 1x EZ LED Control switch
    • 4x EZ Debug LED
    I/O ControllerNUVOTON NCT6687-R Controller Chip
    Hardware Monitor
    • CPU/ System/ Chipset temperature detection
    • CPU/ System/ Pump fan speed detection
    • CPU/ System/ Pump fan speed control
    Form Factor
    • ATX Form Factor
    • 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
    Warranty3 Years
    Note***Features, Price and Specifications are subject to change without notice.
