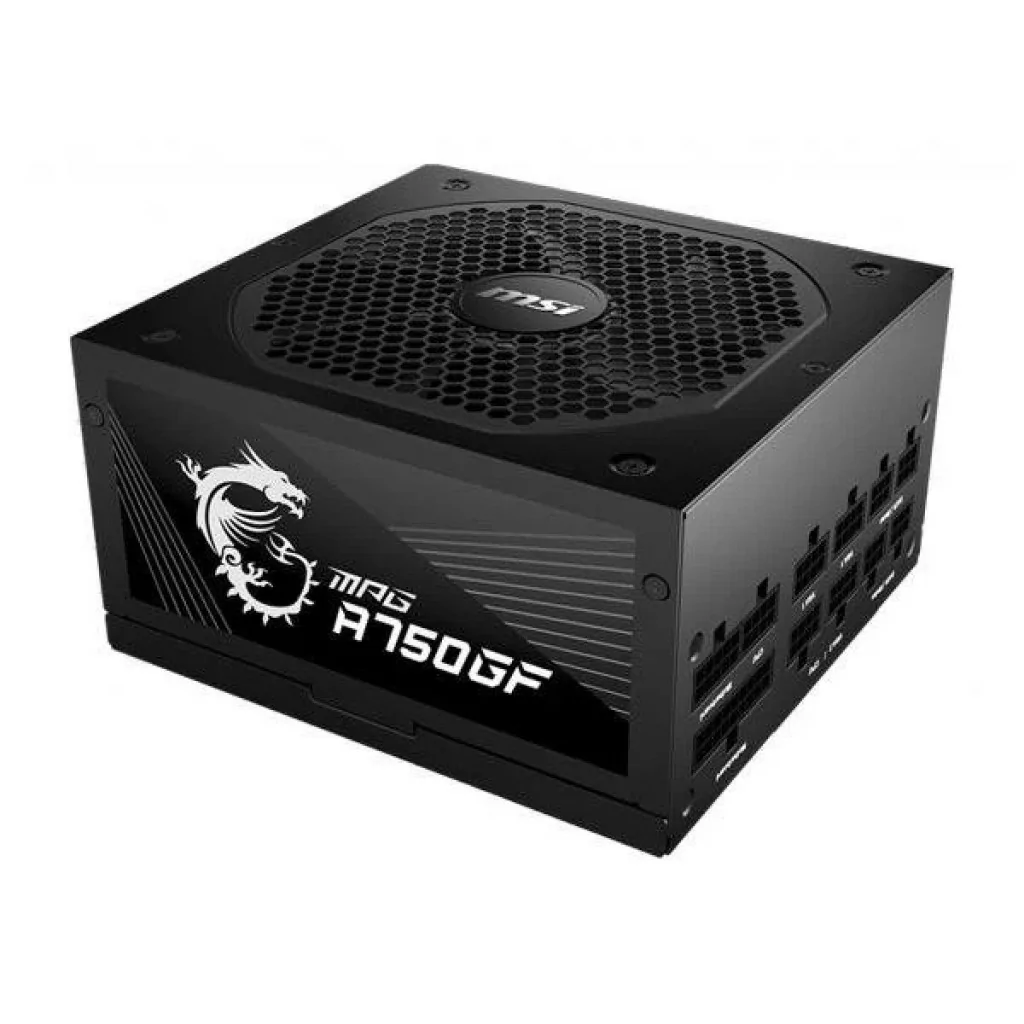

MAG A750 GF
- Supports the NVIDIA GeForce RTX™ 30 Series GPUs
- Full modular cable design
- Flat cable equipment
- 10-year warranty
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
GPU SUPPORT FOR ALL
The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
TRUSTWORTHY AND EFFICIENT
The MPG gaming power supply is proudly backed by a 10-year limited warranty, guaranteeing long term reliable operation.
100% JAPANESE 105° C CAPACITORS
Aiming for unwavering product quality and performance stability, the MPG gaming power supply comes with 100% Japanese 105° C capacitors and solid capacitors.
ONLY WHAT YOU NEED
Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply’s fully modular design, it means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.
ALL THE MORE ORGANIZED
All of the MPG gaming power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.
FEELS RIGHT AT HOME
The MPG gaming power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.
ALLOY COPPER CONNECTOR TERMINALS
The MPG gaming power supply’s CPU, VGA, and MB connectors utilize alloy copper terminals that can withstand higher current ratings than traditional phosphor bronze cable terminals.
|PRODUCT NAME||MPG A750GF|
|PSU FORM FACTOR||ATX|
|INPUT VOLTAGE||100~240 Vac|
|INPUT CURRENT||115Vac/10.0A max. 230Vac/5.0A max.|
|INPUT FREQUENCY||47Hz ~ 63Hz|
|ATX12V (Motherboard) 20+4 pin||1|
|EPS12V (CPU) 4+4 pin||2|
|PCIe (VGA) 6+2 pin||6|
|SATA 15 pin||8|
|Peripheral 4 pin||4|
|FDD 4 pin||1|
|EFFICIENCY||Up to 90% (80 Plus Gold)|
|FAN SIZE||140 mm|
|DIMENSION||150mm x160mm x86mm|
|PFC TYPE||Active PFC|
|PROTECTION||OCP / OVP / OPP / OTP / SCP / UVP|
