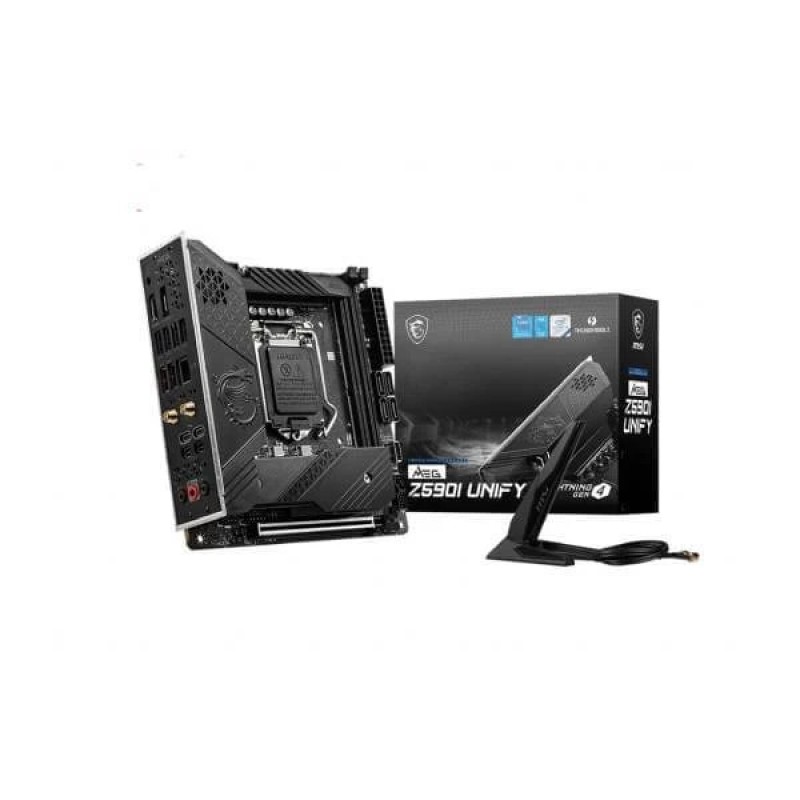

MSI MEG Z590I UNIFY (Wi-Fi) Motherboard

The MSI MEG Series Z590I Unify is a Mini-ITX High Performance 11th Gen Rocket Lake Motherboard Featuring Intel WiFi 6E, 2.5 Gigabit Ethernet, 10 Layer PCB Design and DDR4 5666 MHz Memory Support.

Features

MEG Z590I UNIFY

• Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5600(OC) MHz
• Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
• Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
• Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
• 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
• Twin M.2 Connectors : Onboard dual M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution.
• 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Specifications:

• PROCESSOR

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors

Processor socket LGA1200

• CHIPSET

Intel® Z590 Chipset

• MEMORY

2x DDR4 memory slots, support up to 64GB

Supports 1R 2133/2666/2933 MHz for 10th Gen Intel®CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel®CPU (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5600 MHz

1DPC 2R Max speed up to 4800+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile [XMP]

• EXPANSION SLOTS

1x PCIe x16 slot

Support up to PCIe 4.0 for 11th Gen Intel® CPU

Support up to PCIe 3.0 for 11th Gen Intel® CPU

• ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

• THUNDERBOLT™ 4

Intel® JHL8540Thunderbolt™ 4 Controller

2x Thunderbolt™ 4 (USB-C) ports on the back panel

Support up to 40Gbps transfer rate with Thunderbolt devices

Support up to 20Gbps transfer rate with USB4 devices

Support up to 10Gbps transfer rate with USB 3.2 devices

Support up to 5V/3A ,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)/li>

• STORAGE

4x SATA 6Gb/s ports (from Z590 chipset)

2x M.2 slots (Key M)

M2_1 slot

Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)

Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset)

Supports 2280 storage devices

M2_2 slot (from Z590 chipset)

Supports PCIe 3.0 x4 only

Supports 2280 storage devices

Intel® Optane™ Memory Ready

Supports Intel® Smart Response Technology for Intel Core™ processors

• RAID

Intel® Z590 Chipset

Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• USB

Intel® Z590 Chipset

3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

• AUDIO

Realtek® ALC1220P Codec

7.1-Channel High Definition Audio

• LAN

1x Inte® I225-V 2.5Gbps LAN controller

• WIRELESS LAN & BLUETOOTH

Intel Wi-Fi 6E AX210

The Wireless module is pre-installed in the M.2 [Key-E] slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.22, FIPS, FISMA

• INTERNAL CONNECTORS

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

2x M.2 slots [M-Key]

1x USB 3.2 Gen2 10Gbps Type-C port

1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]

1x USB 2.0 connector [supports additional 2 USB 2.0 ports]

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1xTPM module connector

• LED FEATURE

4x EZ Debug LED

1x 3-pin RAINBOW LED connectors

• BACK PANEL CONNECTORS

DisplayPort

USB 2.0

2.5G LAN

Wi-Fi /Bluetooth

Thunderbolt 4 40Gbps (Type-C)

HD Audio Connectors

Clear CMOS Button

HDMI

USB 3.2 Gen1 5Gbps (Type-A)

USB 3.2 Gen2 10Gbps (Type-A)

Mini DisplayPort Input (for Thunderbolt passthrough)

• DIMENSIONS

6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]

Mini-ITX Form Factor

MOUNTING- 4 Mounting Holes

OPERATING SYSTEM- Support for Windows® 10 64-bit

Warranty- 3 Years
