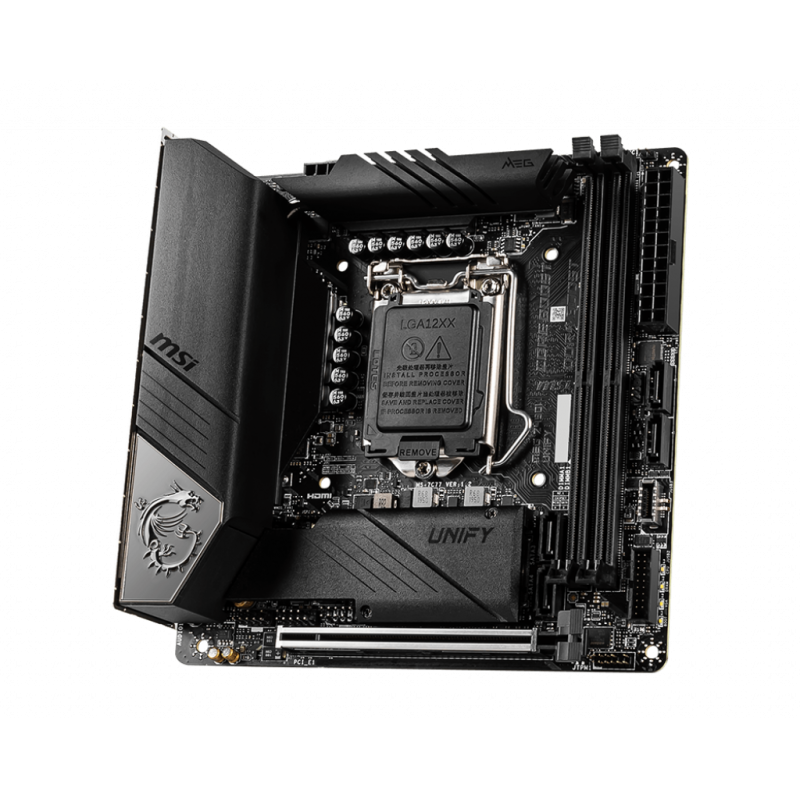

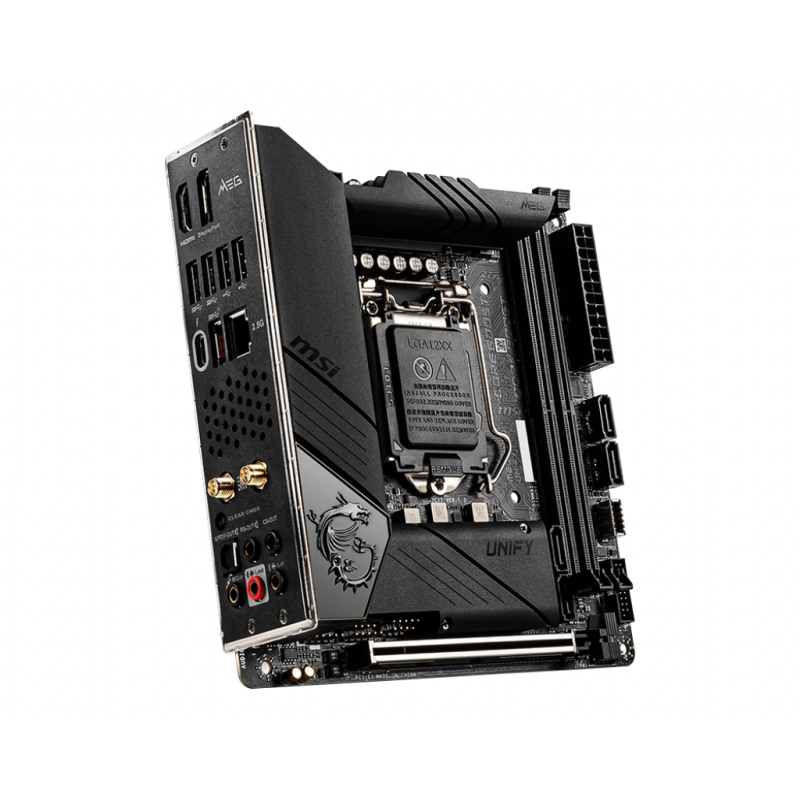

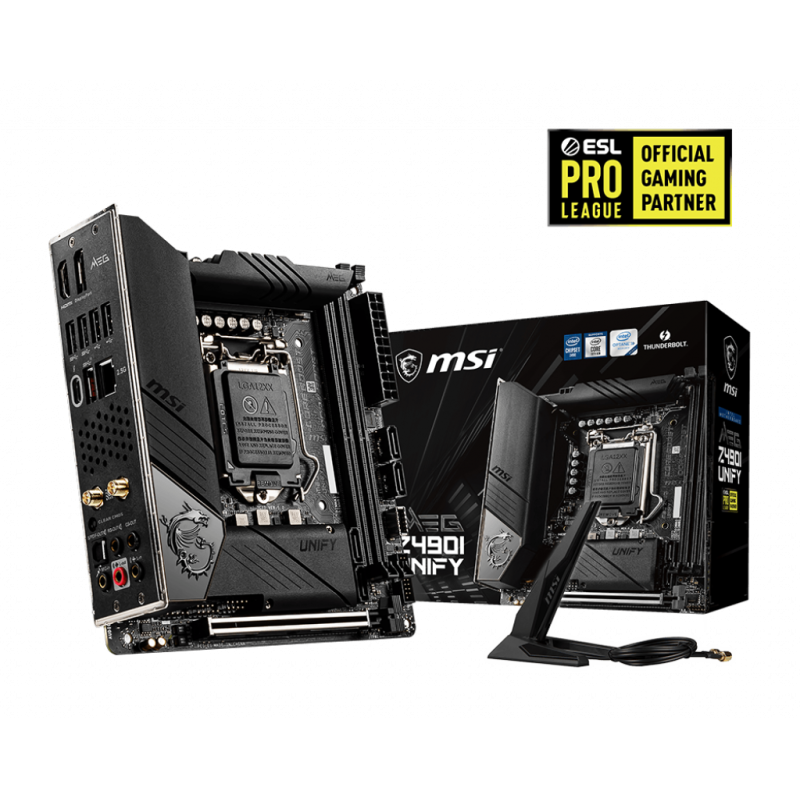

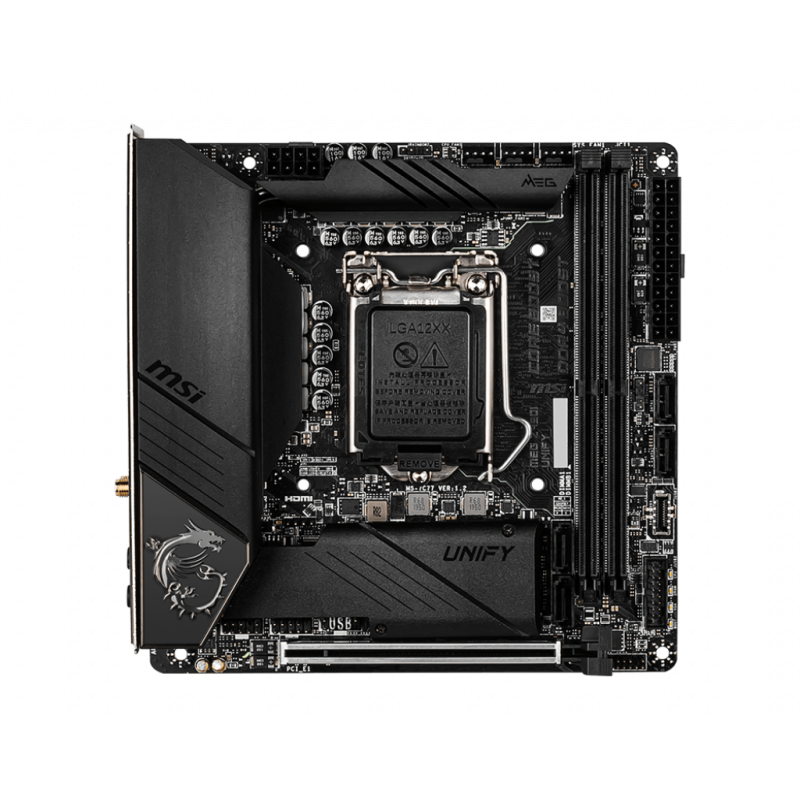

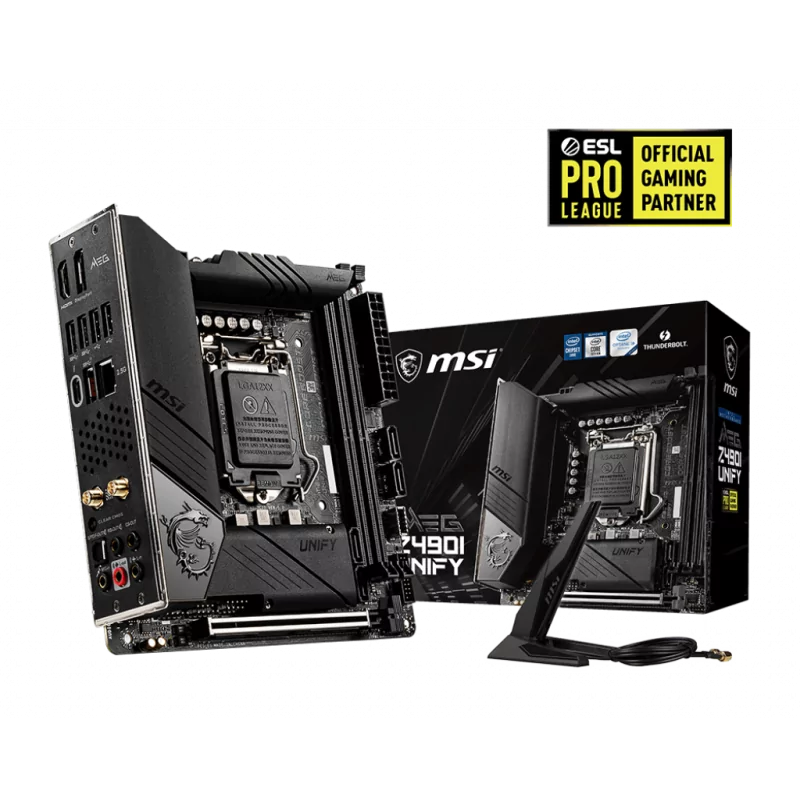

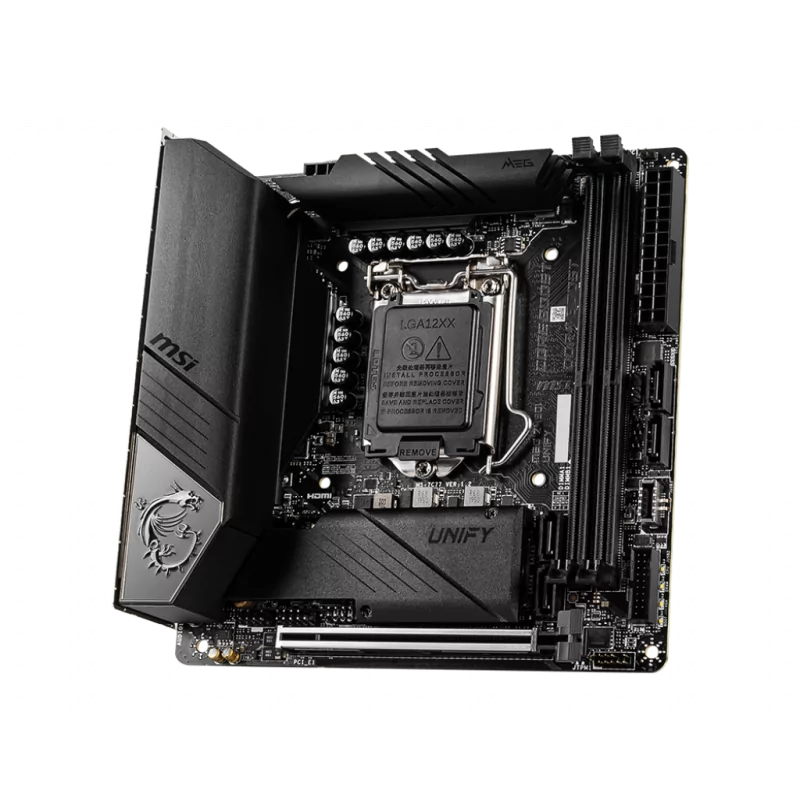

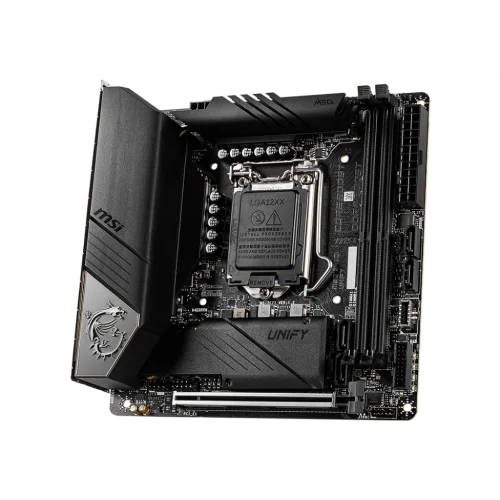

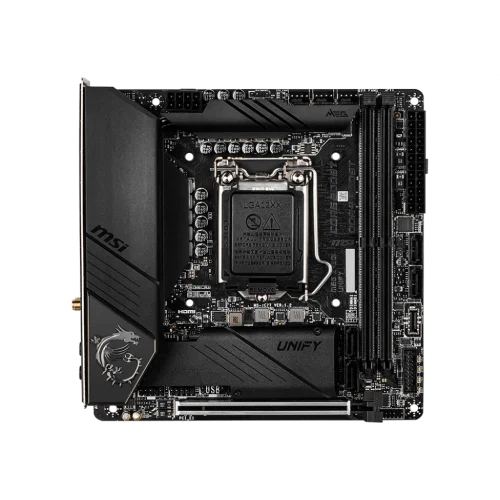

MSI MEG Z490I UNIFY

MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
FREE SHIPPING Out Of Stock
MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
MSI MEG Z490I UNIFY
This product qualifies for free shipping
This Product Is Eligible For Free Shipping In India
MSI MEG Z490I UNIFY series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengt..
  • Stock: Out Of Stock
  • Model: MEG-Z490I-UNIFY
Product Views: 63
Rs.26,599.00
Ex Tax: Rs.22,541.53

MSI MEG Z490I UNIFY series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5000(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Thunderbolt™ 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices.
  • Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
  • Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
  • Latest Network Solution: Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
  • Twin Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications


    ProcessorSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors
    ChipsetIntel® Z490 Chipset
    Memory
    • 2x DDR4 memory slots, support up to 64GB
    • Supports 1R 2133/2666/2933 MHz
      • 1DPC 1R Max speed up to 5000+ MHz
      • 1DPC 2R Max speed up to 4500+ MHz
    • Supports Dual-Channel mode
    • Supports non-ECC mode, un-buffered memory
    • Supports Intel® Extreme Memory Profile [XMP]
    Expansion Slots1x PCIe 3.0 x16 slot
    Onbaord Graphics
    • 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
    • 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
    • Intel® JHL7540 Thunderbolt™ 3 Controller
    • 1x Thunderbolt™ 3 [Type-C] port on the back panel
      • Supports Thunderbolt™ 3 with a maximum resolution of 3840x2160 @60Hz or DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
    • Maximum shared memory is 1GB
    Thunderbolt™ 3Intel® JHL7540 Thunderbolt™ 3 Controller
    • 1x Thunderbolt™ 3 [USB Type-C] port on the back panel
    • Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices
    • Supports up to 10 Gbps transfer rate with USB 3.2 Gen2 10Gbps devices
    • Supports up to 5V/3A , 15W power charging
    • Supports Daisy-chain up to six Thunderbolt™ 3 devices
    StorageIntel® Z490 Chipset
    • 4x SATA 6Gb/s ports
    • 2x M.2 slots [Key M]
      • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices
      • M2_2 supports up to PCIe 3.0 x4, 2280 storage devices
      • Intel® Optane™ Memory Ready
      • Supports Intel® Smart Response Technology for Intel Core™ processors
    RAIDIntel® Z490 Chipset
    • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
    USB
    • Intel® Z490 Chipset
      • 2x USB 3.2 Gen2 10Gbps ports [1 Type-A port on the back panel, 1 Type-C internal connector]
      • 4x USB 3.2 Gen1 5Gbps ports [2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen1 5Gbps connector]
      • 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]
    • Intel® JHL7540 Thunderbolt™ 3 Controller
      • 1x USB 3.2 Gen2 10Gbps Type-C port on the back panel
    AudioRealtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
    LAN1x Realtek® RTL8125B 2.5Gbps LAN controller
    Wireless LAN & BluetoothIntel® AX201
    • The Wireless module is pre-installed in the M.2 [Key-E] slot
    • Supports MU-MIM0 TX/RX, 2.4GHz/ 5GHz [160MHz] up to 2.4Gbps
    • Supports 802.11ac
    • WiFi 6 pre-certified
    • Supports Bluetooth® 5.1, FIPS, FISMA
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 2x M.2 slots [M-Key]
    • 1x USB 3.2 Gen2 10Gbps Type-C port
    • 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]
    • 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 1x 4-pin system fan connector
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 2x 3-pin RAINB0W LED connectors
    • 1xTPM module connector
    LED Features4x EZ Debug LED

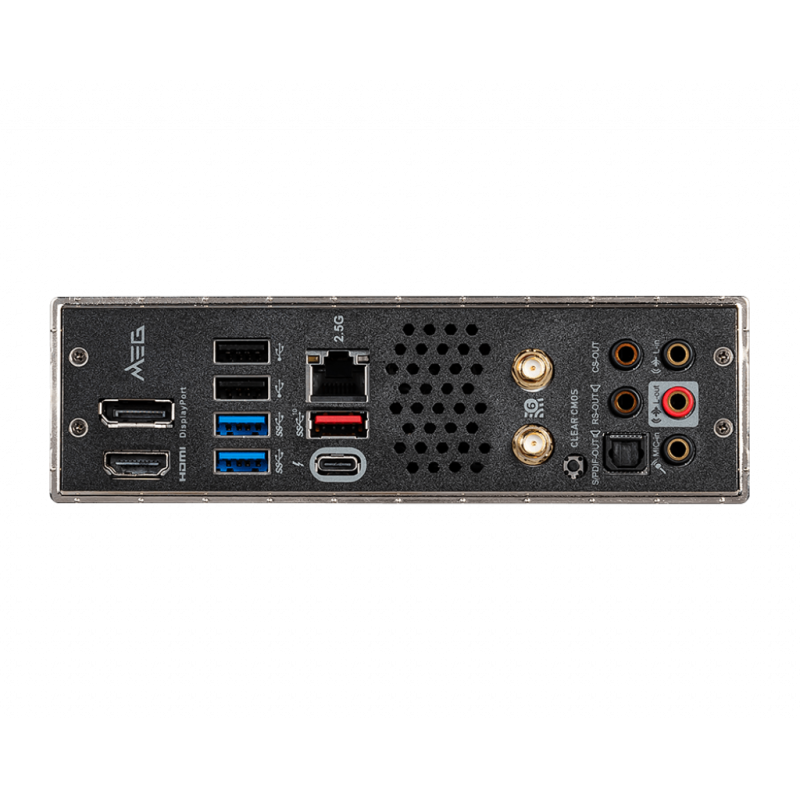

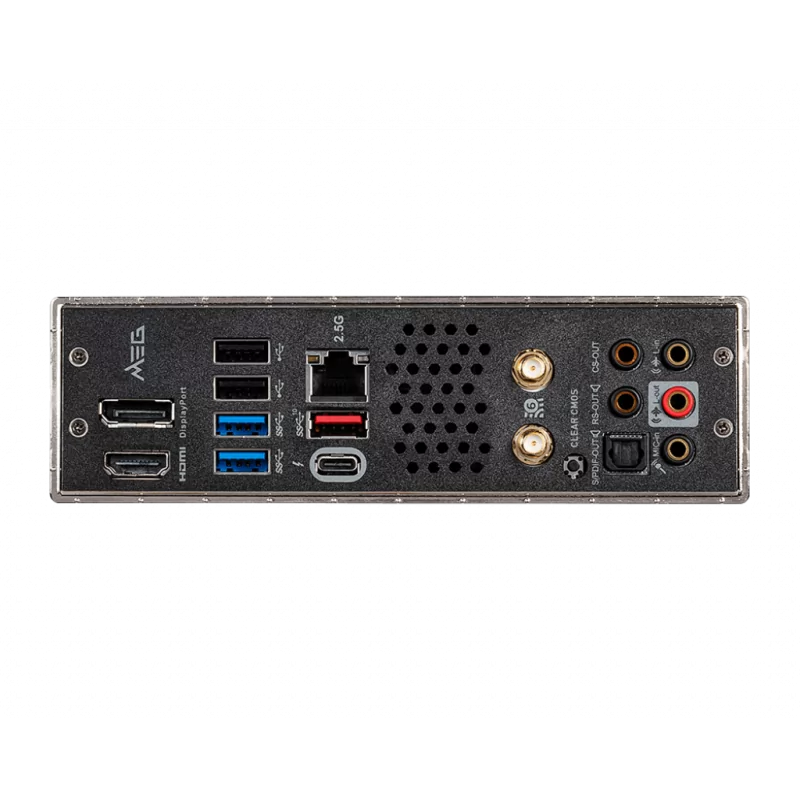

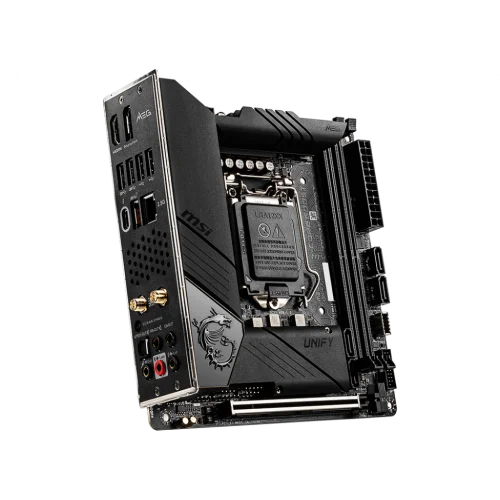

    Back Panel Connectors
    • Display port
    • USB 2.0 ports
    • 2.5G LAN
    • Wi-Fi /Bluetooth Antenna Connectors
    • HD Audio Connectors
    • HDMI port
    • USB 3.2 Gen1 5Gbps (Type-A)
    • Thunderbolt 3 (40Gbps)
    • USB 3.2 Gen2 10Gbps (Type-A)
    • Clear CM0S Button
    • 0ptical S/PDIF 0ut
    Dimensions
    • 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
    • Mini-ITX Form Factor
    Mounting4 mounting holes
    Operating SystemSupport for Windows® 10 64-bit
    Warranty3 Years
