MSI MEG Z490 ACE

MSI MEG Z490 ACE
MSI MEG Z490 ACE
MSI MEG Z490 ACE
MSI MEG Z490 ACE
MSI MEG Z490 ACE
Out Of Stock
MSI MEG Z490 ACE
MSI MEG Z490 ACE
MSI MEG Z490 ACE
MSI MEG Z490 ACE
MSI MEG Z490 ACE
MSI MEG Z490 ACE
  • Stock: Out Of Stock
  • Model: MEG-Z490-ACE
  • SKU: TLG-002751
  • EAN: 4719072718923
Rs.42,999.00
Ex Tax: Rs.36,439.83

MSI MEG Z490 ACE

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, RAINBOW and CORSIAR LED strip.
  • Extreme Power Design: INTERSIL digital PWM, 16+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
  • Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, MOSFET Baseplate and M.2 Shield Frozr ensure the extreme performance with low temp.
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
  • Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
  • Triple Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
  • Audio Boost HD: Isolated audio with a high quality audio processor with ESS DAC & Nahimic for the most immersive gaming experience.

Specifications

    ProcessorSupports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket
    ChipsetIntel® Z490 Chipset
    Memory
    • 4x DDR4 memory slots, support up to 128GB
    • Supports 1R 2133/2666/2933 MHz
      • 1DPC 1R Max speed up to 4800+ MHz
      • 1DPC 2R Max speed up to 4266+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
    • Supports Dual-Channel mode
    • Supports non-ECC mode, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)
    Expansion Slots
    • 3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
    • 2x PCIe x1 slots (from PCH)
    Multi-GPU
    • Supports 2-Way NVIDIA® SLI™ Technology
    • Supports 3-Way AMD® CrossFire™ Technology
    StorageIntel® Z490 Chipset
    • 6x SATA 6Gb/s ports
    • 3x M.2 slots (Key M)
      • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
      • M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
      • Supports Intel® Smart Response Technology for Intel Core™ processors
    RAIDIntel® Z490 Chipset
    • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices
    USBIntel® Z490 Chipset
    • 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)
    • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    ASMedia® 3241 chipset
    • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
    AudioRealtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC
    • 7.1-Channel High Definition Audio
    • Supports Optical S/PDIF output
    LAN
    • 1x Realtek® 8125B 2.5G LAN controller
    • 1x Intel® I219V 1G LAN controller
    WiFi & BluetoothIntel® AX201
    • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
    • WiFi 6 Pre-Certified
    • Supports Bluetooth® 5.1 , FIPS, FISMA
    • The Wireless module is pre-install in the M2 (Key-E) slot
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 2x 8-pin ATX 12V power connectors
    • 6x SATA 6Gb/s connectors
    • 3x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 2 10Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump connector
    • 6x 4-pin system fan connectors
    • 1x front panel audio connector
    • 2x system panel connectors
    • 1x Chassis Intrusion connector
    • 1x slow mode jumper
    • 1x power button
    • 1x reset button
    • 1x 4-pin RGB LED connector
    • 2x 3-pin RAINBOW LED connectors
    • 1x 3-pin CORSAIR LED connector

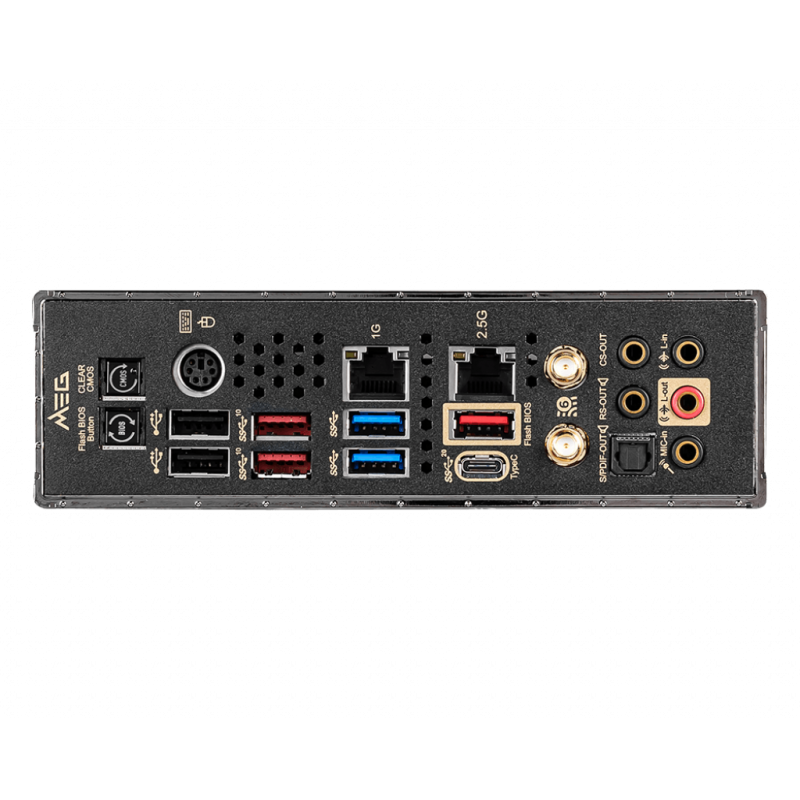

    Back panel ports
    • Clear CMOS Button
    • PS/2 Keyboard / Mouse Port
    • 1G LAN
    • 2.5G LAN
    • Wi-Fi /Bluetooth Antenna Connectors
    • HD Audio Connectors
    • Flash BIOS Button
    • USB 2.0 Ports
    • USB 3.2 Gen 2 10Gbps (Type-A)
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 2x2 20Gbps (Type-C)
    • Optical S/PDIF-Out
    Dimensions
    • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    • ATX Form Factor
    Mounting9 mounting holes
    Operating SystemSupport for Windows® 10 64-bit
    Warranty3 Years
