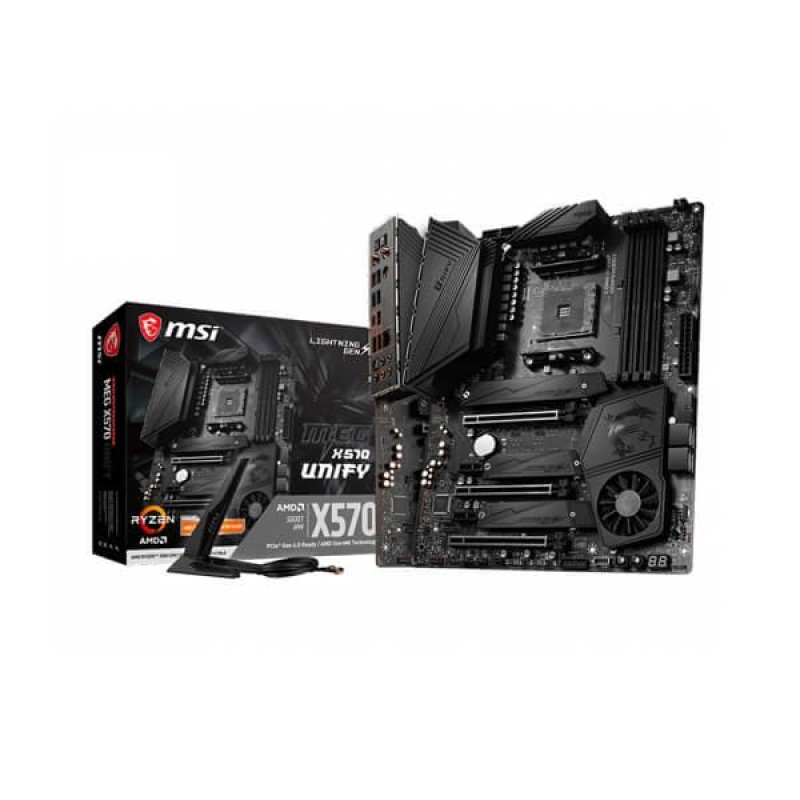

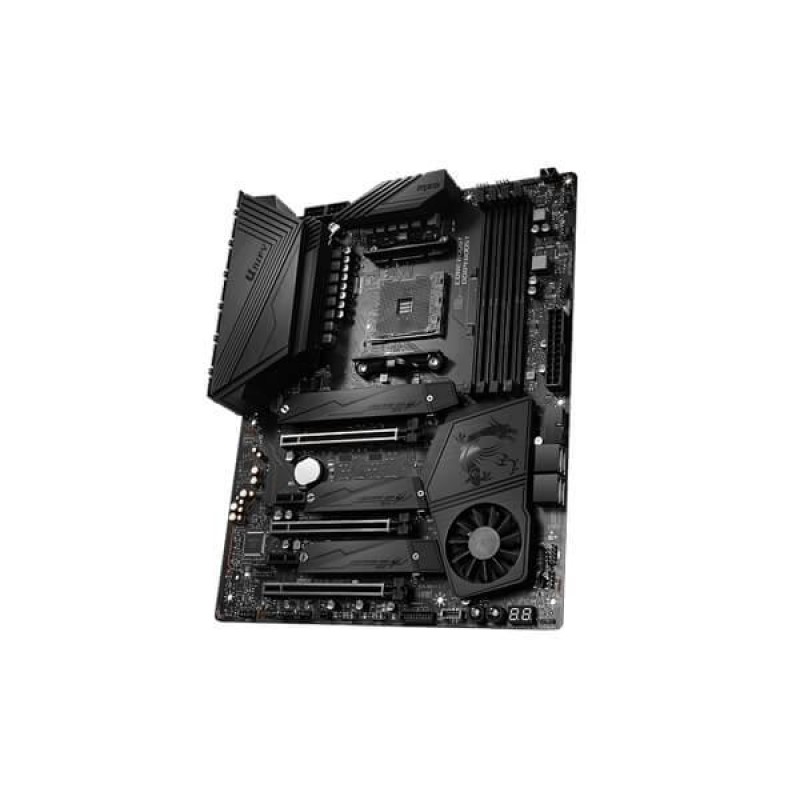

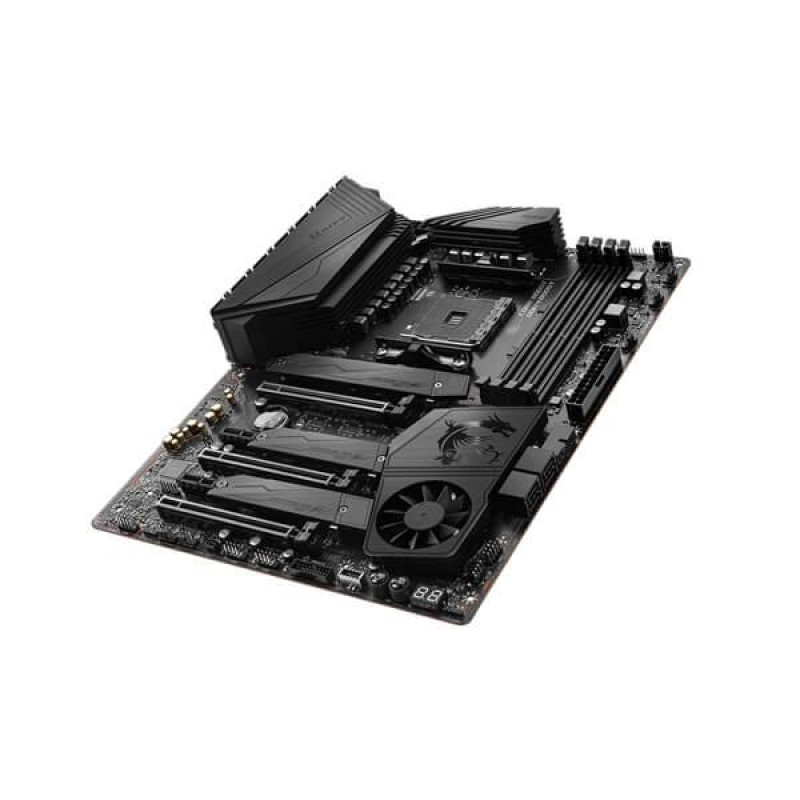

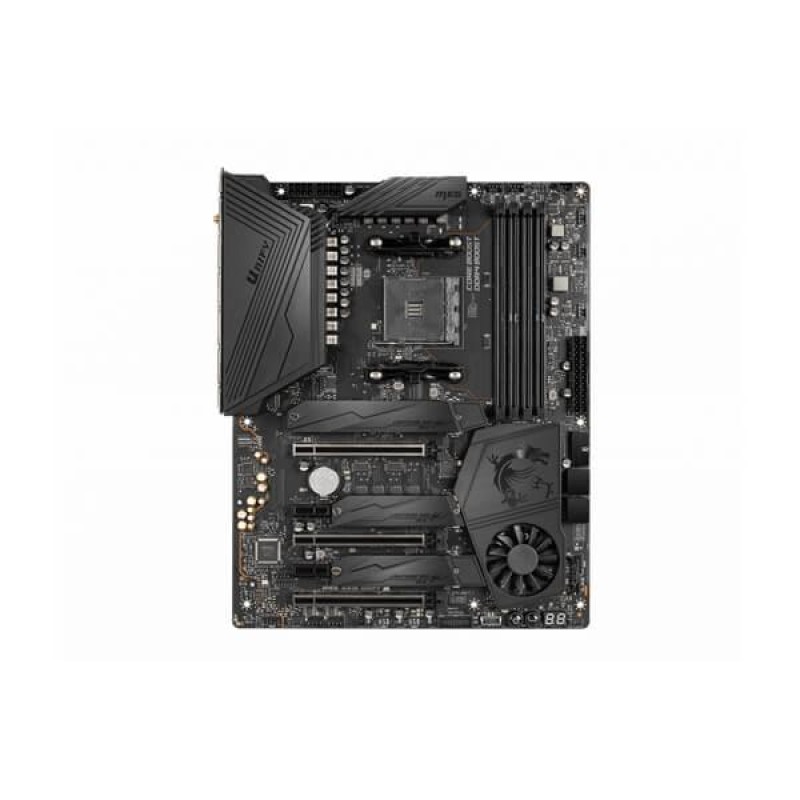

Msi MEG X570 Unify Wi-Fi Motherboard

Msi MEG X570 Unify Wi-Fi Motherboard
Msi MEG X570 Unify Wi-Fi Motherboard
Msi MEG X570 Unify Wi-Fi Motherboard
Msi MEG X570 Unify Wi-Fi Motherboard
Out Of Stock
Msi MEG X570 Unify Wi-Fi Motherboard
Msi MEG X570 Unify Wi-Fi Motherboard
Msi MEG X570 Unify Wi-Fi Motherboard
Msi MEG X570 Unify Wi-Fi Motherboard
Msi MEG X570 Unify Wi-Fi Motherboard
  • Stock: Out Of Stock
  • Model: MEG-X570-UNIFY
  • SKU: TLG-002434
  • EAN: 4719072678661
Rs.28,899.00
Ex Tax: Rs.24,490.68

Msi MEG X570 Unify Wi-Fi Motherboard

Features

Unify your power and join the dark side. Win games and set records with 12+2+1 IR digital power, All-Metal Extended Heatsink, Triple Lightning M.2 with Shield Frozr, Audio Boost HD, Game Boost and 2.5G Gaming LAN plus WIFI 6 solution.

  • Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
  • Supports DDR4 Memory, up to 4600+(OC) MHz
  • Aluminum Cover with Extended Heatsink: All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.
  • Lightning Fast Game Experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
  • 2.5G Gaming LAN with Latest Wi-Fi 6 Solution: Onboard 2.5G LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.
  • Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
  • Audio Boost HD: Isolated audio with dedicated processor combining ESS audio DAC with amplifier, deliver the breathtaking, game-changing sound to create the most exciting gameplay.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications


ProcessorSupports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
ChipsetAMD X570 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Slots
  • 2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 modes
    • 2nd Gen AMD Ryzen™ support PCIe 3.0 x16/x0, x8/x8 modes
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode)
  • 2x PCIe 4.0/ 3.0 x1 slots
Multi-GPU
  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMDA® CrossFire™ Technology
Storage
  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (M2_2/ M2_3, Key M)
    • Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s
    • Support 2242/ 2260 /2280 storage devices
  • 1x M.2 slot (M2_1, Key M)
    • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
    • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
    • Supports 2242/ 2260 /2280/ 22110 storage devices
RAIDSupports RAID 0, RAID 1 and RAID 10
USB
  • 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
  • 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio
  • 1x Realtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
  • 1x Realtek® ALC4050H Codec
    • Supports S/PDIF output
LAN1x Realtek® RTL8125 2.5 Gbps LAN controller
WiFi & BluetoothIntel® Wi-Fi 6 AX200
  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth 5
  • The Wireless module is pre-install in the M2_4 (Key-E) slot
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 8x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump Fan connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin 5050 RGB LED connector
  • 2x 3-pin ARGB LED connectors
  • 1x 3-pin CORSAIR LED connector
  • 1x Slow mode booting jumper
  • 1x Power button
  • 1x Reset button
Back panel ports
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 4x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports)
  • 1x USB 3.2 Gen 2 Type-C Port
  • 1x 4-pin CPU fan connector
  • 5x 4-pin system fan connectors
  • 1x 4-pin water-pump connector
  • 1x Front panel audio connector
Dimensions
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
Operating SystemSupport for Windows® 10 64-bit
Mounting9 mounting holes
Warranty3 Years
Technical
CHIPSETX570
