- Stock: Out Of Stock

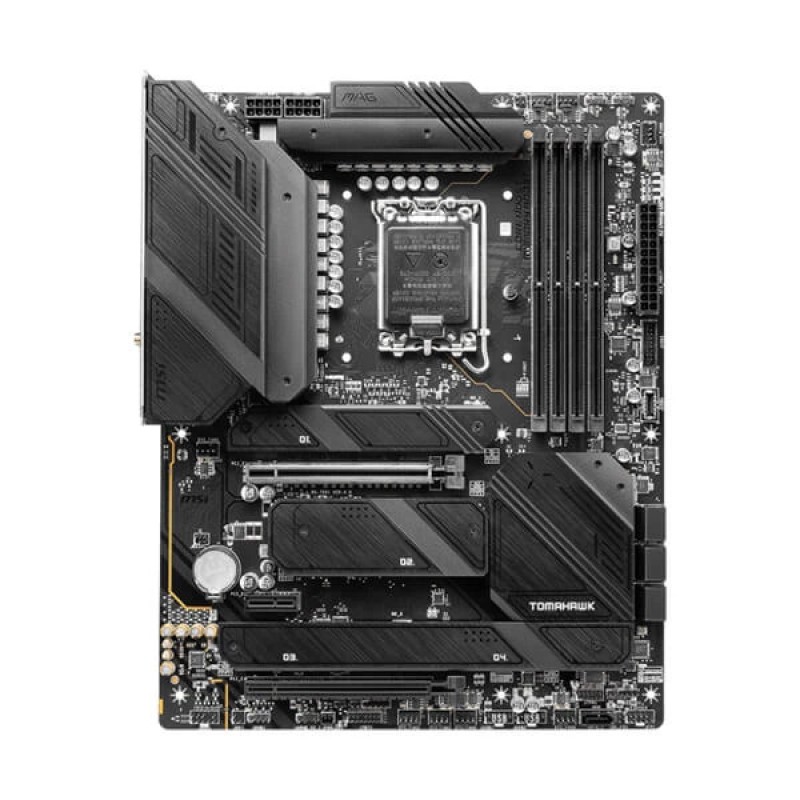

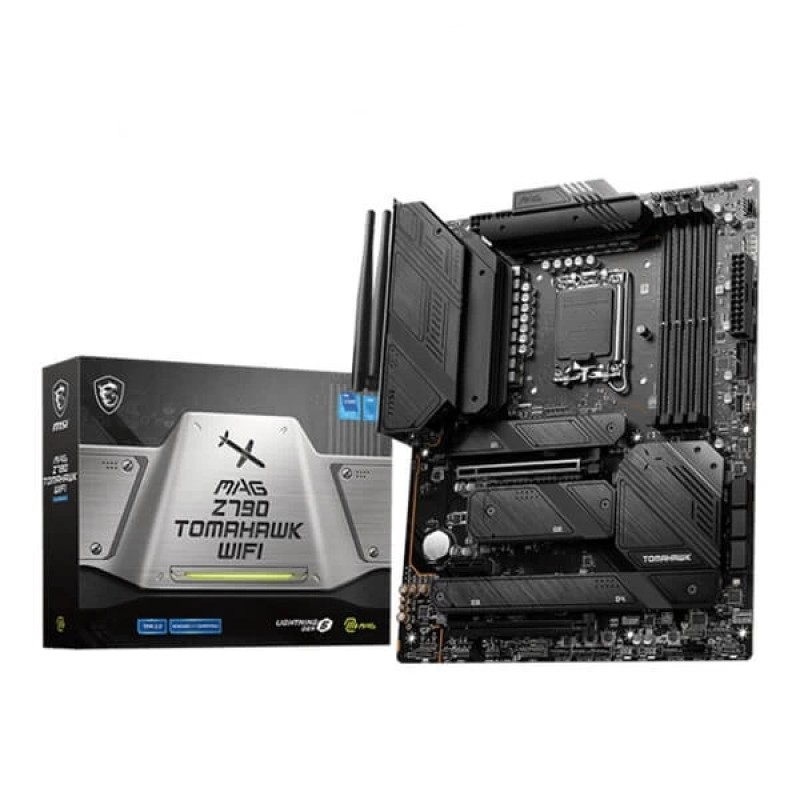

- Model: MAG-Z790-TOMAHAWK-WIFI
- SKU: TLG-003930
More from this brand
Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 7200+(OC) MHz
Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works
AUDIO BOOST 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Specifications:
| Chipset | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Supports Intel® XMP3.0 OC |
| Onboard Graphics | 1x HDMI™ 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
| EXPANSION SLOT | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E Supports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | DisplayPort 1.4 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port, HD Audio Connectors HDMI™ 2.1 Port Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 2x2 20Gbps Type-C Wi-Fi / Bluetooth Antenna Optical S/PDIF OUT |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
| Technical | |
| CHIPSET | Z790 |
