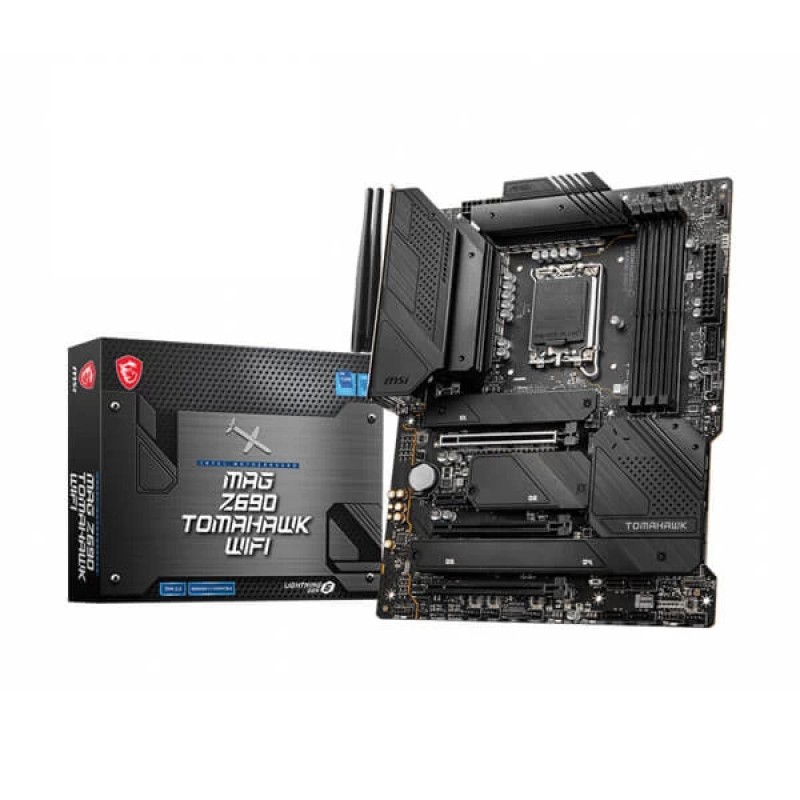

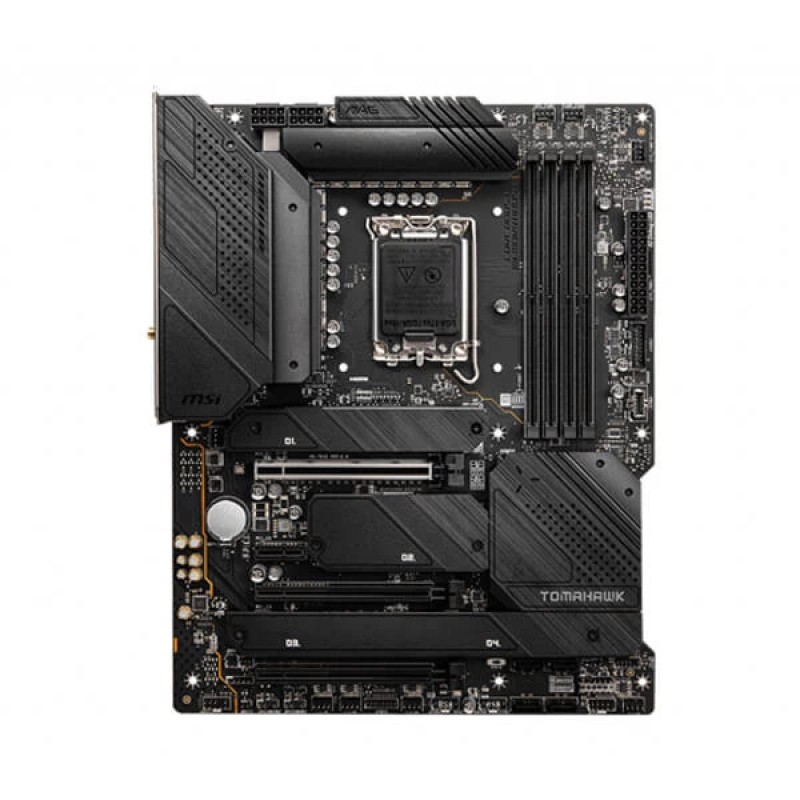

Msi Mag Z690 Tomahawk Wifi

Msi Mag Z690 Tomahawk Wifi
Msi Mag Z690 Tomahawk Wifi
-12 % Out Of Stock
Msi Mag Z690 Tomahawk Wifi
Msi Mag Z690 Tomahawk Wifi
Msi Mag Z690 Tomahawk Wifi
  • Stock: Out Of Stock
  • Model: MAG-Z690-TOMAHAWK-WIFI
  • SKU: TLG-003929
Rs.28,949.00
Rs.32,999.00
Ex Tax: Rs.24,533.05

Supports DDR5 Memory, up to 6400(OC) MHz

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works

2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection

Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe-based SSDs

Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

AUDIO BOOST 5: Reward your ears with the studio-grade sound quality for the most immersive gaming experience

Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Specifications:


Processor

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors

1 Processor socket LGA1700

Please go to msi.com to get the newest support status as new processors are released.

ChipsetIntel® Z690 Chipset
Memory
  • 4x DDR5 memory slots, supporting up to 128GB
  • Supports 1R 4800 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5400+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz

Supports Intel® XMP 3.0 OC

Supports Dual Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory. See supported memory

Expansion Slot
  • 3x PCIe x16 slots
  • PCI_E1 (From CPU)
  • Support up to PCIe 5.0 x16
  • PCI_E3 (From Z690 chipset)
  • Support up to PCIe 3.0 x4
  • PCI_E4 (From Z690 chipset)
  • Support up to PCIe 3.0 x1
  • 1x PCIe 3.0 x1 slot (From Z690 chipset)
Multi-GPUSupports AMD® CrossFire™ Technology
Onboard Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Storage

6x SATA 6Gb/s ports (From Z690 chipset)

4x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports up to PCIe 4.0 x4

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (From Z690 chipset)

Supports up to PCIe 4.0 x4

Supports 2242/ 2260/ 2280 storage devices

M2_3 slot (From Z690 chipset)

Supports up to PCIe 3.0 x4

Supports up to SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_4 slot (From Z690 chipset)

Supports up to PCIe 4.0 x4

Supports up to SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset

Supports Intel® Smart Response Technology for Intel Core™ processors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel® Z690 Chipset

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel

4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)

1x USB 2.0 Type-A port on the back panel

Hub-GL850G

5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

Audio

Realtek® ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN1x Intel® I225V 2.5Gbps LAN controller
Wireless LAN & Bluetooth®

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2

Internal connectors

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

4x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

1x Tuning Controller connector

LED Feature

1x EZ LED Control switch

1x 4-pin RGB LED connectors

3x 3-pin RAINBOW LED connectors

4x EZ Debug LED

Back panel ports

DisplayPort 1.4

USB 2.0 Port

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI 2.1 Port

Flash BIOS Button

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 2x2 20Gbps

Type-C Optical S/PDIF OUT

Dimensions

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Warranty3 Years
Technical
CHIPSETZ690
