MSI MAG X670E Tomahawk WIFI

MSI MAG X670E Tomahawk WIFI
MSI MAG X670E Tomahawk WIFI
-21 % Out Of Stock
MSI MAG X670E Tomahawk WIFI
MSI MAG X670E Tomahawk WIFI
MSI MAG X670E Tomahawk WIFI
  • Stock: Out Of Stock
  • Model: MAG-X670E-TOMAHAWK-WIFI
  • SKU: TLG-004082
Rs.30,699.00
Rs.38,999.00
Ex Tax: Rs.26,016.10

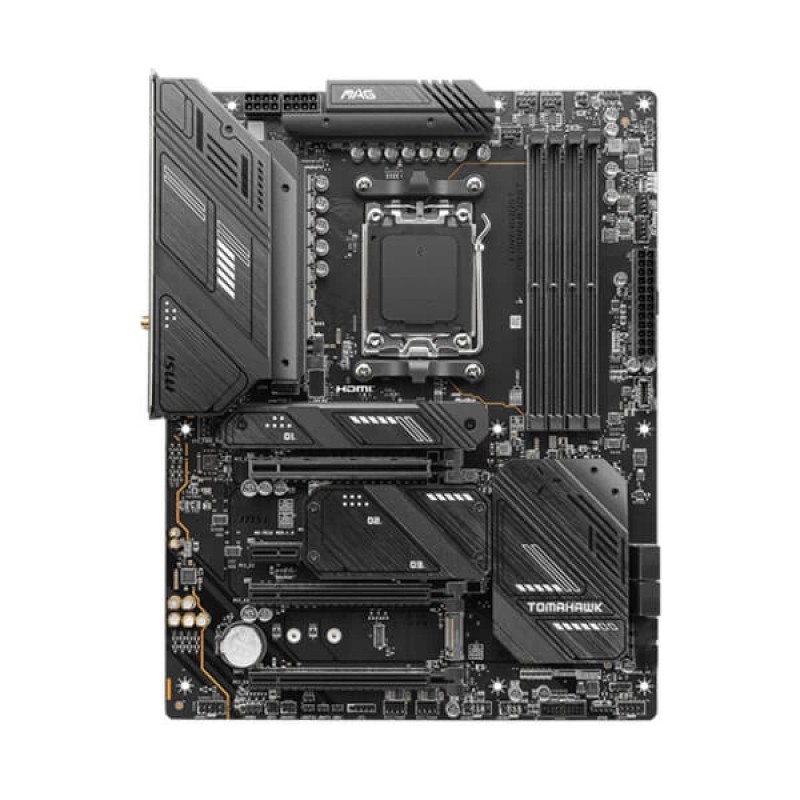

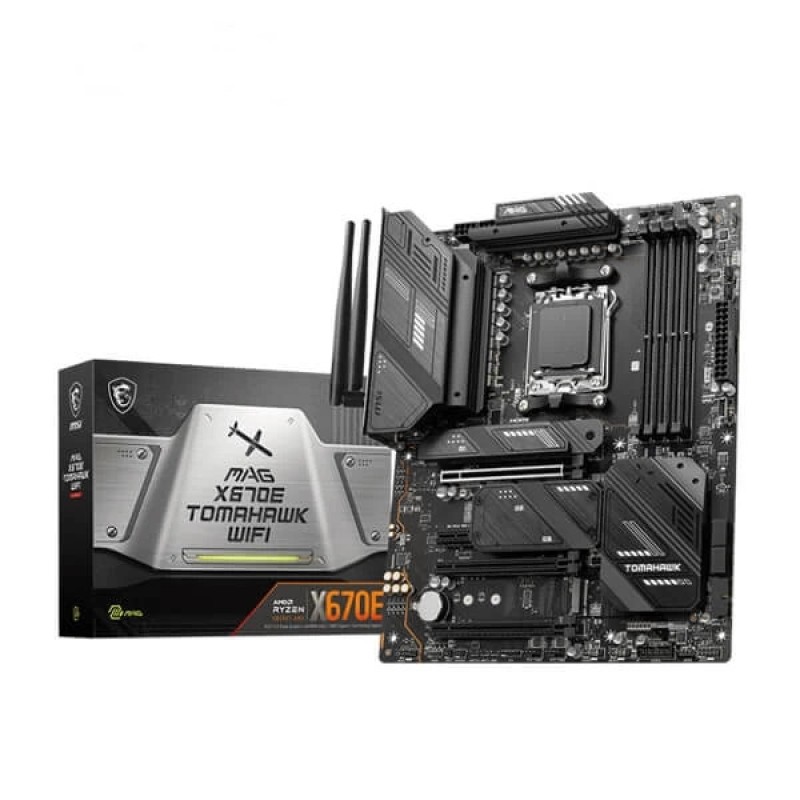

MSI MAG X670E Tomahawk WiFi Gaming Motherboard

-Supports AMD Ryzen 7000 Series Desktop Processors

-Supports DDR5 Memory, up to 6000+(OC) MHz

-Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost

-Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2

-Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works

-AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience

-High-Quality PCB: 8-layer PCB made by 2oz thickened copper and server-grade level material

Specification:


ModelMAG X670E TOMAHAWK WIFI
ChipsetAMD X670
CPU SUPPORTSupports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Memory

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

Onboard Graphics1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
EXPANSION SLOT3x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)
Storage4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 4x USB 3.2 Gen1 Type A (Front)
  • 2x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LANRealtek® RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3

AudioRealtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED FEATURE4x EZ Debug LED
BACK PANEL PORTS
  • DisplayPort
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 5Gbps (Type-A)
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-C Display port)
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
  • S/PDIF-Out
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)ATX
243.84mmx304.8mm
Warranty3 Years
